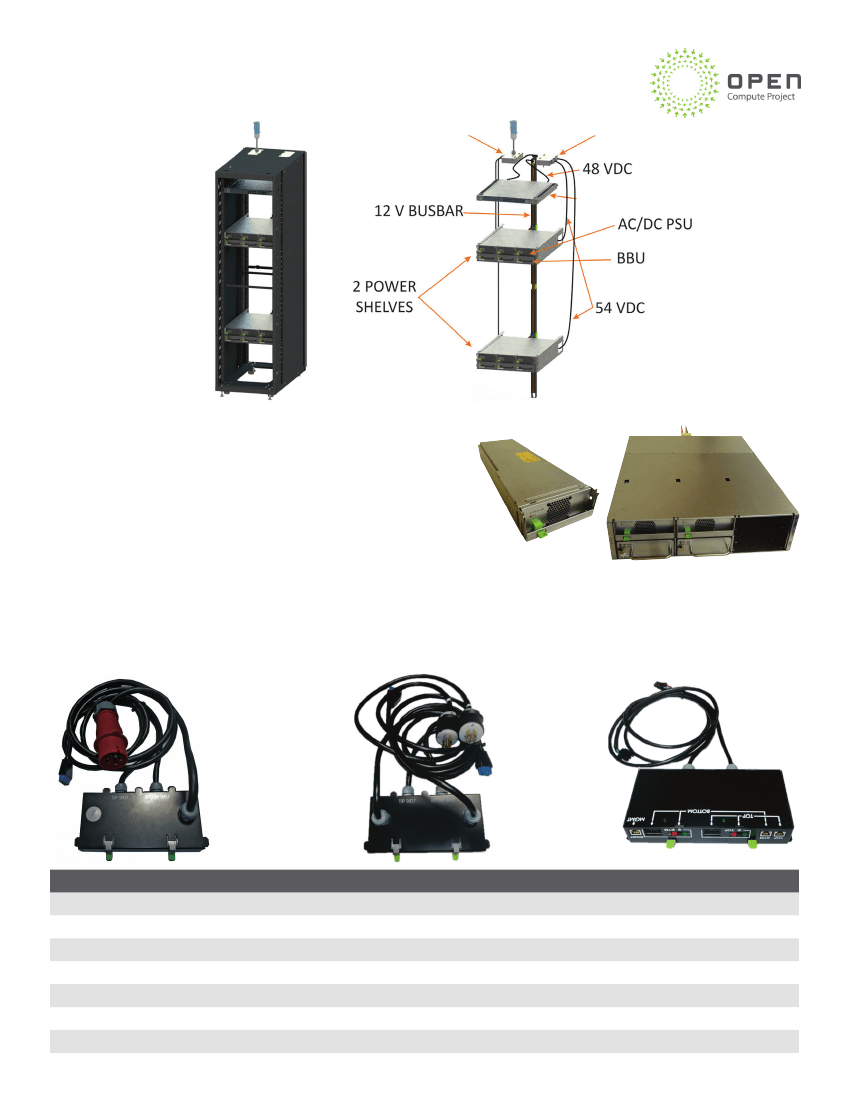

Open Compute V2 Power Shelf & V2 Power Module
Bel Power Solutions 6600 W stand-alone V2 Power Shelf is powered from three-phase AC line, hosting three 3300 W
(N + 1) hot-swappable single-phase V2 Power Modules.
AC 3 Phase In
AC PDU
DC PDU
ToR SWITCH
Features & Benefits
•
•
•
•
•
•
•
•
•
•
•
•
Titanium Efficiency > 95.9 % @ 277 Vac, 50% load
High Power quality (Power Factor and THD)
Redundant (2+1) output 6600 W / 12.6 Vdc with active current sharing
Redundant (2+1) auxiliary output 600W / 54 Vdc
Houses 3 x 3300W power supply units (PSU)
Houses 3 x 3600W Lithium Ion Battery back-up units (BBU)
52.5 V input battery back-up / charger for lithium Ion battery pack
3-Phase 200 Vac - 277 Vac Input to shelf
Hot-plug capable
Digital control for improved performance
RS485 communication interface for control, programming & monitoring
Status LED with fault signaling
240 Vac Power Distribution Unit
AC Distribution YSD.00152 EU
277 Vac Power Distribution Unit
AC Distribution YSD.00162 US
DC-DC Distribution Unit
DC-DC Distribution YSD.00134
NA, 277/480
Bel P/N
Input Voltage
Surge Circuit
Input Plug Type
Connector
Wire Gauge
Style
YSD.00162
277/480, 3P5W
Yes
L22-20P
HBL2521
12 AWG
2 in / 2 out
EU, 240/415
YSD.00152
240/415, 3P5W
Yes
IEC-309
NA, 208
YSD.00217
208, 3P4W
No
L21-30P
HBL2811
NA, 277 CS
YSD.00219
277, 1P3W
No
L7-20P
HBL2331
12 AWG
1 in / 1 out
NA, 277 30A
YSD.00218
277/480, 3P5W
Yes
L22-30P
HBL2821
10 AWG
1 in / 2 out
DC PDU
YSD.00134
54Vdc
No
N/A
10 AWG
1 in / 2 out
10 AWG
2 in / 2 out
14 AWG
0 in / 2 out

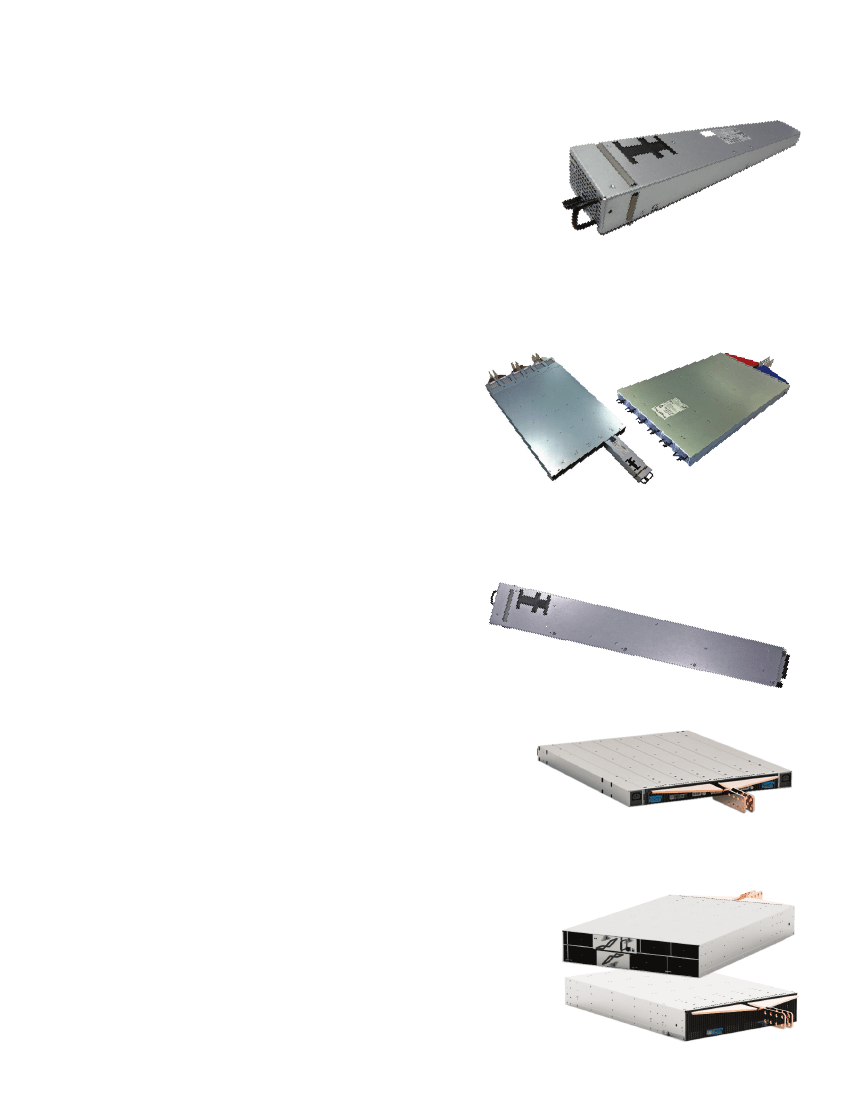

3 kW Platinum & Titanium Efficiency Power Modules (AC-DC)
Converts 90-300 Vac main power into a main output of 12 Vdc for powering intermediate bus architectures (IBA) in high performance and reliability
servers, routers & network switches.
Features & Benefits
•
•
•
•
•
•
•
•
Platinum+ Grade Efficiency
Input Voltage Range: 90 to 300 Vac, 240 to 400 Vdc
Rated Power: 3000W (Vin > 180 Vac, Vin > 192 Vdc), 1400 W (Vin > 90 Vac)
Standby Output (always present): 12 V / 5.0A
Hold-up Time: _ 12 msec
>
Communication: Physical Layer I
2
C, Protocol Layer PMBus™
Redundant Operation: Analog Current Share (244 A Ishare voltage = 8 V)
Form Factor: 1U x 69 x 555 mm
SPSPFE3 Power Shelves
SPSPFE3 power shelves provide rectification, system management, power distribution while maintaining high reliability & offering flexibility for future expansion.
Features & Benefits
•
•
•
•
•
•
•
•
Three versions of power shelf available:
- EU: SPSPFE3-02G: 3-phase 400/480 Vac line to line input with Neutral line
- US: SPSPFE3-03G: 3-phase 208 Vac line to line input, without Neutral line
- EU: SPSPFE3-04G: 3-phase, 400 Vac line to line input with Neutral line
Holds six 3 kW power modules in either 5+1 or 3+3 configurations
AC input at the rear
I²C communication with I
2
C Multiplexer
+12 VSB output at the rear with:
- three sets of busbar blades for SPSPFE3-02G / SPSPFE3-03G
- one set of busbar blades for SPSPFE3-04G
Form Factor: 46.5 x 436 x 650 mm
Adaptor mouning brackets available: 19’’ or 21’’
Compatible with the Open Compute rack design
3 kW DC/DC Front End
I²C communication interface for control, programming and monitoring with PMBus™ protocol front to back airflow
Features & Benefits
•
•
•
•
•
•
High efficiency >95%
Wide input range: 39-72 Vdc
12.3 Vdc Output (244 A) / 12 Vdc Standby (2 A)
Parallel operation with active analog current sharing
Full digital controls for improved performance
Small/Slim form factor: 79 x 42 x 555 mm
1 OU / 15 kW N+1 DC/DC Shelf + Controller
The 6-position single busbar shelf
Features & Benefits
•
•
•
•
•
•
•
6 x 3000 W DC/DC power-modules
Shelf compatible to OCP standard (534 mm wide)
Height = 46 mm < 1 OpenU
Single-Busbar as in OCP V2
400 A Input DC connector: TBD
Hot Swap controller with Ethernet communication (RJ45)
CAN bus I/O on the back of the shelf in order to communicate with BBU (2xRJ45)
BBU Shelf
•
•
•
•
•
•
•
•
Shelf provides 12 V backup power during AC outage
Features & Benefits
15 kW (+ 5 kW) full load for 60 s (battery EOL)
Includes 4 BBU and 4 Charger/Dischargers
Battery is fully isolated from 12 V busbar for maximum reliability
All modules are hot-swappable-Senses optionally AC lines for faster AC outage detection
The shelf includes automatic life battery test diagnostic with EOL signal
A controller with Ethernet communication (on front panel) is included in theshelf (optional)
Isolated CAN bus / PMBus available on the back of the shelf
This BBU shelf independently works in conjunction with any power solution installed in the open rack
About Bel High Power Solutions
Bel Power Solutions provides leading OCP power conversion modules
and shelves. The Bel Power Shelves provide rectification, system
management and power distribution, while maintaining high reliability
and offering flexibility for future expansion. We contiunue to push for
leading edge power solutions for OCP IT-Racks to Datacenters.
Bel Power Solutions is certified to both ISO9001 as well as ISO14001.
