52745-0633: DescriptionFFC & FPC Connectors 0.5 FPC ZIF 6Ckt Sn-Ag-Bi; CategoryThe connector The connector; File Size25KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

52745-0633 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	52745-0633	-	-	View	Buy Now

52745-0633 Overview

FFC & FPC Connectors 0.5 FPC ZIF 6Ckt Sn-Ag-Bi

52745-0633 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	FITTING NAIL
body width	0.079 inch
subject depth	0.169 inch
body length	0.358 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Insulation resistance	50000000 Ω
Insulator color	WHITE
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

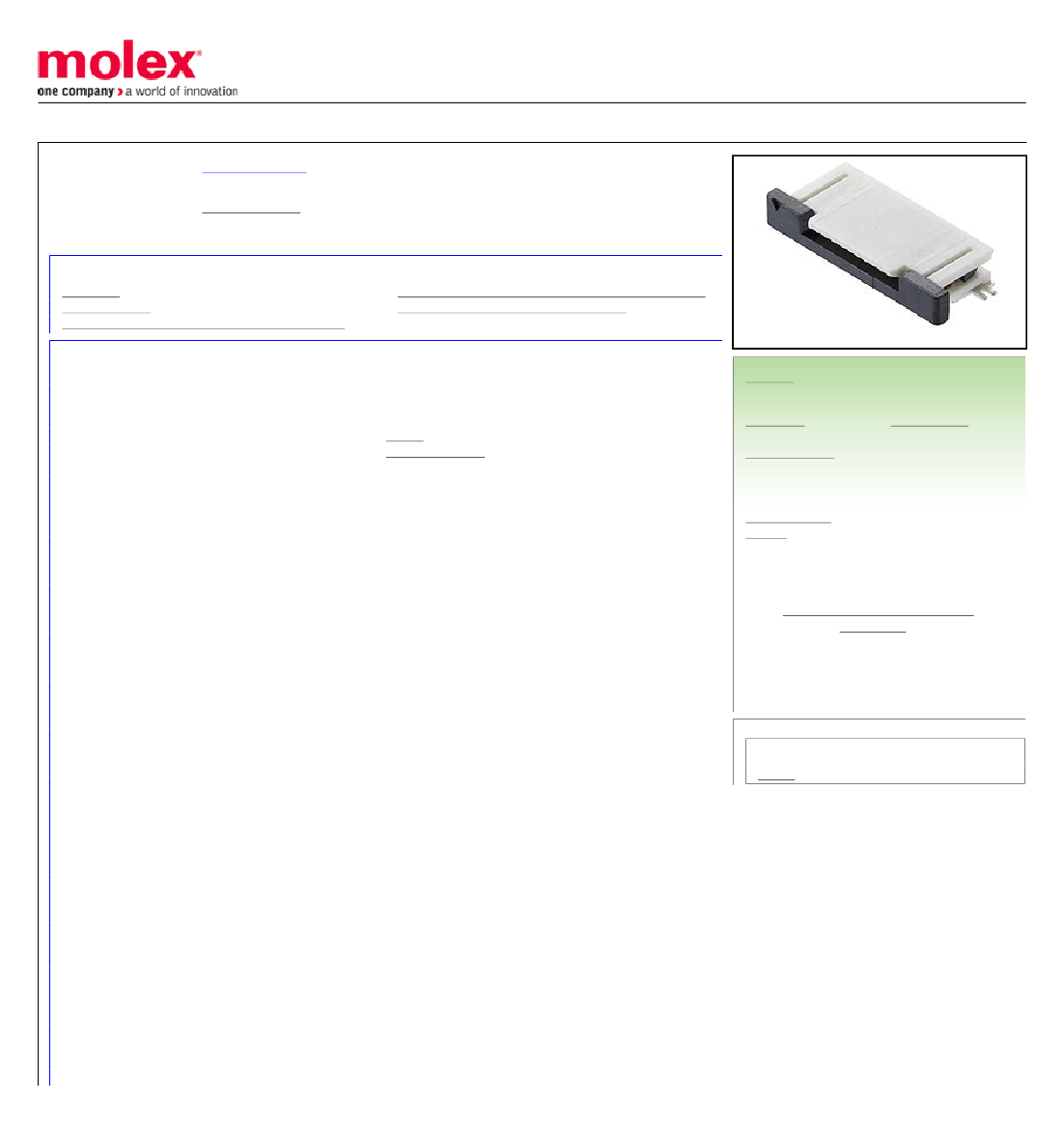

Preview

Download Datasheet

View All

This document was generated on 02/28/2018

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0527450633

Active

FFC-FPC (SMT)

0.50mm Pitch Easy-On FFC/FPC Connector, Right Angle, Surface Mount, ZIF, Top

Contact Style, 6 Circuits, High Barrier Packaging

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52745-052-001 (PDF)

Agency Certification

General

Product Family

Series

Overview

Product Name

Type

UPC

Physical

Circuits (Loaded)

Color - Resin

Contact Position

Durability (mating cycles max)

Entry Angle

Flammability

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Packaging Specification SPK-52745-002-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

E29179

FFC/FPC Connectors

52745

FFC-FPC (SMT)

Easy-On

Slider

887191284217

Black, White

Top

90° Angle

94V-0

2.00mm

Phosphor Bronze

Silver, Tin-Bismuth

Nylon

123.330/mg

Right Angle

2.00mm

Yes

Embossed Tape on Reel

0.50mm

Yes

-40°C to +85°C

Surface Mount

FFC/FPC

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/01/2018 (15

January 2018)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

52745 Series

SPK-52745-002-001

PS-52745-052-001

52745-0633 Related Products

	52745-0633	0527450633
Description	FFC & FPC Connectors 0.5 FPC ZIF 6Ckt Sn-Ag-Bi	FFC & FPC Connectors .5MM FPC/ZIF REC 06P RA SMT
Is it Rohs certified?	conform to	conform to
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	PHOSPHOR BRONZE
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	1	1
Terminal pitch	0.508 mm	0.5 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	6	6
Base Number Matches	1	1
