502046-4070: DescriptionHeaders & Wire Housings 1.25 W/B R/A Rec 40C kt EmbsTp Pkg; CategoryThe connector The connector; File Size26KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

502046-4070 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	502046-4070	-	-	View	Buy Now

502046-4070 Overview

Headers & Wire Housings 1.25 W/B R/A Rec 40C kt EmbsTp Pkg

502046-4070 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Board mount options	FITTING NAIL
body width	0.295 inch
subject depth	0.346 inch
body length	1.144 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Insulation resistance	100000000 Ω
Insulator color	NATURAL
insulator material	POLYAMIDE
Manufacturer's serial number	502046
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	4u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
Base Number Matches	1

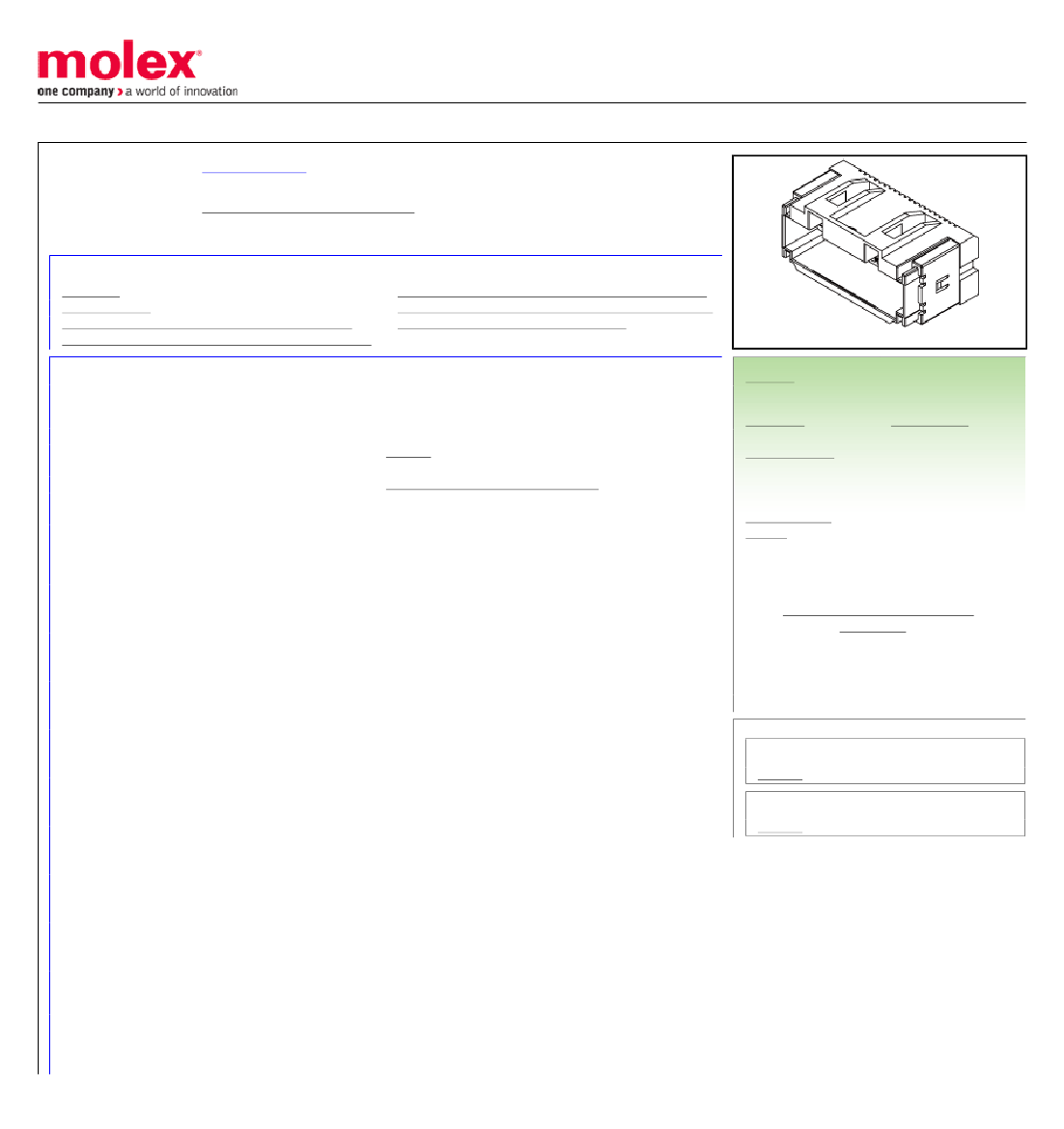

Preview

Download Datasheet

View All

This document was generated on 08/29/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

5020464070

Active

Duo-Clasp™ Wire-to-Board System

1.25mm Pitch Duo-Clasp™ Wire-to-Board PCB Receptacle, Dual Row, Right Angle,

0.10µm Gold (Au) Plating, 40 Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-501931-002-001 (PDF)

Application Specification AS-503110-001-001 (PDF)

Agency Certification

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Application Specification AS-503110-002-001 (PDF)

Packaging Specification SPK-502046-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

E29179

PCB Receptacles

502046

Signal, Wire-to-Board

Duo-Clasp™ Wire-to-Board System

Duo-Clasp™

822350606196

Natural

Yes

7.85mm

Copper Alloy

Gold

Tin

Polyamide

1674.880/mg

Right Angle

Yes

Embossed Tape on Reel

1.25mm

0.100µm

1.000µm

Yes

-25°C to +85°C

Surface Mount

1.0A

50V AC (RMS)/DC

Search Parts in this Series

502046 Series

Mates With

503110 Crimp Housing
