Part Number

Search

72975

Description
RF Terminators SMA PLUG 5O OHM TERMINATION
CategoryThe connector
File Size547KB,1 Pages
ManufacturerPomona
Environmental Compliance
Download Datasheet Parametric View All

72975 Online Shopping

Suppliers Part Number Price MOQ In stock
72975 - - View Buy Now

72975 Overview

RF Terminators SMA PLUG 5O OHM TERMINATION

72975 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerPomona
Product CategoryRF Terminators
RoHSDetails
RF SeriesSMA
GenderPlug
Impedance50 Ohms
Maximum Frequency18 GHz
Body MaterialBrass
Body FinishGold
Contact MaterialBrass
Contact PlatingGold
PolarityStandard
PackagingBulk
Factory Pack Quantity5
Unit Weight0.192031 oz

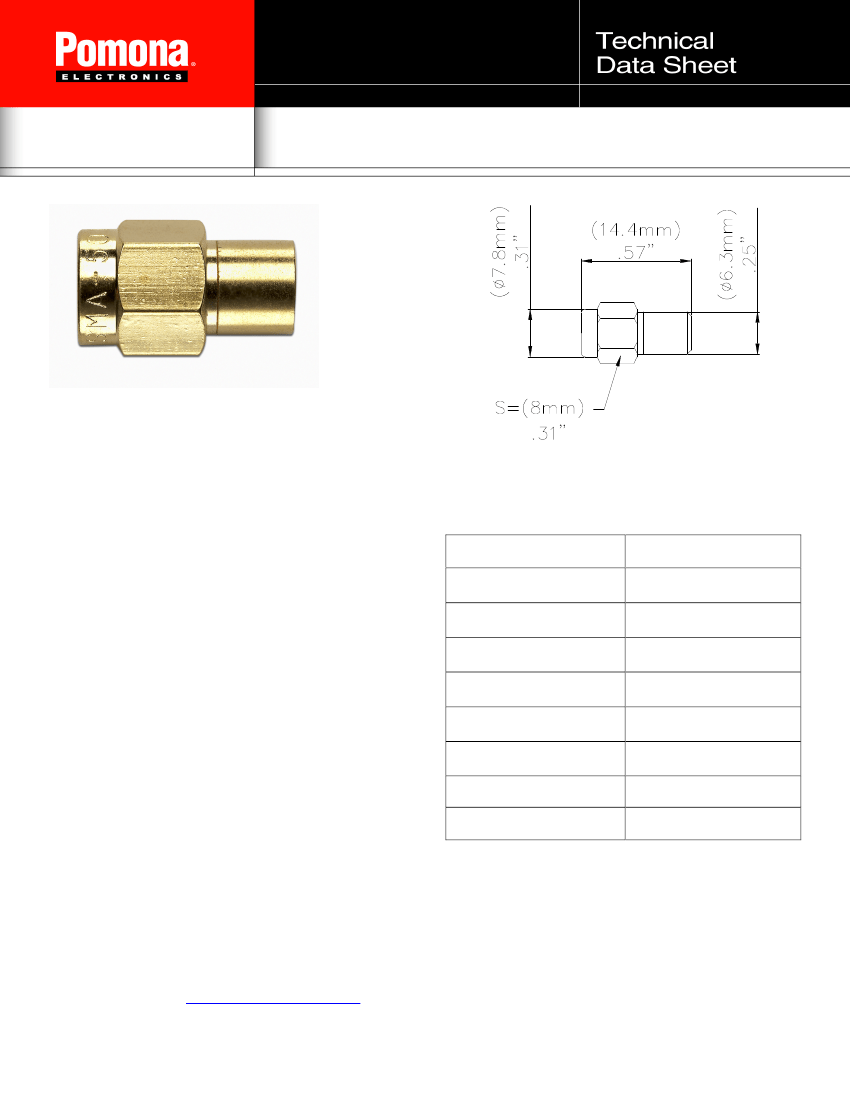

Model 72975 SMA PLUG, 50 OHM TERMINATION
High bandwidth, small size, and
durability for confident
connections
Features
DC - 18 GHz, 1 Watt
Meets MIL-C-39012, IEC 169-15, CECC 22110.
Small size and durability for mobile
communications.
Precision machined and gold-plated for low loss.
Specifications
Impedance
Frequency Range
Working Voltage
Dielectric Withstanding
Voltage
VSWR
Center/Outer Contact
Resistance
Insulation resistance
Power
Temperature Range
50
DC –18 GHz max.
< 500 Vpeak
1,000 Vrms
1.3 max.
0.003/0.002
> 5000 M
1 Watt
-65˚ C to 165˚ C, -85˚ F to
329˚ F
max
Materials
Body is machined brass with gold plating.
Center Contacts - Plug is gold plated brass and
Jack is gold plated Beryllium copper.
Insulators are high quality PTFE.
Crimp Ferrules are copper with gold or nickel
plating.
Gaskets are silicone rubber.
Ordering Information
Model: 72975
Description: SMA PLUG, 50 OHM TERMINATION
USA:
Sales: 800-490-2361
Technical Support:
technicalsupport@pomonatest.com
Fax: 425-446-5844
Europe:
31-(0) 40 2675 150
International:
425-446-5500
Where to Buy:
www.pomonaelectronics.com
All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (.51 mm),
.xxx = ± .005” (.127 mm). All specifications are to the latest revisions.
Specifications are subject to change without notice. Registered trademarks
are the property of their respective companies.
D2003384 REV 001
Copyright © 2007 11/13/2007
Page 1 of 1
