Composite Connector Backshell Adapter For
Helical Convoluted Tubing
Fits MIL-DTL-38999 Series lll & IV Fiber Optic Connectors
Conduit and
Conduit
Adapters
A Thread
2.000
(50.8)
C
G

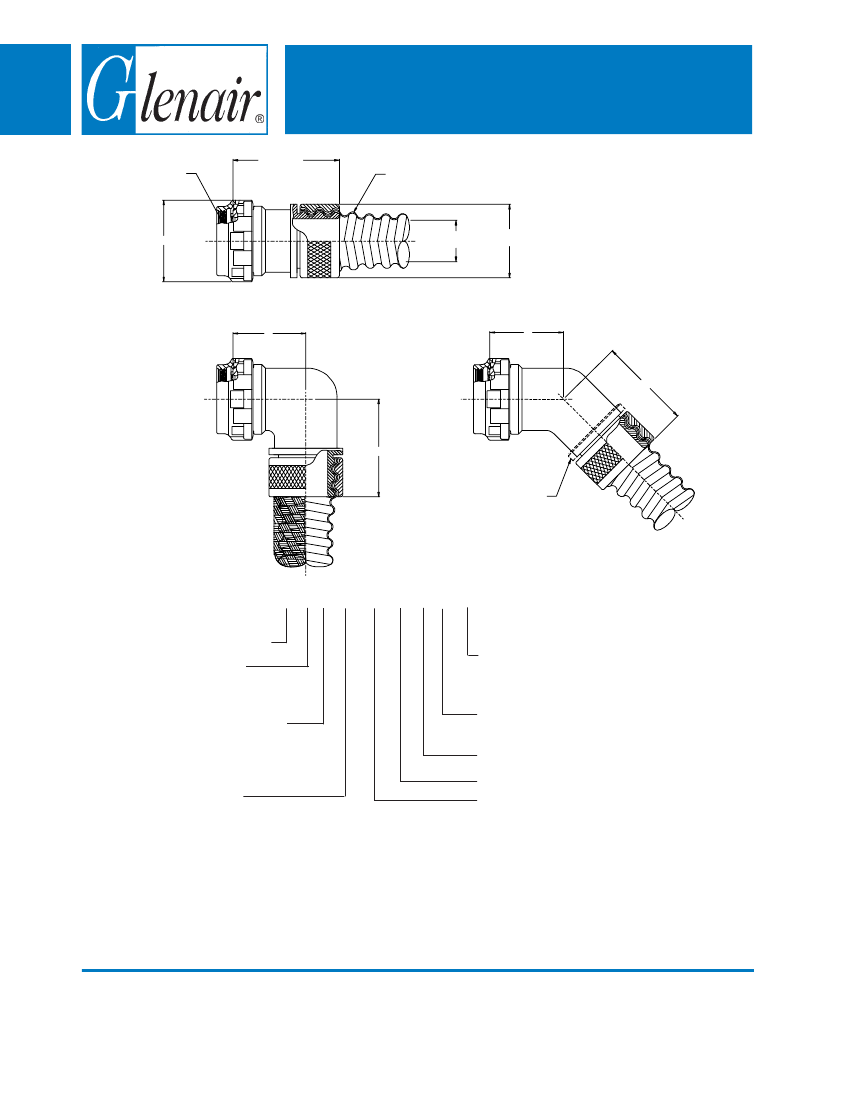

189-038 - Straight, 45
o
and 90
o
120-100 Convoluted Tubing shown for reference only.
For Dacron overbraiding, see Glenair P/N 120-103
Tubing I.D.
J
S - Straight
E
F
W - 90
o
H
T - 45
o
Raised Configuration
189 H S 038 XW 17 16 K - D
Product Series
Connector
Designator (D38999
Series III & IV
Angular Function
S = Straight
T = 45
o
Elbow
W = 90
o
Elbow
Basic Part
Number
D = With Black Dacron
Overbraid (Omit for None)
K = PEEK
(Omit for PFA, ETFE or FEP)
Tubing Size Dash Number (See Table I)
Shell Size (See Table II)
Finish (See Table III)
NOTES:
1. Metric dimensions (mm) are in parentheses and are for reference only.
2. Material:
Adapter, Coupling and Compression Nuts - High-Grade Engineering Thermoplastic.
O-Ring - Fluorosilicone or Silicone.
Anti-Rotation Device: Corrosion Resistant Material.
3. Unless otherwise specified, the backshell body to be supplied finished per Table III.
All other components to be supplied without plating.
© 2002 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-4
Fits MIL-DTL-38999 Series lll Fiber Optic Connectors
189-038 - Straight, 45
o
and 90
o
Dash
No.
06
09
10
12
14
16
20
24
28
32
40
48
TABLE I: TUBING SIZE
J Dia
Conduit
Max
I.D.
.790 (20.1)
.188 (4.8)
.985 (25.0)
.281 (7.1)
.985 (25.0)
.312 (7.9)
1.035 (26.3)
.375 (9.5)
1.100 (27.9)
.437 (11.1)
1.160 (29.5)
.500 (12.7)
1.285 (32.6)
.625 (15.9)
1.480 (37.6)
.750 (19.1)
1.670 (42.4)
.875 (22.2)
1.720 (43.7)
1.000 (25.4)
2.100 (53.3)
1.250 (31.8)
2.420 (61.5)
1.500 (38.1)
SHELL SIZE
H
11
13
15
17
19
21
23
25
E
+ .060 (1.5)
.750
.750
.760
.780
.790
.820
.860
.890
(19.1)
(19.1)
(19.3)
(19.8)
(20.1)
(20.8)
(21.8)
(22.6)
TABLE II: SHELL SIZE
F
G
+ .090 (2.3)
+ .060 (1.5)
.950
1.020
1.050
1.070
1.080
1.110
1.150
1.180
(24.1)
(25.9)
(26.7)
(27.2)
(27.4)
(28.2)
(29.2)
(30.0)
.750
.810
.880
.940
.970
1.060
1.130
1.190
(19.1)
(20.6)
(22.4)
(23.9)
(24.6)
(26.9)
(28.7)
(30.2)
H
+ .090 (2.3)
1.160
1.220
1.290
1.350
1.380
1.470
1.540
1.730
(29.5)
(31.0)
(32.8)
(34.3)
(35.1)
(37.3)
(39.1)
(43.9)
TUBING SIZE
MAX
12
16
20
24
28
32
32
40
TABLE III: FINISH
Symbol
XM
XW
XO
Finish Description
Electroless Nickel
Cadmium Olive Drab over Electroless Nickel
No Plating - Base
Metric dimensions (mm) are in parentheses and are for reference only.
© 2002 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
G-5
