Datasheet> All Categories > The connector> MDT420A02001

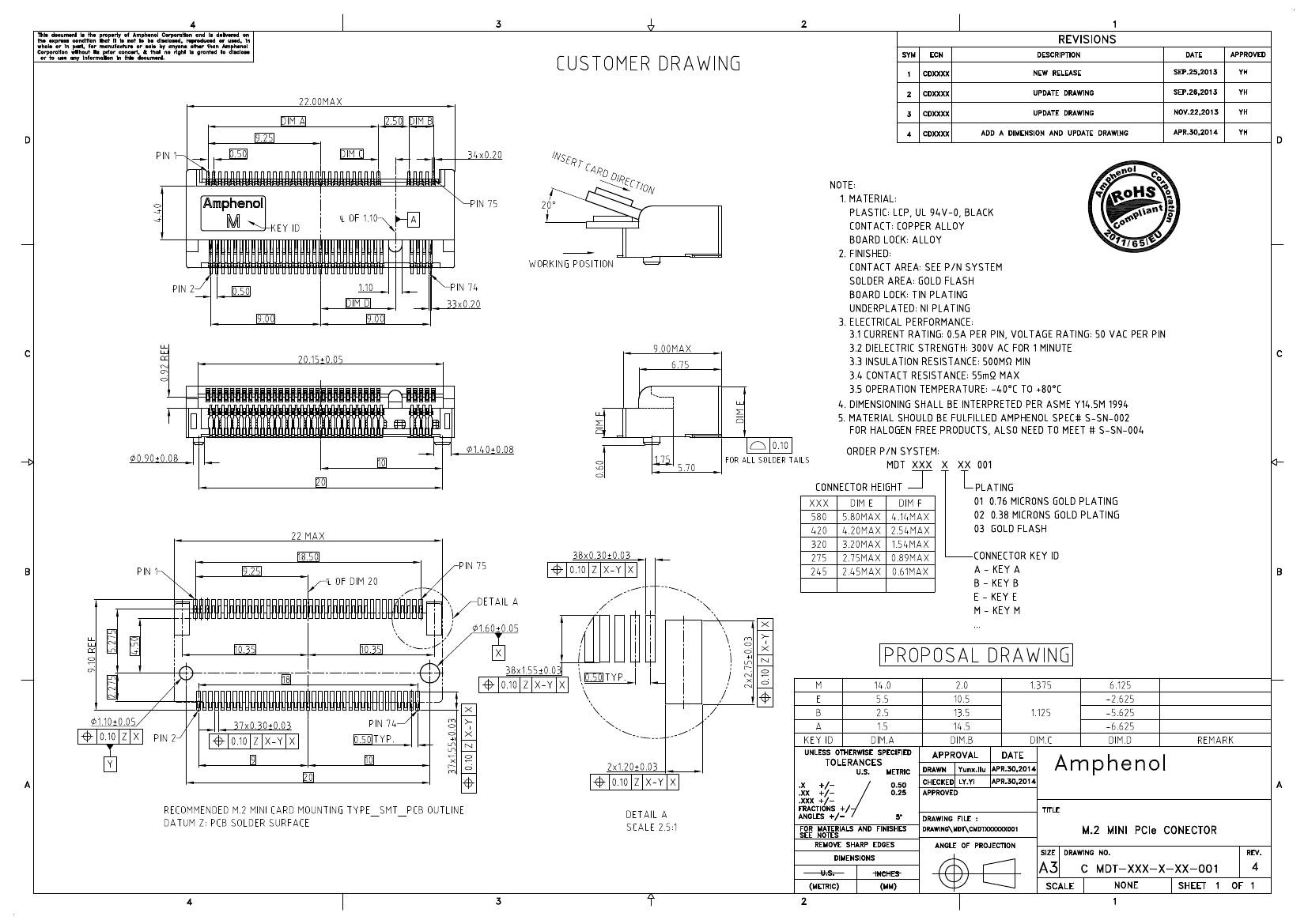

PDF
Preview

MDT420A02001

Description
PCI Express / PCI Connectors 67P SMT RCPT H4.20 A Key, 15u" Au
CategoryThe connector
File Size121KB，1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

MDT420A02001 Online Shopping

Suppliers Part Number Price MOQ In stock
MDT420A02001 - - View Buy Now

MDT420A02001 Overview

PCI Express / PCI Connectors 67P SMT RCPT H4.20 A Key, 15u" Au

MDT420A02001 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerAmphenol
Product CategoryPCI Express / PCI Connectors
RoHSDetails
ProductM.2 (NGFF)
Number of Positions67 Position
Mounting StyleSMD/SMT
Mounting AngleStraight
Termination StyleSMD/SMT
Contact MaterialCopper Alloy
Contact PlatingGold
Current Rating500 mA
Height4.2 mm
Housing MaterialLiquid Crystal Polymer (LCP)
PackagingReel
Voltage Rating50 VAC
Insulation Resistance500 MOhms
Maximum Operating Temperature+ 80 C
Minimum Operating Temperature- 40 C
Factory Pack Quantity4000

Preview

Download Datasheet

MDT420A02001 Related Products

MDT420A02001 MDT420B03001 MDT275E01001 MDT420A03001 MDT420M03001 MDT275A03001 MDT420E02001 MDT275E03001 MDT420B02001 MDT275B01001
Description PCI Express / PCI Connectors 67P SMT RCPT H4.20 A Key, 15u" Au PCI Express / PCI Connectors 67P SMT RCPT H4.20 B Key, G/F PCI Express / PCI Connectors 67P SMT RCPT H2.75 E Key, 30u" Au PCI Express / PCI Connectors 67P SMT RCPT H4.20 A Key, G/F PCI Express / PCI Connectors 67P SMT RCPT H4.20 M Key, G/F PCI Express / PCI Connectors 67P SMT RCPT H2.75 A Key, G/F PCI Express / PCI Connectors 67P SMT RCPT H4.20 E Key, 15u" Au PCI Express / PCI Connectors 67P SMT RCPT H2.75 E Key, G/F PCI Express / PCI Connectors 67P SMT RCPT H4.20 B Key, 15u" Au PCI Express / PCI Connectors 67P SMT RCPT H2.75 B Key, 30u" Au
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol Amphenol
Product Category PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors PCI Express / PCI Connectors
RoHS Details Details Details Details Details Details Details Details Details Details
Product M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF) M.2 (NGFF)
Number of Positions 67 Position 67 Position 67 Position 67 Position 67 Position 67 Position 67 Position 67 Position 67 Position 67 Position
Mounting Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Mounting Angle Straight Straight Straight Straight Straight Straight Straight Straight Straight Straight
Termination Style SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT SMD/SMT
Contact Material Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy Copper Alloy
Contact Plating Gold Gold Gold Gold Gold Gold Gold Gold Gold Gold
Current Rating 500 mA 500 mA 500 mA 500 mA 500 mA 500 mA 500 mA 500 mA 500 mA 500 mA
Height 4.2 mm 4.2 mm 2.75 mm 4.2 mm 4.2 mm 2.75 mm 4.2 mm 2.75 mm 4.2 mm 2.75 mm
Housing Material Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP) Liquid Crystal Polymer (LCP)
Voltage Rating 50 VAC 50 VAC 50 VAC 50 VAC 50 VAC 50 VAC 50 VAC 50 VAC 50 VAC 50 VAC
Insulation Resistance 500 MOhms 500 MOhms 500 MOhms 500 MOhms 500 MOhms 500 MOhms 500 MOhms 500 MOhms 500 MOhms 500 MOhms
Maximum Operating Temperature + 80 C + 80 C + 80 C + 80 C + 80 C + 80 C + 80 C + 80 C + 80 C + 80 C
Minimum Operating Temperature - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C - 40 C
Factory Pack Quantity 4000 4000 4750 4000 4000 4750 4000 4750 4000 4750
Packaging Reel Reel Reel Reel Reel Reel Reel Reel Reel Reel
