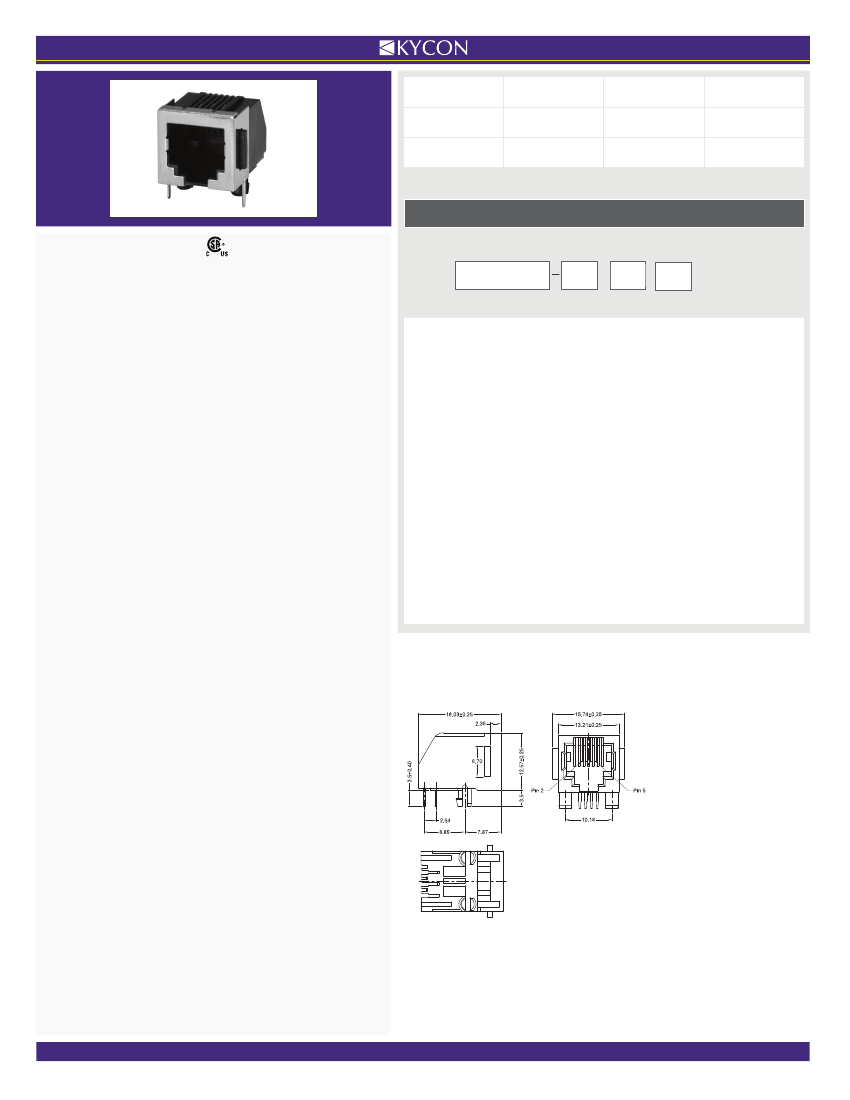

MODULAR JACKS AND PLUGS: GDLX Series
Right Angle Modular Jack
GDLX
Series
A
Shield
Option
64
Positions
& Contacts
Plating
Option
Product Features
Available in SMT and Reflow Compatible
Through Hole Designs
Panel Stops, Shielding and Keying Options Available
Snap-In Board Retention Tabs
CSA/NRTL Certified File No. LR78160
Series
GDLX
- Right Angle Modular Jack PCB Mount
GDLX-SMT
- Surface Mount Version
Shield Options
A
- With Panel Stops, Non-Shielded
N
- Without Panel Stops, Non-Shielded
S
- With Panel Stops, Shielded
Number of Positions / Contacts
64
- 6 Positions / 4 Contacts
66
- 6 Positions / 6 Contacts
88
- 8 Positions / 8 Contacts
Performance Specifications
Materials and Finish
Housing Material
GDLX - PBT Thermoplastic, Glass Filled, UL 94V-0 Rated,
Black Color
GDLX-SMT - High Temperature Thermoplastic,
Reflow Compatible, UL 94V-0 Rated, Black Color
Shield Material
Copper Alloy, Nickel Plated
Contact Material
Phosphor Bronze
Plating Option
Blank
- Gold Flash
50
- 50µ" Gold Plating
Contact Kycon for Keyed and other Options
GDLX Series
GDLX-A-64
Dimensions in mm
Electrical Characteristics
Insulation Resistance
500 Megohms Min.
Dielectric Withstanding Voltage
1000V AC for 1 Minute
Contact Resistance
20 milliohms Max.
Current Rating
1.5A
1.0A (GDLX-SMT)
Voltage Rating
125V DC
