Interface module - FLK-D37 SUB/B - 2283663
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

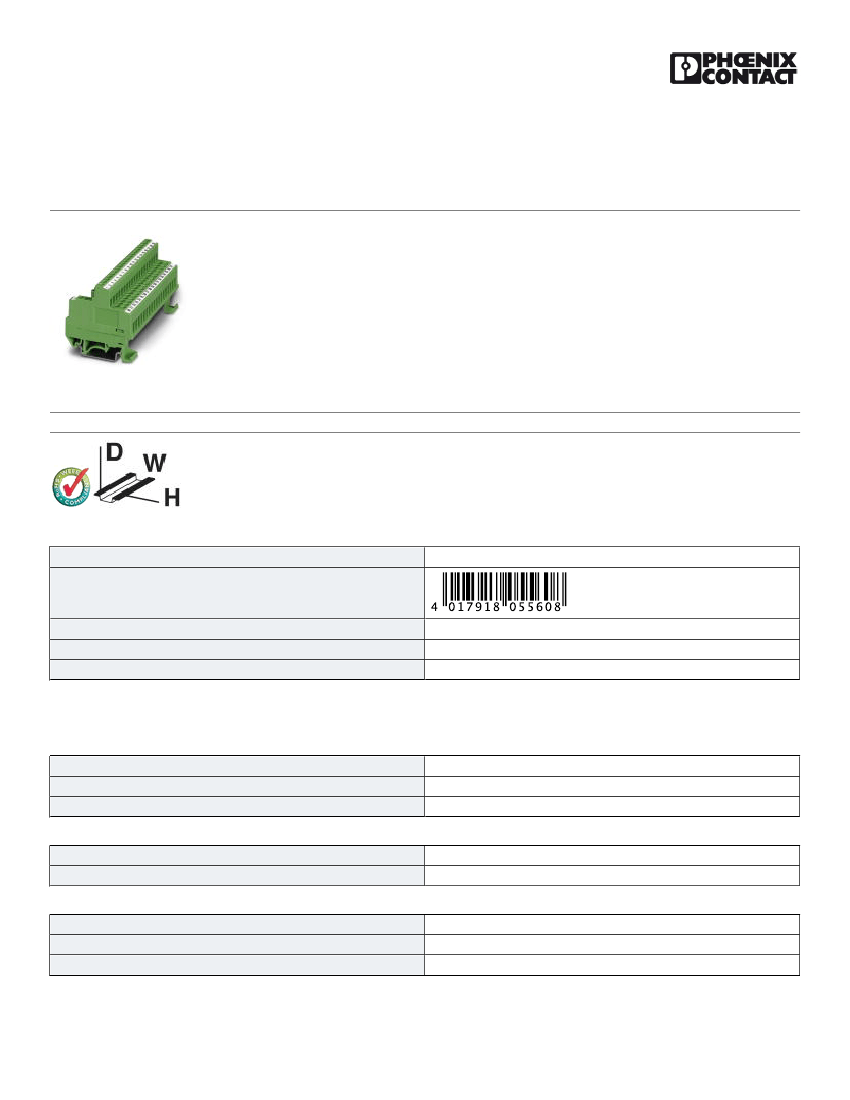

VARIOFACE module, with screw connection and D-Subminiature socket, for mounting on NS 35/7.5 or NS 32,
37-pos. (separate test socket for each channel)
The illustration shows version FLK-
D37 SUB/S
Key Commercial Data
Packing unit
GTIN
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
162.99 g
85369010
Germany
1 pc
Technical data
Dimensions
Width
Height
Depth
96 mm
51.6 mm
51.2 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-25 °C ... 50 °C
-25 °C ... 70 °C
General
Max. perm. operating voltage
Max. perm. current (per branch)
Max. permissible current (all branches)
125 V AC
2.5 A
55 A
04/25/2016 Page 1 / 8
https://www.phoenixcontact.com/us/products/2283663
Interface module - FLK-D37 SUB/B - 2283663
Technical data
General
Number of positions
Mounting position
Standards/regulations
37
any
IEC 60664
DIN EN 50178
IEC 62103
Degree of pollution
Overvoltage category
2
II
Connection data for connection 1
Connection name
Connection in acc. with standard
Connection method
Stripping length
Screw thread
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
IEC / EN
Screw connection
8 mm
M3
0.2 mm² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Standards and Regulations
Standards/regulations
IEC 60664
DIN EN 50178
IEC 62103
Degree of pollution
Overvoltage category
2
II
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27250313
27250313
27250313
27250313
27242608
27141152
ETIM
ETIM 2.0
ETIM 3.0
EC001434
EC001604
04/25/2016 Page 2 / 8
https://www.phoenixcontact.com/us/products/2283663
Interface module - FLK-D37 SUB/B - 2283663
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC001604
EC002780
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211824
39121421
39121421
39121421
39121421

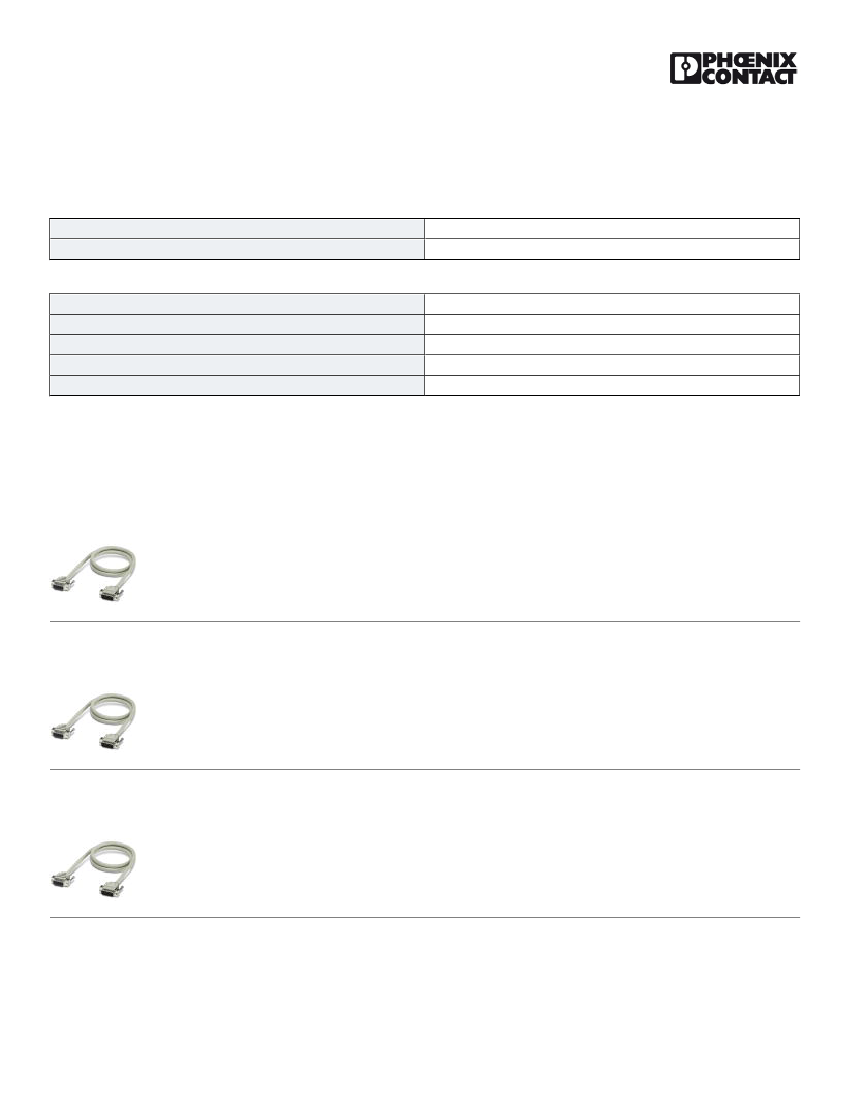

Accessories
Accessories
System cable
Cable - CABLE-D37SUB/B/S/ 50/KONFEK/S - 2302191
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 0.5 m
Cable - CABLE-D37SUB/B/S/100/KONFEK/S - 2302201
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 1 m
Cable - CABLE-D37SUB/B/S/150/KONFEK/S - 2302214
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 1.5 m
04/25/2016 Page 3 / 8
https://www.phoenixcontact.com/us/products/2283663
Interface module - FLK-D37 SUB/B - 2283663
Accessories
Cable - CABLE-D37SUB/B/S/200/KONFEK/S - 2302227
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 2 m
Cable - CABLE-D37SUB/B/S/300/KONFEK/S - 2302230
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 3 m
Cable - CABLE-D37SUB/B/S/400/KONFEK/S - 2302243
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 4 m
Cable - CABLE-D37SUB/B/S/600/KONFEK/S - 2302256
Round shielded cable set, with 37-pos. D-SUB female and male connectors, cable length: 6 m
Cable - CABLE D-SUB-S/.../.../... - 2302340
Shielded round cable, assembled with one D-SUB male and one female connector, variable cable length
04/25/2016 Page 4 / 8
https://www.phoenixcontact.com/us/products/2283663
Interface module - FLK-D37 SUB/B - 2283663
Accessories
Cable - CABLE D-SUB-S-S-S/.../.../... - 2302434
Shielded round cable, assembled with two D-SUB male connectors, variable cable length
Cable - CABLE-D-37SUB/M/OE/0,25/S/0,5M - 2926577
Shielded cable with a 37-pos. D-SUB pin strip and one open end. The individual wires are labeled 1 to 37 and fitted with
ferrules. The braided shield is routed to a separate cable end. Cable length: 0.5 m.
Cable - CABLE-D-37SUB/M/OE/0,25/S/1,0M - 2926580
Shielded cable with a 37-pos. D-SUB pin strip and one open end. The individual wires are labeled 1 to 37 and fitted with
ferrules. The braided shield is routed to a separate cable end. Cable length: 1 m.
Cable - CABLE-D-37SUB/M/OE/0,25/S/1,5M - 2926593
Shielded cable with a 37-pos. D-SUB pin strip and one open end. The individual wires are labeled 1 to 37 and fitted with
ferrules. The braided shield is routed to a separate cable end. Cable length: 1.5 m.
Cable - CABLE-D-37SUB/M/OE/0,25/S/2,0M - 2926603
Shielded cable with a 37-pos. D-SUB pin strip and one open end. The individual wires are labeled 1 to 37 and fitted with
ferrules. The braided shield is routed to a separate cable end. Cable length: 2 m.
