92509-007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 92509-007

92509-007: DescriptionTelecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size330KB，5 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

92509-007 Overview

Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle

92509-007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNT, POLARIZED
body width	0.62 inch
subject depth	0.635 inch
body length	3.275 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN LEAD
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.0008 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e0
MIL compliance	NO
Plug contact pitch	0.085 inch
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
PCB row number	2
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	P-CUSN
Terminal length	0.13 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50

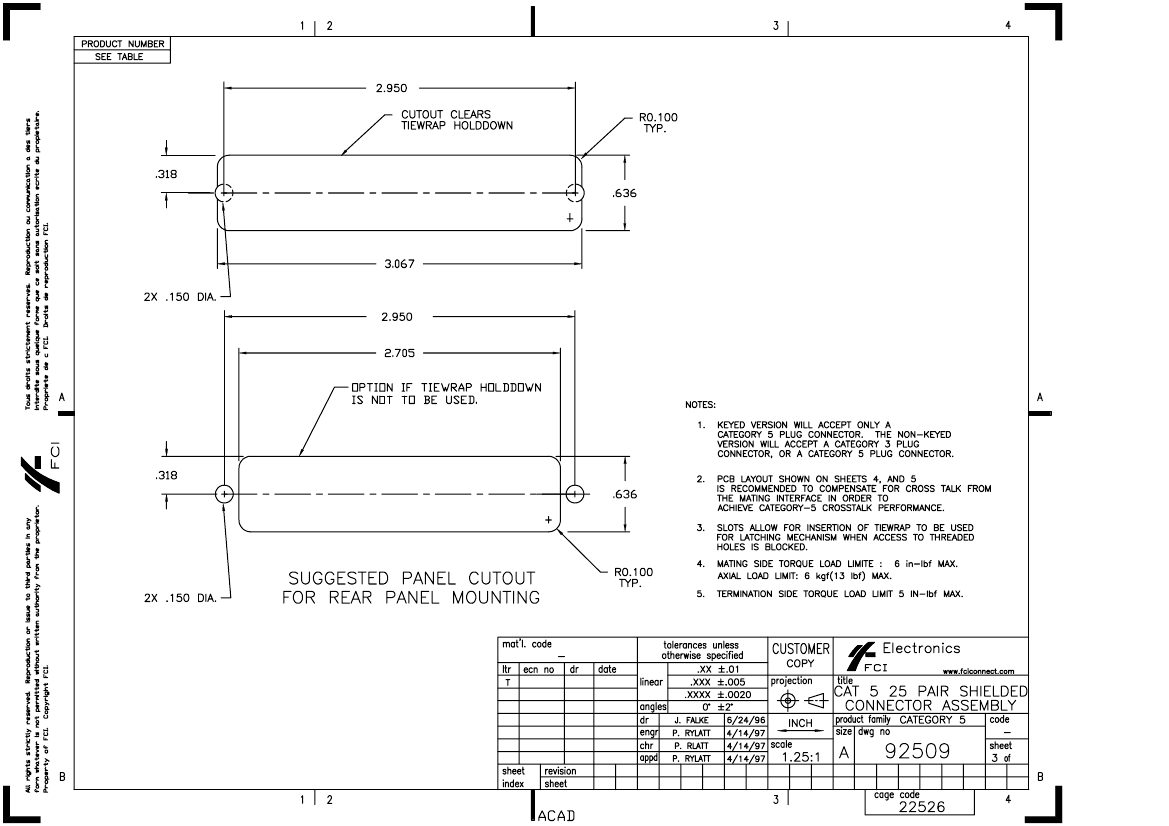

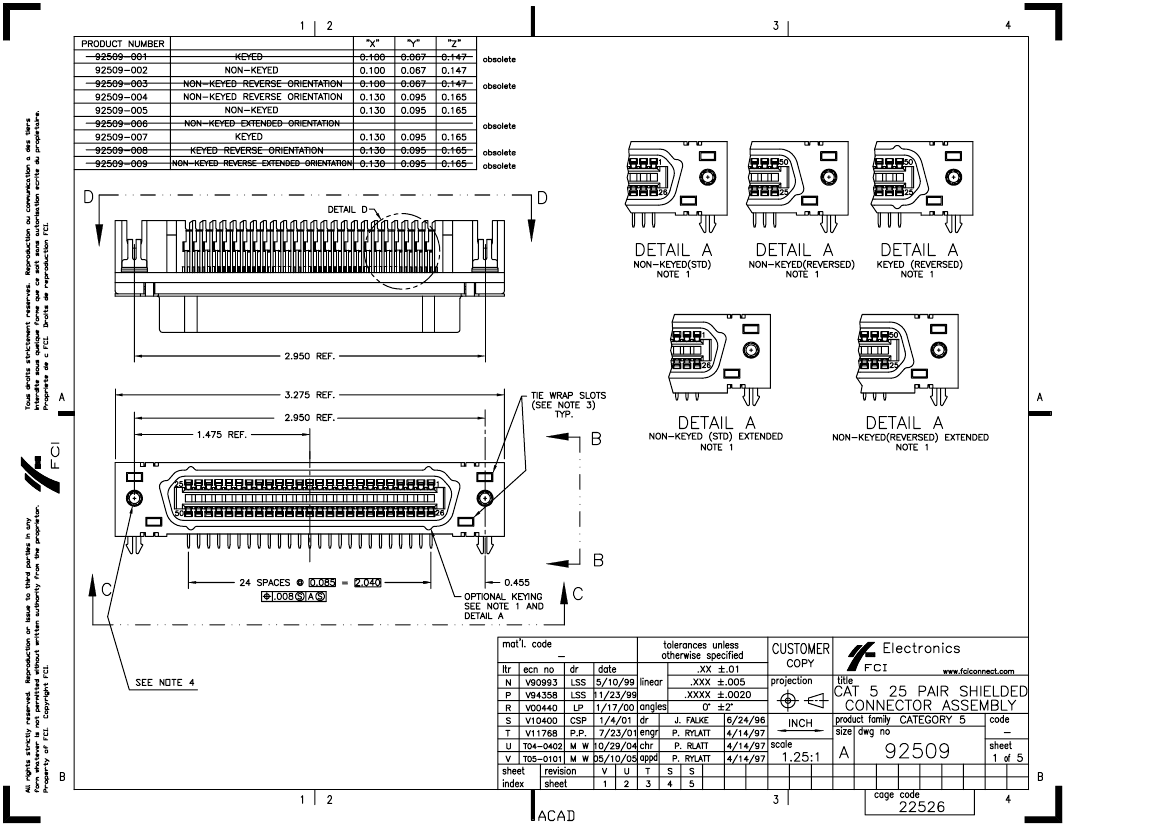

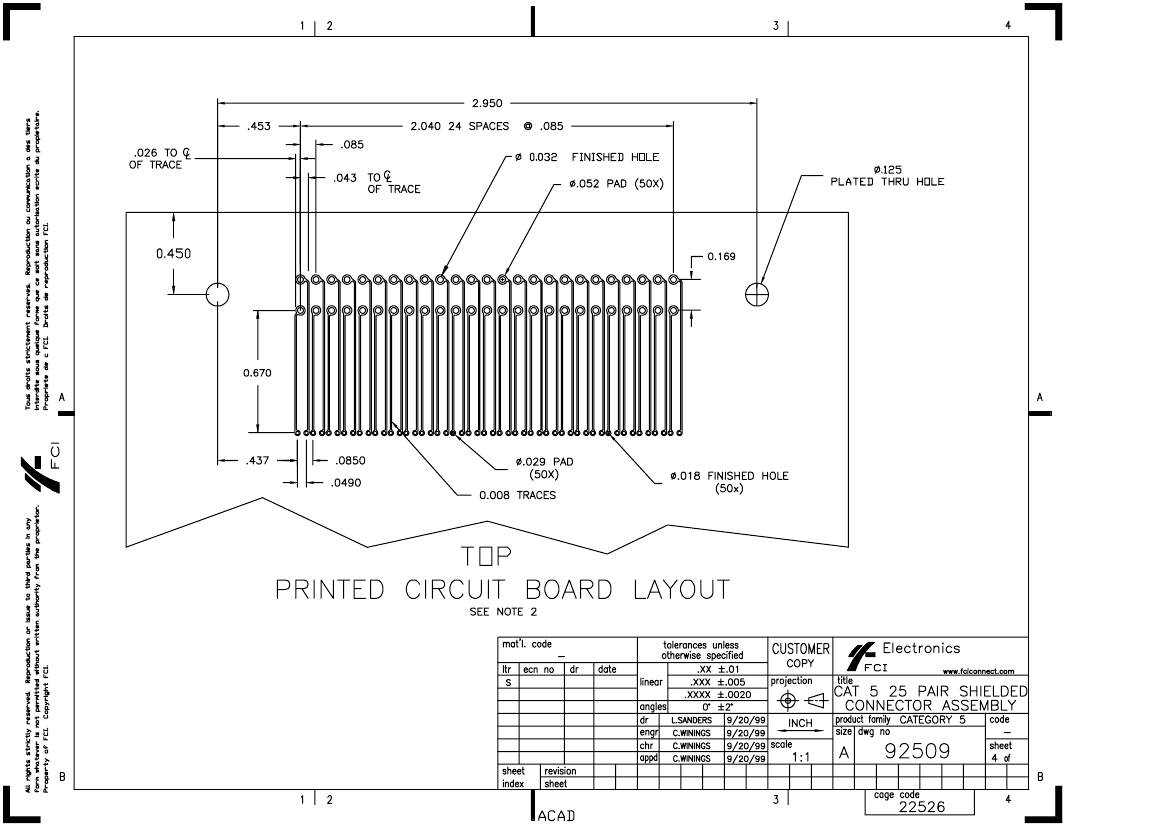

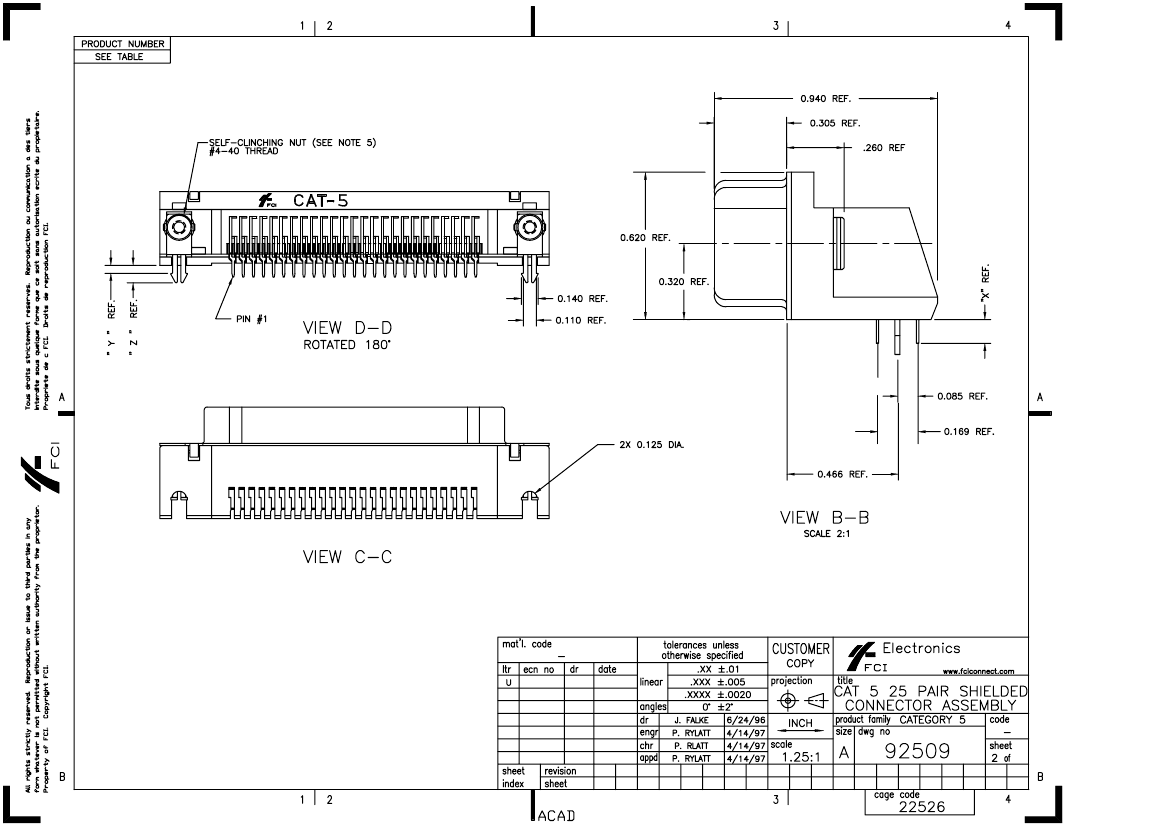

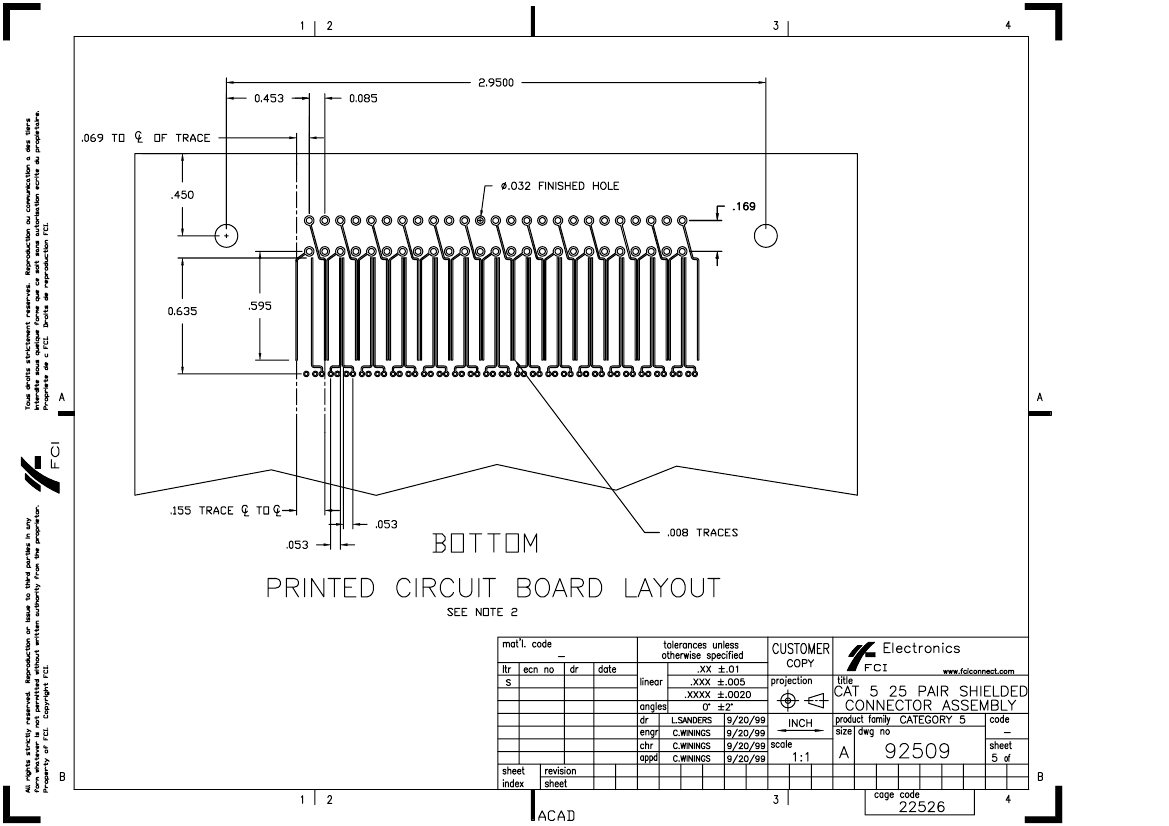

Preview

Download Datasheet

View All

PDM: Rev:V

STATUS:

Released

Printed: Jan 18, 2011

92509-007 Related Products

	92509-007	92509-001	92509-002	92509-003	92509-004	92509-005	92509-006	92509-008	92509-009
Description	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle	Telecom and Datacom Connector, 50 Contact(s), Male, Right Angle, Solder Terminal, #4-40, Receptacle
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	PANEL MOUNT, POLARIZED	PANEL MOUNT, POLARIZED	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT, POLARIZED	PANEL MOUNT
body width	0.62 inch	0.62 inch	0.62 inch	0.62 inch	0.62 inch	0.62 inch	0.62 inch	0.62 inch	0.62 inch
subject depth	0.635 inch	0.635 inch	0.635 inch	0.635 inch	0.635 inch	0.635 inch	0.635 inch	0.635 inch	0.635 inch
body length	3.275 inch	3.275 inch	3.275 inch	3.275 inch	3.275 inch	3.275 inch	3.275 inch	3.275 inch	3.275 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	TIN LEAD	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N	1.0008 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch	0.085 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	CLINCH NUT	CLINCH NUT	CLINCH NUT	CLINCH NUT	CLINCH NUT	CLINCH NUT	CLINCH NUT	CLINCH NUT	CLINCH NUT
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm	4.2926 mm
Plating thickness	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch	30u inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Terminal pitch	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	50	50	50	50	50	50	50	50	50
ECCN code	EAR99	EAR99	-	EAR99	-	-	EAR99	EAR99	EAR99
Terminal length	0.13 inch	0.1 inch	0.1 inch	0.1 inch	0.13 inch	0.13 inch	-	0.13 inch	0.13 inch
