1774853001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1774853001

1774853001: DescriptionBoard Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, HALOGEN FREE; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerWeidmuller; Websitehttp://www.weidmuller.com/; Environmental Compliance

Download Datasheet Parametric View All

1774853001 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal, HALOGEN FREE

1774853001 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	HALOGEN FREE
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	5.08 mm
Termination type	SOLDER
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

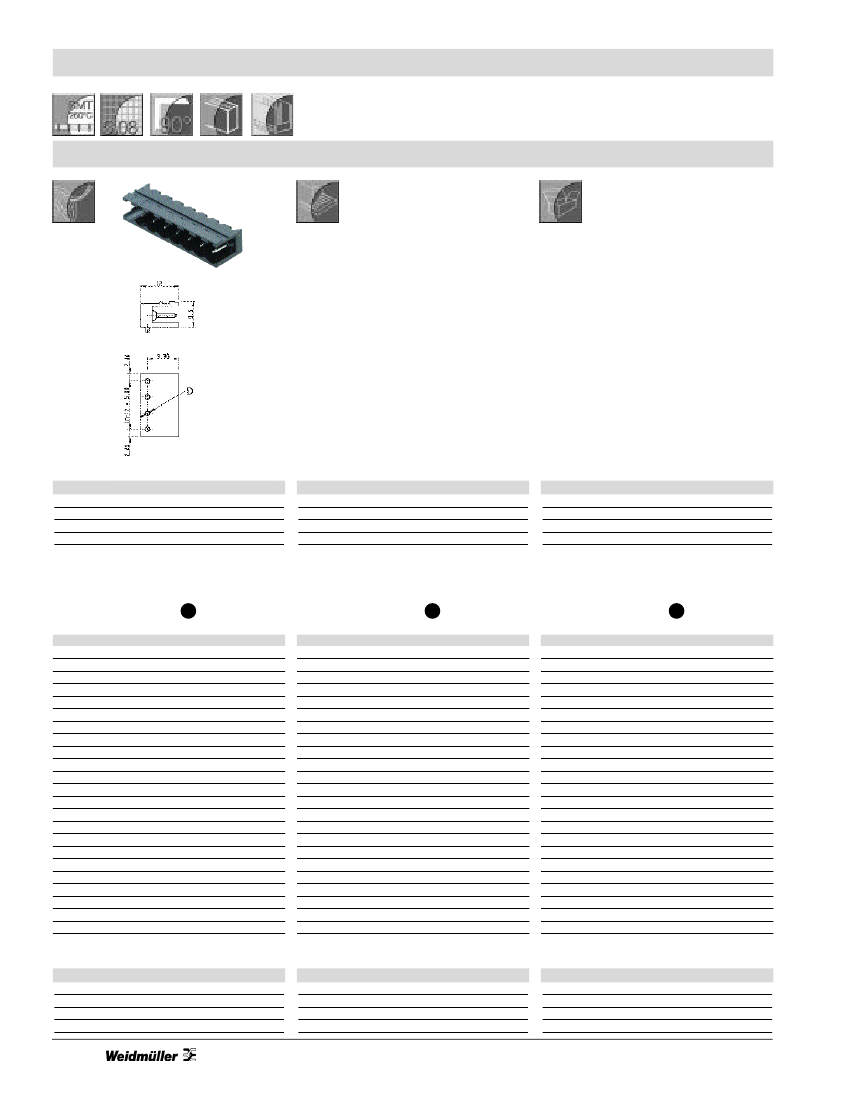

Omnimate Range - 5.08 mm Pitch

Pin headers SL-SMT 5.08/90

D = up to 8 poles Ø 1.4

+0.1

from 9 poles Ø 1.5

+0.1

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

Technical Data

Rated voltage

Rated current

VDE

250*

300

CSA

300

*Overvoltage category III / Pollution severity 3

Additional technical data see page 2

*Overvoltage category III / Pollution severity 3

Additional technical data see page 2

*Overvoltage category III / Pollution severity 3

Additional technical data see page 2

Solder pin length

Tape-on-Reel

Color: Black

Tape width

Poles Type

SL-SMT 5.08/2/90

SL-SMT 5.08/3/90

SL-SMT 5.08/4/90

SL-SMT 5.08/5/90

SL-SMT 5.08/6/90

SL-SMT 5.08/7/90

SL-SMT 5.08/8/90

1.5 mm

Solder pin length

Tray

Color: Black

Qty.

250

Poles

–

Type

–

SL-SMT 5.08/4/90

SL-SMT 5.08/5/90

SL-SMT 5.08/6/90

SL-SMT 5.08/7/90

SL-SMT 5.08/8/90

SL-SMT 5.08/9/90

SL-SMT 5.08/10/90

SL-SMT 5.08/11/90

SL-SMT 5.08/12/90

SL-SMT 5.08/13/90

SL-SMT 5.08/14/90

SL-SMT 5.08/15/90

SL-SMT 5.08/16/90

SL-SMT 5.08/17/90

SL-SMT 5.08/18/90

SL-SMT 5.08/19/90

SL-SMT 5.08/20/90

SL-SMT 5.08/21/90

SL-SMT 5.08/22/90

SL-SMT 5.08/23/90

SL-SMT 5.08/24/90

1.5 mm

Solder pin length

Standard Box

Color: Black

Qty.

–

Poles

Type

SL-SMT 5.08/2/90

SL-SMT 5.08/3/90

SL-SMT 5.08/4/90

SL-SMT 5.08/5/90

SL-SMT 5.08/6/90

SL-SMT 5.08/7/90

SL-SMT 5.08/8/90

SL-SMT 5.08/9/90

SL-SMT 5.08/10/90

SL-SMT 5.08/11/90

SL-SMT 5.08/12/90

SL-SMT 5.08/13/90

SL-SMT 5.08/14/90

SL-SMT 5.08/15/90

SL-SMT 5.08/16/90

SL-SMT 5.08/17/90

SL-SMT 5.08/18/90

SL-SMT 5.08/19/90

SL-SMT 5.08/20/90

SL-SMT 5.08/21/90

SL-SMT 5.08/22/90

SL-SMT 5.08/23/90

SL-SMT 5.08/24/90

1.5 mm

56 mm

Part No.

1774764001

1774774001

1774784001

1774794001

1774804001

1774814001

1774824001

Part No.

–

1774783001

1774793001

1774803001

1774813001

1774823001

1774833001

1774843001

1774853001

1774863001

1774873001

1774883001

1774893001

1774903001

1774913001

1774923001

1774933001

1774943001

1774953001

1774963001

1774973001

1774983001

Part No.

1774762001

1774772001

1774782001

1774792001

1774802001

1774812001

1774822001

1774832001

1774842001

1774852001

1774862001

1774872001

1774882001

1774892001

1774902001

1774912001

1774922001

1774932001

1774942001

1774952001

1774962001

1774972001

1774982001

Qty.

100

Additional pole numbers and tape widths on request.

Minimum order quantities may apply.

Accessories see PCB Products Selection Guide

Fixing

Marking

Coding

Miscellaneous

Page

–

190

192,193

199

Accessories see PCB Products Selection Guide

Fixing

Marking

Coding

Miscellaneous

Page

–

190

192,193

199

Accessories see PCB Products Selection Guide

Fixing

Marking

Coding

Miscellaneous

Page

–

190

192,193

199
