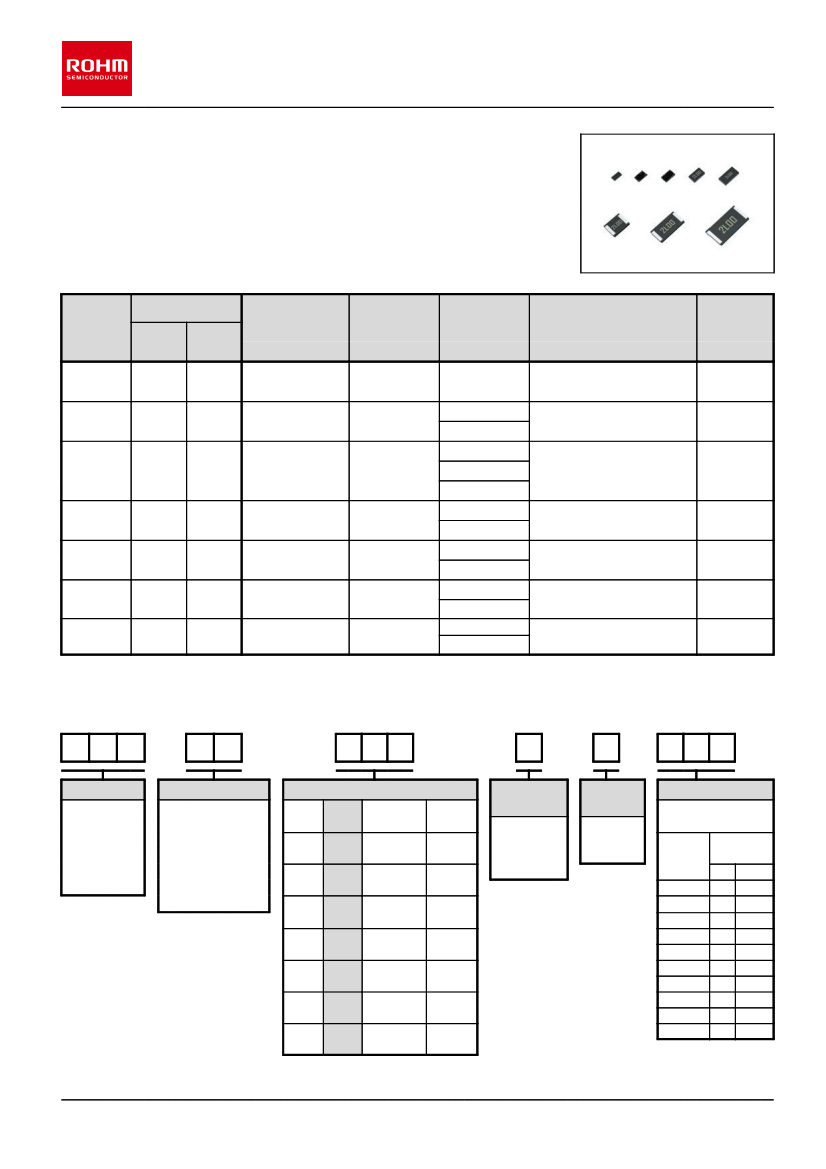

Ultra-low ohmic chip resistors for current detection
PMR series
●
Datasheet
Features
1)Ultra low-ohmic resistance range (1mΩ ~ )
2)Improved current detection accuracy by trimming-less structure.
3)Special low resistance temperature coefficient.
4)The unique chip structure minimizes thermal stress during temperature cycling,
resulting in greater reliability.
5)ROHM resistors have obtained ISO9001 / ISO / TS16949 certification.
6)Corresponds to AEC-Q200. (PMR01 is preparing)
●
Products
½
ist
Size
Part No.
(mm)
PMR01
PMR03
PMR10
PMR18
PMR25
PMR50
PMR100
∗
Rated power
(70
℃
)
(inch)
0402
0603
0805
1206
1210
2010
2512
(W)
0.2
0.25
0.5
1
1
1
2
T
emperature
coefficient
(ppm /
℃
)
0
½
+200
0
½
+150
±150
±100
±100
±100
±150
∗
Resistance
tolerance
(%)
J ( ±5% )
F ( ±1% )
J ( ±5% )
F ( ±1% )
G ( ±2% )
J ( ±5% )
F ( ±1% )
J ( ±5% )
F ( ±1% )
J ( ±5% )
J ( ±5% )
J ( ±5% )
F ( ±1% )
J ( ±5% )
Resistance range
(mΩ)
10
10
2,3,4,5,6,7,8,9,10
1,2,3,4,5,6,7,8,9,10
1,2,3,4,5
1,2,2.5,3,4,5,6,7,8,9,10
1,2,3,4,5,6,7,8,9,10
Operating
temperature
range
(
℃
)
-55
½
+155
-55
½
+155
-55
½
+155
-55
½
+155
-55
½
+155
-55
½
+155
-55
½
+155
1005
1608
2012
3216
3225
5025
6432
: ±150ppm/
℃
(1mΩ, 2mΩ Only)
Design and specifications are subject to change without notice.
Carefully check the specification sheet supplied with the product before using or ordering it.
●
Part Number Description
P M R
Part No.
2 5
Size (mm [inch])
01(1005 [0402])
03(1608 [0603])
10(2012 [0805])
18(3216 [1206])
25(3225 [1210])
50(5025 [2010])
100(6432 [2512])
H Z P
Packaging specifications code
Packaging
Part No. Code specifications Quantity
/ Reel
PMR01
PMR03
PMR10
PMR18
PMR25
PMR50
PMR100
J
Resistance
tolerance
F ( ±1%)
G ( ±2%)
J ( ±5%)
V
Special
part code
U:5
½
10mΩ
V:1
½
4mΩ
2 L 0
Nominal resistance
Resistance code,
3 or 4 digits.
Resistance
value(Ω)
1mΩ
2mΩ
3mΩ
4mΩ
5mΩ
6mΩ
7mΩ
8mΩ
9mΩ
10mΩ
Resistance
tolerance
PMR
(Ultra-low ohmic
chip resistors
for current
detection)
ZZP
EZP
EZP
EZP
HZP
HZP
HZP
Embossed tape
( 2mm pitch)
Paper tape
( 4mm pitch)
Paper tape
( 4mm pitch)
Paper tape
( 4mm pitch)
Embossed tape
( 4mm pitch)
Embossed tape
( 4mm pitch)
Embossed tape
( 4mm pitch)
10,000
5,000
5,000
5,000
2,000
2,000
2,000
J
1L0
2L0
3L0
4L0
5L0
6L0
7L0
8L0
9L0
10L
FG
,
1L00
2L00
3L00
4L00
5L00
6L00
7L00
8L00
9L00
10L0
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
1/4
2017.01 - Rev.G
