K103K15X0UH53H5H

Description
Multilayer Ceramic Capacitors MLCC - Leaded .01uF 100volts 10% 5.0mm X0U
CategoryPassive components
File Size173KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

K103K15X0UH53H5H Online Shopping

Suppliers Part Number Price MOQ In stock
K103K15X0UH53H5H - - View Buy Now

K103K15X0UH53H5H Overview

Multilayer Ceramic Capacitors MLCC - Leaded .01uF 100volts 10% 5.0mm X0U

K103K15X0UH53H5H Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerVishay
Product CategoryMultilayer Ceramic Capacitors MLCC - Leaded
RoHSDetails
Termination StyleRadial
Capacitance0.01 uF
Voltage Rating DC100 VDC
DielectricX0U
Tolerance10 %
Lead Spacing5 mm
Case StyleDipped
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 175 C
ProductAutomotive MLCCs
PackagingBulk
TypeHigh Temperature Radial
Capacitance - nF10 nF
Capacitance - pF10000 pF
ClassClass 2
Dissipation Factor DF2.5 %
Lead Diameter0.5 mm
Lead StyleOutside Bend
Factory Pack Quantity5000
K...H Series

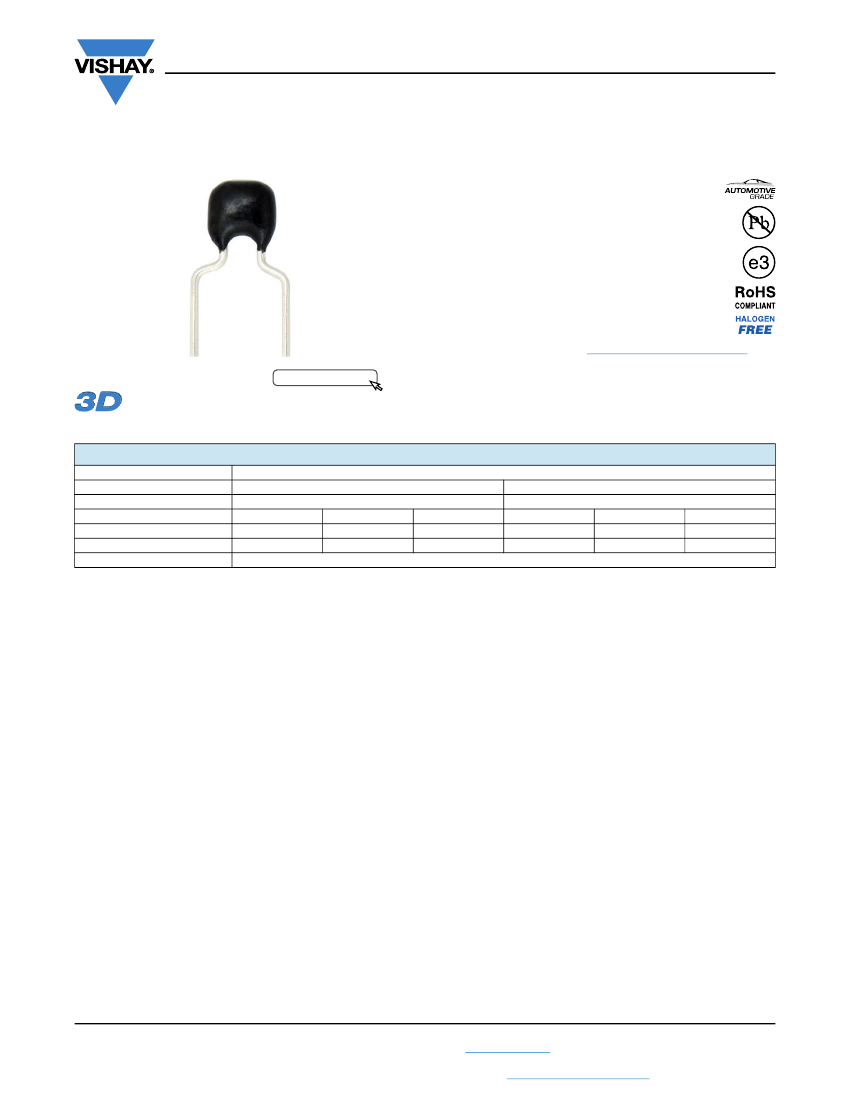

www.vishay.com
Vishay BCcomponents
High Operating Temperature Radial Leaded Multilayer Ceramic Capacitors
for Automotive Applications, 50 V
DC
, 100 V
DC
, 200 V
DC
FEATURES
• Registered trademark HOTcap
®
• AEC-Q200 qualified with PPAP available
• High reliability MLCC insert with wet build
process
• High operating temperature up to 200 °C
(1)
• Available in class 1 and class 2
• High capacitance with small size
• Radial mounting style
• Crimp and straight leadstyles
• Material categorization: for definitions of
compliance please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
Models
Available
click logo to get started
APPLICATIONS
• Automotive applications up to 200 °C
(1)
Note
(1)
200 °C for max. 500 hours and 175 °C unlimited time
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
Voltage (V
DC
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
VALUE
1
C0G
100
100
12 000
2
X0U
100
10 000
470 000
50
100
12 000
200
100
8200
Radial
50
10 000
1 000 000
200
10 000
180 000
MARKING
Marking indicates capacitance value and tolerance in
accordance with “EIA 198”.
DESIGN
• The capacitors consist of a high reliability MLCC
• Leads wires are 0.5 mm or 0.6 mm and are made of
100 % tinned copper clad steel wire
• The capacitors may be supplied with straight or kinked
leads having a lead spacing of 2.5 mm and 5.0 mm
• Coating is made of flame retardant epoxy resin in
accordance with UL 94 V-0
OPERATING TEMPERATURE RANGE
-55 °C to +175 °C unlimited time
-55 °C to +200 °C for max. 500 hours
Voltage derating above 150 °C
TEMPERATURE CHARACTERISTICS
Class 1: C0G (± 30 ppm/K within -55 °C to +200 °C)
Class 2: X0U also fullfilling X7R and X9V criteria
X7R (+15 % / -15 % within -55 °C to +125 °C)
X0U (+22 % / -56 % within -55 °C to +175 °C)
X9V (+22 % / -82 % within -55 °C to +200 °C)
See also chart “Capacitance Change vs. Temperature”
CAPACITANCE RANGE
100 pF to 1 μF
TOLERANCE ON CAPACITANCE
± 5 %, ± 10 %, ± 20 %
SECTIONAL SPECIFICATIONS
Climatic category (acc. to EN 60058-1)
55 / 125 / 21
RATED VOLTAGE
50 V
DC
, 100 V
DC
, 200 V
DC
TEST VOLTAGE
• 50 V
DC
and 100 V
DC
: 250 % of rated voltage
• 200 V
DC
: 200 % of rated voltage
APPROVALS
EIA 198
IEC 60384-8
IEC 60384-9
AEC-Q200
INSULATION RESISTANCE
DISSIPATION FACTOR
Class 1: 0.1 % max.
(C
1000 pF, at 1 MHz, 1 V; C > 1000 pF, at 1 kHz, 1 V)
Class 2: 2.5 % max. (at 1 kHz, 1 V)
Revision: 29-Mar-18
• 50 V
DC
, 100 V
DC
: 100 G or 1000
F
whichever is less at
rated voltage within 2 min of charging
• 200 V
DC
: 10 G or 100
F
whichever is less at rated
voltage within 2 min of charging
Document Number: 45211
1
For technical questions, contact:
cmll@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000

K103K15X0UH53H5H Related Products

K103K15X0UH53H5H K101J15C0GF53H5H K472J20C0GK63H5H K102J15C0GK53H5H K102J15C0GH53H5H K473K15X0UF53H5H K822J20C0GK63H5H K103J20C0GH63H5H K471J15C0GF53H5H
Description Multilayer Ceramic Capacitors MLCC - Leaded .01uF 100volts 10% 5.0mm X0U Multilayer Ceramic Capacitors MLCC - Leaded 100pF 50volts 5% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 4700pF 200volts 5% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 1000pF 200volts 5% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 1000pF 100volts 5% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 47nF 50volts 10% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 8200pF 200volts 5% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 10000pF 100volts 5% High Temp AEC-Q200 Multilayer Ceramic Capacitors MLCC - Leaded 470pF 50volts 5% High Temp AEC-Q200
Product Attribute Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value Attribute Value
Manufacturer Vishay Vishay Vishay Vishay Vishay Vishay Vishay Vishay Vishay
Product Category Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded Multilayer Ceramic Capacitors MLCC - Leaded
RoHS Details Details Details Details Details Details Details Details Details
Termination Style Radial Radial Radial Radial Radial Radial Radial Radial Radial
Capacitance 0.01 uF 100 pF 4700 pF 1000 pF 1000 pF 0.047 uF 8200 pF 0.01 uF 470 pF
Voltage Rating DC 100 VDC 50 VDC 200 VDC 200 VDC 100 VDC 50 VDC 200 VDC 100 VDC 50 VDC
Dielectric X0U C0G (NP0) C0G (NP0) C0G (NP0) C0G (NP0) X0U C0G (NP0) C0G (NP0) C0G (NP0)
Tolerance 10 % 5 % 5 % 5 % 5 % 10 % 5 % 5 % 5 %
Lead Spacing 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
Minimum Operating Temperature - 55 C - 55 C - 55 C - 55 C - 55 C - 55 C - 55 C - 55 C - 55 C
Maximum Operating Temperature + 175 C + 175 C + 175 C + 175 C + 175 C + 175 C + 175 C + 175 C + 175 C
Product Automotive MLCCs High Reliability MLCCs High Reliability MLCCs High Reliability MLCCs High Reliability MLCCs High Reliability MLCCs High Reliability MLCCs High Reliability MLCCs High Reliability MLCCs
Packaging Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk
Type High Temperature Radial Radial Lead MLCC Radial Lead MLCC Radial Lead MLCC Radial Lead MLCC Radial Lead MLCC Radial Lead MLCC Radial Lead MLCC Radial Lead MLCC
Capacitance - nF 10 nF 0.1 nF 4.7 nF 1 nF 1 nF 47 nF 8.2 nF 10 nF 0.47 nF
Class Class 2 Class 1 Class 1 Class 1 Class 1 Class 2 Class 1 Class 1 Class 1
Dissipation Factor DF 2.5 % 0.1 0.1 0.1 0.1 2.5 0.1 0.1 0.1
Lead Diameter 0.5 mm 0.5 mm 0.6 mm 0.5 mm 0.5 mm 0.5 mm 0.6 mm 0.6 mm 0.5 mm
Lead Style Outside Bend Outside Bend Outside Bend Outside Bend Outside Bend Outside Bend Outside Bend Outside Bend Outside Bend
Factory Pack Quantity 5000 5000 5000 5000 5000 5000 5000 5000 5000
Length - 3.8 mm 5.1 mm 3.8 mm 3.8 mm 3.8 mm 5.1 mm 5.1 mm 3.8 mm
Width - 2.6 mm 3.2 mm 2.6 mm 2.6 mm 2.6 mm 3.2 mm 3.2 mm 2.6 mm
Height - 3.8 mm 5.1 mm 3.8 mm 3.8 mm 3.8 mm 5.1 mm 5.1 mm 3.8 mm
Operating Temperature Range - - 55 C to + 175 C - 55 C to + 175 C - 55 C to + 175 C - 55 C to + 175 C - - 55 C to + 175 C - 55 C to + 175 C - 55 C to + 175 C
Voltage Rating - 50 VDC 200 VDC 200 VDC 100 VDC 50 VDC 200 VDC 100 VDC 50 VDC
