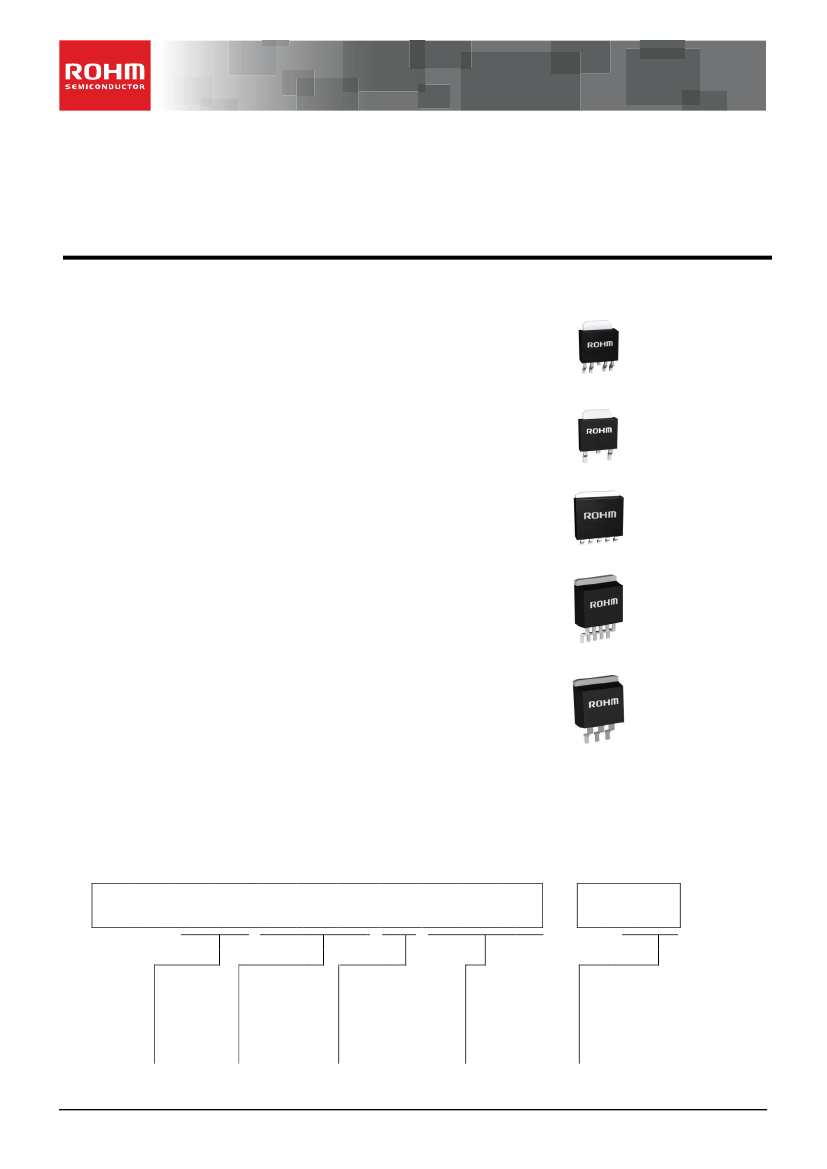

Datasheet
Single-Output LDO Regulators
35V Voltage Resistance
1A LDO Regulators
BDxxC0A-C series
BDxxC0AW-C series
Packages
TO252-5
W(Typ) x D(Typ) x H(Max)
6.50mm x 9.50mm x 2.50mm
General Description
The BDxxC0A-C series and the BDxxC0AW-C series are
low-saturation regulators. This series feature variable and
fixed voltage output with selectable Shutdown switch
(referred to as SW); Vout-3.3V, 5.0V, 8.0V and 9.0V.Five
conventional PKGs; TO252-3/5, HRP5 and TO263-3(F)/5
are available. This series has a built-in over-current
protection circuit that prevents the destruction of the IC due
to output short circuits and a thermal Shutdown circuit that
protects the IC from thermal damage due to overloading.
Features
1) Output current capability: 1A
2) Output voltage: Variable, 3.3V, 5.0V, 8.0V and 9.0V
3) High output voltage accuracy
(Ta=25°C, TO252-3/5, HRP5): ±1%
4) Low saturation with PDMOS output
5) Built-in over-current protection circuit that prevents the
destruction of the IC due to output short circuits
6) Built-in thermal Shutdown circuit for protecting the IC
from thermal damage due to overloading
7) Low ESR Capacitor
8) TO252-3/5, HRP5, TO263-3(F)/5 package
9) AEC-Q100 Qualified
(Note 1)
(Note 1: Grade 1)
Key Specifications
・Supply
Voltage(Vo ≥ 3.0V):
Vo+1.0V to 26.5V
・Supply
Voltage(Vo < 3.0V):
4.0V to 26.5V
・Output
Voltage(BD00C0AW):
1.0V to 15.0V
・Output
Current:
1A
・Output
Voltage Precision
(Ta=25°C): ±1% (TO252-3/5, HRP5)
(-40°C ≤ Ta ≤ +125°C):
±3%
・Operating
Temperature Range: -40°C ≤ Ta ≤ +125°C
Applications
Automotive
(body, audio system, navigation system, etc.)
TO252-3
6.50mm x 9.50mm x 2.50mm
HRP5
9.395mm x 10.540mm x 2.005mm
TO263-5
10.16mm x 15.10mm x 4.70mm
TO263-3(F)
10.16mm x 15.10mm x 4.70mm
Ordering part number
B
D
x
x
C
0
A
W
x
x
x
-
C
x
x
Output voltage
00: Variable
33: 3.3V
50: 5.0V
80: 8.0V
90: 9.0V
Current
capacity
C0A: 1A
SW
W: With SW
None: Without SW
Package
FP: TO252-3/5
HFP: HRP5
FP2: TO263-3(F)/5
Packaging and forming specification
E2: Embossed tape and reel
(TO252-3/5, TO263-3(F)/5)
TR: Embossed tape and reel
(HRP5)
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product is not designed protection against radioactive rays.
1/43
TSZ02201-G1G0AN00640-1-2
27.Jan.2017 Rev.005
BDxxC0A-C series
Lineup
Articles
BDxxC0AW-C series
Variable
○
-
○
-
○
-
3.3
○
○
○
○
○
○
5.0
○
○
○
○
○
○
8.0
○
○
○
○
○
○
9.0
○
○
○
○
○
○
Package
TO252-5
TO252-3
HRP5
HRP5
TO263-5
TO263-3(F)
Reel of 2000
Reel of 2000
Reel of 2000
Reel of 2000
Reel of 500
Reel of 500
BDxxC0AWFP-CE2
BDxxC0AFP-CE2
BDxxC0AWHFP-CTR
BDxxC0AHFP-CTR
BDxxC0AWFP2-CE2
BDxxC0AFP2-CE2
Typical Application Circuits
〈Output
Voltage Variable Type (With SW)〉
Vcc
Vcc
Cin
Vo
R
2
CTL
GND
ADJ
R
1
Cout
Figure 1. Typical Application Circuit
Output Voltage Variable Type (With SW)
〈Output
Voltage Fixation Type (With SW)〉
Vcc
Vcc
Cin
Vo
CTL
GND
N.C.
Cout
Figure 2. Typical Application Circuit
Output Voltage Fixation Type (With SW)
〈Output
Voltage Fixation Type (Without SW)〉
Vcc
Vcc
Cin
Vo
Cout
GND
Figure 3. Typical Application Circuit
Output Voltage Fixation Type (Without SW)
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/43
TSZ02201-G1G0AN00640-1-2
27.Jan.2017 Rev.005
BDxxC0A-C series
BDxxC0AW-C series

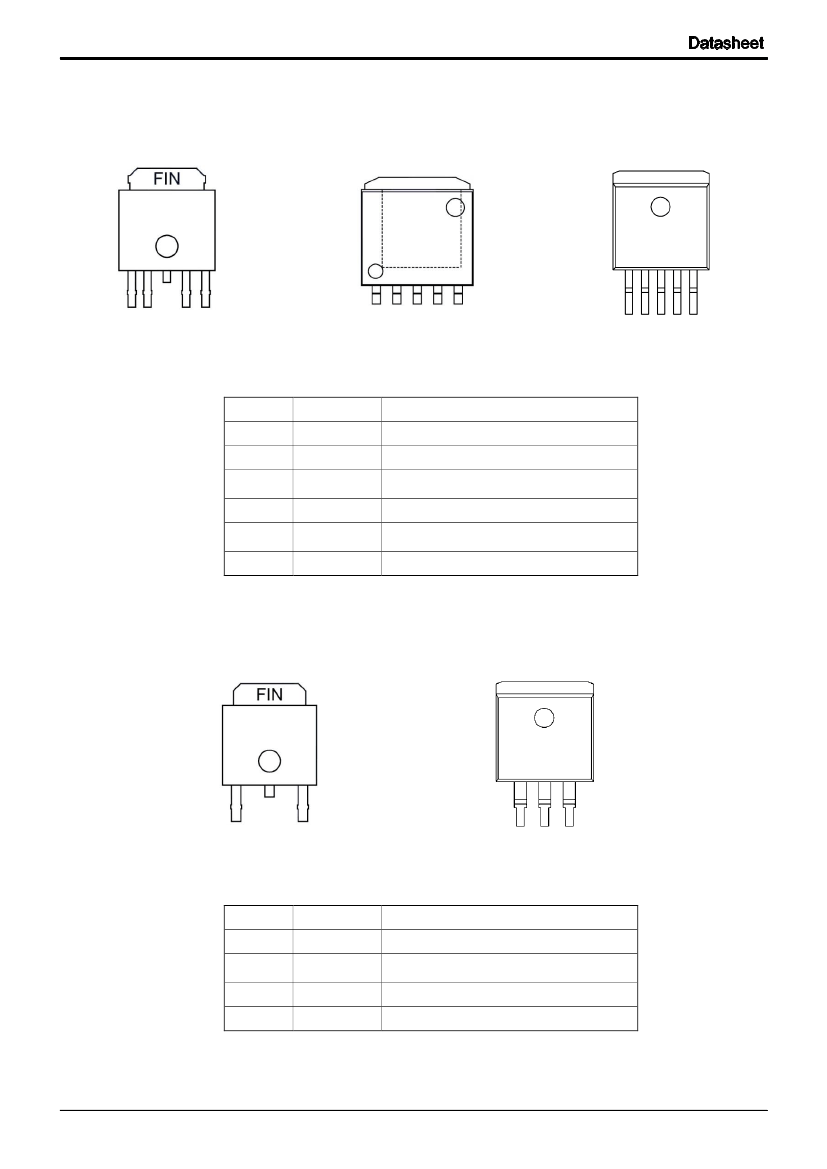

Pin Configurations/Pin Descriptions
〈With
SW (TO252-5/HRP5/TO263-5)〉
TO252-5
(TOP VIEW)
HRP5
(TOP VIEW)
FIN
TO263-5
(TOP VIEW)
FIN
1 2
3 4 5
1 2
3
HRP5
4 5
1 2 3 4 5
TO263-5
TO252-5
Figure 4. Pin Configurations (With SW)
Pin No.
1
2
3
4
5
FIN
Pin Name
CTL
Vcc
N.C.
(Note 1)
GND
Vo
ADJ
N.C.
(Note 1)
GND
Function
Output Control Pin
Power Supply Pin
N.C. Pin (TO252-5)
GND (HRP5/TO263-5)
Output Pin
Variable Pin (BD00C0AW)
N.C. Pin (BD33/50/80/90C0AW)
GND
(Note 1) N.C.Pin can be open. Because it isn't connect it inside of IC.
〈Without
SW (TO252-3/TO263-3(F))〉
TO252-3
(TOP VIEW)
TO263-3(F)
(TOP VIEW)
FIN
1
2
TO252-3
3
1 2 3
TO263-3(F)
Figure 5. Pin Descriptions (Without SW)
Pin No.
1
2
3
FIN
Pin Name
Vcc
N.C.
(Note 1)
GND
Vo
GND
Function
Power Supply Pin
N.C. Pin (TO252-3)
GND (TO263-3(F))
Output Pin
GND
(Note 1) N.C.Pin can be open. Because it isn't connect it inside of IC.
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
3/43
TSZ02201-G1G0AN00640-1-2
27.Jan.2017 Rev.005
BDxxC0A-C series
Block Diagrams
BDxxC0AW-C series
〈BD00C0AWFP/WHFP/WFP2-C
(Output Voltage Variable Type, With SW)
〉
■TO252-5/HRP5/TO263-5
FIN
GND
VREF
OCP
TSD
Driver
:Bandgap Reference
:Over Current Protection Circuit
:Thermal Shut Down Circuit
:Power Transistor Driver
VREF
Driver
OCP
TSD
1
CTL
2
Vcc
3
N.C.(TO252-5）
GND(HRP5/TO263-5）
4
Vo
5
ADJ
Figure 7. Block diagram
BD00C0AWFP/WHFP/WFP2-C (Output Voltage Variable Type, With SW)
〈BDxxC0AWFP/WHFP/WFP2-C
(Output Voltage Fixation Type, With SW)
〉
■TO252-5/HRP5/TO263-5
FIN
GND
VREF
OCP
TSD
Driver
:Bandgap Reference
:Over Current Protection Circuit
:Thermal Shut Down Circuit
:Power Transistor Driver
VREF
Driver
OCP
TSD
1
CTL
2
Vcc
3
N.C.(TO252-5）
GND(HRP5/TO263-5)
4
Vo
5
N.C.
Figure 8. Block diagram
BDxxC0AWFP/WHFP/WFP2-C (Output Voltage Fixation Type, With SW)
www.rohm.com
© 2017 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
5/43
TSZ02201-G1G0AN00640-1-2
27.Jan.2017 Rev.005
