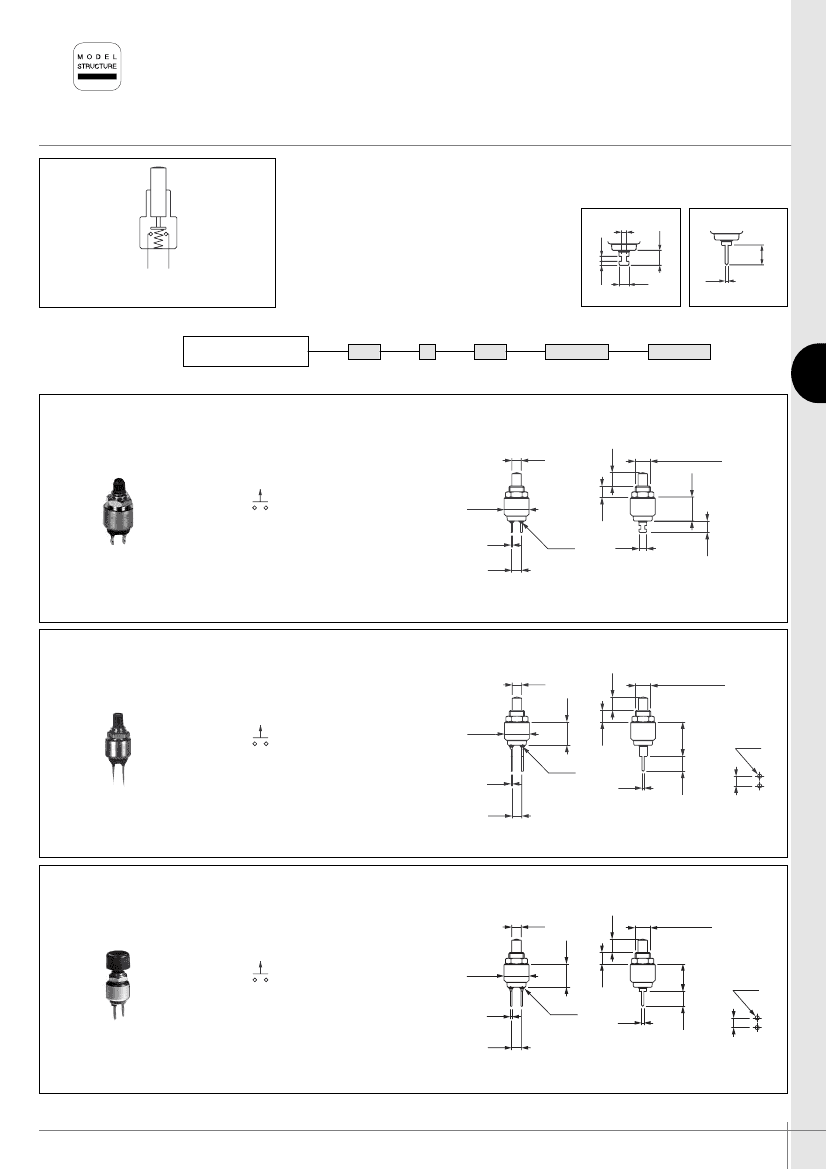

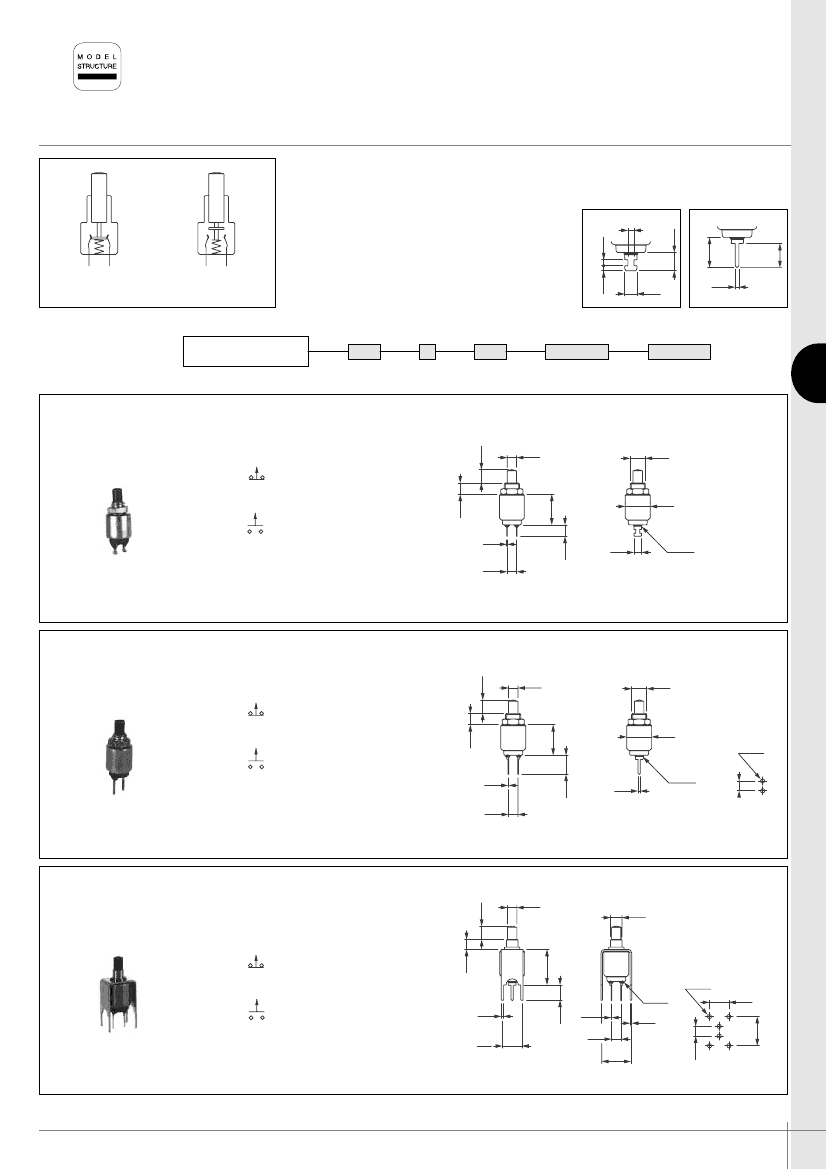

9000 series
Subminiature momentary pushbutton switches
Distinctive features and pecifications
❑
Panel and PC mount models, horizontal or vertical
❑
Self-cleaning and butt action contacts
❑
Several plunger options
B
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load : 100mA 30VDC
• Initial contact resistance : 30 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
500 Vrms 50 Hz min. between terminals
1.000 Vrms 50 Hz min. between terminals and frame
• Electrical life at full load :
9100 - 9200N and 9500N : 250.000 cycles
9200 - 9500 : 100.000 cycles
MATERIALS
GENERAL SPECIFICATIONS
• Case : Pa6T
• Actuator : polyamide, glass
filled
• Bushing : brass, nickel plated
• Contacts :
CD
: brass, gold plated
• Terminal seal : epoxy
• Torque : 0,5 Nm (.590 Ft.lb) max. applied to nut
• Operating temperature : -30°C to +65°C
• Panel thickness : 1,50 mm (.059) max.
• Travels : see table below
Tolerance : +/- 0,3 mm (.011)
9533-9233
Total travel
Pre-travel
Over travel
1,10 (.043)
0,80 (.031)
0,30 (.011)
9532-9232
1,80 (.070)
1,00 (.039)
0,75 (.029)
9533N
9233N-9133
1 (.039)
-
-
APEM
www.apem.com
B-13
9000 series
Subminiature momentary pushbutton switches
Overview
9
SERIES
Number of poles
3
Single pole
2
3
Electrical functions
Normally closed (NC)
Normally open (NO)
Terminals, case and bushing
B
Case height 8 (.314)
2
Straight terminals - threaded bushing
2..Y
Tall bracket - plain bushing
2..WW
Right angle terminals - plain bushing
5
Solder lugs - threaded bushing
Case height 6,1 (.240)
1
Straight terminals - threaded bushing - 7,10 (.279) PCB to panel
1..Y
Short bracket - plain bushing
1..WW
Right angle terminals - plain bushing
2..N
Straight terminals - threaded bushing - 8,90 (.350) PCB to panel
2..NY
Tall bracket - plain bushing
5..N
Solder lugs - threaded bushing
Contact materials
CD
Gold plated brass
(standard)
Sealing
Blank
Epoxy sealed
terminals standard
K
Front panel sealing
by two O-rings
Plunger
Blank
Standard
-0
Flush
-4
Long
Caps
For plunger -4
U4310
Height 4 (.157)
U4320
Height 3,9 (.153)
Mounting bezel
U4922
For 9500 model
only.
ABOUT THIS SERIES
On the following pages, you will find successively :
- model structure of switches
- their options in the same order as in above chart
Dimensions
: first dimensions are in mm while inches are shown as bracketted numbers.
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
NOTICE
Sealing boots
are available to protect the switches. They are presented in section H.
Mounting accessories
: standard hardware supplied with all threaded bushing models : 1 nickel plated hex nut 5 (.196)
across flats, part number U544. This nut is presented after model structure of switches.
Packaging unit
: 100 pieces.
B-14
www.apem.com
APEM
9000 series
Subminiature momentary pushbutton switches
Solder lug or straight PC terminals : 9500 - 9200 - 9200Y
•
Case height 8 (.314)
•
With over travel
•
Self-cleaning contacts
•
Epoxy sealed terminals standard
1.00
(.039)
1.00
(.039)
3.00
(.118)
5.00
(.196)
NC
(function 2)
NO
(function 3)
MODEL
STRUCTURE
0.80
(.031)
2.00
(.078)
0.60
(.023)
4.00
(.157)
B
Threaded bushing - solder lugs : 9500
3.50
(.137)
Ø2.45
(.096 DIA)
Ø4.00 X 0.70 SI
(.157 DIA X 0.70 IS)
9532
Normally Closed
3.00
(.118)
8.00
(.314)
Ø6.50
(.255 DIA)
9533
Normally Open
0.20
(.008)
2.54
(.100)
Threaded bushing - straight PC terminals : 9200
3.50
(.137)
Ø2.45
(.096 DIA)
Ø4.00 X 0.70 SI
(.157 DIA X 0.70 IS)
9232
Normally Closed
3.00
(.118)
8.00
(.314)
Ø6.50
(.255 DIA)
Ø1.10
(.043 DIA)
9233
Normally Open
2.54
(.100)
Straight PC terminals - bracket mounting : 9200Y
3.50
(.137)
Ø2.45
(.096 DIA)
Ø3.00
(.118 DIA)
2.60
(.102)
9.30
(.366)
9232Y
Normally Closed
5.00
(.196)
Ø1.10
(.043 DIA)
0.20
(.008)
2.54
(.100)
EPOXY
0.40
(.015)
4.00
(.157)
9233Y
Normally Open
0.60
(.023)
5.08
(.200)
2.54
(.100)
5.08
(.200)
0.20
(.008)
3.00
(.118)
2.00
(.078)
EPOXY
0.60
(.023)
EPOXY
APEM
www.apem.com
2.54
(.100)
7.62
(.300)
7.62
(.300)
B-15
9000 series
Subminiature momentary pushbutton switches
Right angle terminals : 9200WW
Right angle terminals : 9200WW
3.50
(.137)
2.70
(.106)
EPOXY
0.20
(.008)
Ø6.5
(.255)
Ø2.45
(.096 DIA)
9232WW
Normally Closed
3.25
(.127)
Ø3.00
(.118 DIA)
9233WW
Normally Open
3.00
(.118)
9.50
(.374)
0.60
(.023)
Ø1.10
(.043 DIA)
10.16
(.400)
5.08
(.200)
0.60
(.023)
0.60
(.023)
5.08
(.200)
10.16
(.400)
2.54
(.100)
2.54
(.100)
B
PANEL CUT
-
OUT
STANDARD HARDWARE
9500 - 9200
5.00
(.196)
Ø4.20
(.165 DIA)
1.50
(.059)
M4 X 0.70 SI
(.157 DIA X 0.70 IS)
For threaded bushing models.
U544
(nickel plated)
B-16
www.apem.com
5.08
(.200)
APEM
9000 series
Subminiature momentary pushbutton switches
Solder lug or straight PC terminals : 9500N - 9200N - 9100
• Case height 6,1 (.240)
•
Epoxy sealed terminals
• Butt action contacts
1.00
(.039)
3.00
(.118)
1.00
(.039)
NO
(function 3)
0.80
(.031)
0.60
(.023)
2.00
(.078)
MODEL
STRUCTURE
4.00
(.157)
B
Threaded bushing - solder lugs : 9500N
3.50
(.137)
Ø2.45
(.096 DIA)
Ø4.00 X 0.70 SI
(.157 DIA X 0.70 IS)
6.10
(.240)
2.54
(.100)
Threaded bushing - straight PC terminals - 8,90 (.350) PCB to panel
3.50
(.137)
Ø2.45
(.096 DIA)
6.10
(.240)
Ø4.00 X 0.70 SI
(.157 DIA X 0.70 IS)
Ø6.50
(.255 DIA)
3.00
(.118)
8.90
(.350)
3.00
(.118)
0.40
(.015)
3.00
(.118)
EPOXY
2.00
(.078)
9533N
Normally Open
Ø6.50
(.255 DIA)
9233N
Normally Open
0.40
(.015)
2.54
(.100)
EPOXY
Ø1.10
(.043 DIA)
Threaded bushing - straight PC terminals - 7,10 (.279) PCB to panel
3.25
(.127)
Ø2.45
(.096 DIA)
Ø4.00 X 0.70 SI
(.157 DIA X 0.70 IS)
3.00
(.118)
9133
Normally Open
7.10
(.279)
Ø6.50
(.255 DIA)
6.10
(.240)
4.00
(.157)
2.54
(.100)
APEM
www.apem.com
4.00
(.157)
2.54
(.100)
0.20
(.008)
EPOXY
0.60
(.023)
2.54
(.100)
Ø1.10
(.043 DIA)
0.60
(.023)
B-17
