BCM6410/6420
PRODUCT
®
Brief
O F
B E N E F I T S
LOW-POWER, HIGH-DENSITY CENTRAL OFFICE ADSL SOLUTION
B C M 6 4 1 0 / 6 4 2 0
F E AT U R E S
S U M M A R Y
•
Low-power, high-density Central Office ADSL solution
Lowest power per channel:
•
(worst-case line conditions),less than 1W per channel
including the line driver
Highest
•
channelsdensity two-chip solution implements 12
of full-rate ADSL
Smallest modem
production ready design is
•
just 650 mm2 perfootprint: using only eight PCB layers
channel,
Complete standards support:
•
G.992.1 (G.dmt) Annex A, B, CANSI T1.413 issue2, ITU
& H, ITU G.992.2
(G.lite), ITU G.992.3 (ADSL2) Annex A, B, J (extended
upstream), L (RE-ADSL), and ITU G.992.5 (ADSL2+)
•
Superior rate-reach performance
•
Proven worldwide interoperability
•
System-wide power cut-back techniques deliver in-
service power savings and patented power reduction
technologies deliver unmatchable low-power
consumption using standard class AB line drivers
booting and management (processor-less line cards)
•
Complete G.997.1 on chip support enabling remote
Fully soft modem implementation
•
unprecedented feature richness supports
Loop condition
•
service lines testing and capacity estimation on in-
•
Shared clocks and power supplies reduce line card cost
•
No external devices (e.g., memory) are required
•
Designed to operate with a wide range of line driver
devices
•
Full design-in support provided

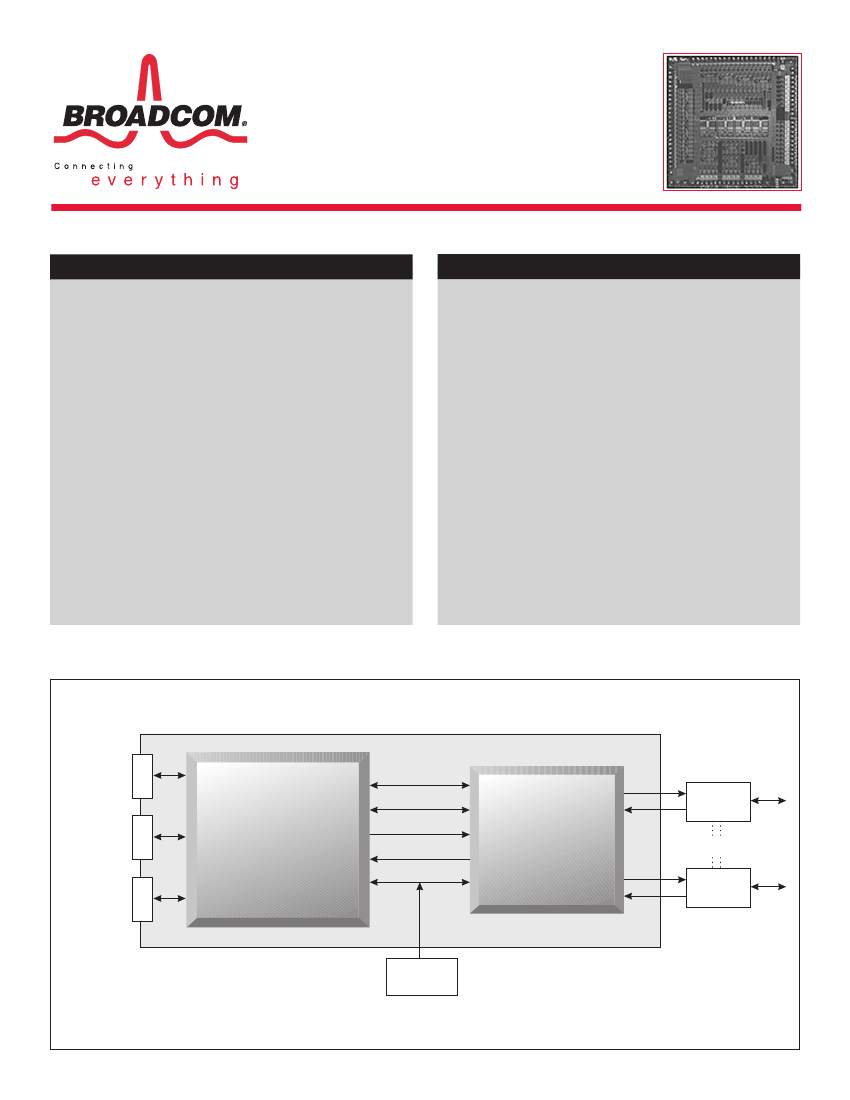

BladeRunner™ Central Office ADSL System
UTOPIA 2
CTRL
BCM6410
SPROM
(optional)
External
Controller
(optional)
SYNC
TX
RX
CLK
BCM6420
12-Channel
xDSL Integrated
AFE IC
AFE Line
Interface
12 off
AFE Line
Interface
12-Channel DSL
Digital Transceiver
IC
35.328 MHz
Clock
B C M 6 4 1 0 / 6 4 2 0
O V E R V I E W
The
BCM6410
and
BCM6420
devices are the first of
Broadcom's new BladeRunner™ generation of low-power DSL
chipsets designed for very high-density and functionally rich
DSLAM and DLC systems.
Powered by Broadcom's ultra-high performance FirePath™
communications processor, optimized for xDSL algorithms, the
BCM6410's
fully programmable digital design serves as a
platform for a low-power and high-density digital transceiver IC.
BladeRunner's unique PowerCrest™ power optimization reduces
line driver power consumption regardless of the line driver used.
It also supports system-wide algorithms only available on a
purely software-based system.
The
BCM6410
12-channel DSL digital transceiver IC is supplied
in a 27 mm x 27 mm Plastic BGA (336-ball) package. The
BCM6420
12-channel xDSL AFE IC is supplied in a 23 mm x
23 mm Plastic BGA (208-ball) package.
The firmware for the
BCM6410/BCM6420
chipset supports
ANSI T1.413 issue 2, ITU G.992.1 Annexes A, B, C, and I, ITU
G.992.2 (G.lite), ITU G.992.3 (ADSL2) Annex A, B, J, and L, and
ITU G.992.5 (ADSL2+) giving complete support for full- and
double-rate ADSL, extended upstream ADSL2, Reach Extended
RE-ADSL, and up to 27-Mbps ADSL2+.
Future firmware upgrades will track future standards evolution,
extend interoperability, and provide higher-layer network
functions. Upgrades are supplied to customers as required for all
firmware variants, using the same hardware design for
all Annexes.
CPE InterOperability
The BladeRunner solution has proven interoperability with a
broad range of ADSL CPEs and supports extended rate-reach
performance, as well as dual latency and S = 0.5 operation.
Host Messaging Interface Definition
The functionality of the BladeRunner chipset is accessed via a
flexible messaging interface. This interface is supported on the
local processor port connection and over the in-band
management link. A detailed and comprehensive definition of
this interface is available to customers and full design-in
assistance is provided, including example host codes and
graphical user interfaces (GUIs).
Reference Line Card Designs
Broadcom has designed a number of working line cards with
generic system connectivity to suit different form factors and
channel counts. These serve as references for customer designs,
demonstrate the high channel density capability of the Broadcom
solution, verify CPE interoperability, and showcase the viability
of low-cost volume production. These boards are readily
manufactured in high volume at low cost. Broadcom can provide
line card design expertise as an integral part of the design support
activity.
Evaluation Systems
Broadcom has produced several evaluation systems that use the
reference line card designs to quickly prototype working multi-
channel ADSL modems. This allows customers to evaluate the
benefits of using Broadcom's BladeRunner ADSL chipset, and
provides a development platform for system/product
prototyping.
Software Development Environment
Broadcom has created a sophisticated software development
environment with which to design, build and verify the software
base for its FirePath™ processor core and its ADSL applications.
This environment includes a comprehensive commercially
available tool chain of processor simulators, assemblers,
optimizing compilers, and debugging tools. The software
environment includes a robust real-time operating system and
flexible software architecture. Using the tool chain, additional
functionality can be added to the chipset's firmware tailored to a
customer's specific requirements by Broadcom or by the
customer
−
all the necessary support is provided.
Technology White Papers
Broadcom has created a comprehensive base of innovative
technology during development of its ADSL products, on which
white papers are available. This technology relates to new design
processes, the FirePath processor architecture, low-power
hardware designs, system-wide power management techniques,
optimized software algorithms, and unique ADSL traffic-
carrying techniques.
Ordering Information
BCM6410IPB 12-Channel ADSL Digital Transceiver
BCM6420IPB 12-Channel xDSL Integrated AFE
Broadcom
®
, the pulse logo, BladeRunner™, FirePath™, and
Connecting everything
®
are
trademarks of Broadcom Corporation and/or its subsidiaries in the United States and certain
other countries. All other trademarks are the property of their respective owners.
®
BROADCOM CORPORATION
16215 Alton Parkway, P.O. Box 57013
Irvine, California 92619-7013
© 2003 by BROADCOM CORPORATION. All rights reserved.
6410/6420-PB02-R-07.01.03
