180-071NF42

Description
SIMPLEX FIBER OPTIC CONNECTOR, RECEPTACLE
CategoryThe connector    The connector
File Size109KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

180-071NF42 Overview

SIMPLEX FIBER OPTIC CONNECTOR, RECEPTACLE

180-071NF42 Parametric

Parameter NameAttribute value
Reach Compliance Codecompli
Other featuresPOLARIZED
Body/casing typeRECEPTACLE
Connection TypeSIMPLEX
Connector typeFIBER OPTIC CONNECTOR
Coupling typeTHREADED
DIN complianceNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number180
Installation typePANEL
OptionsGENERAL PURPOSE
Base Number Matches1

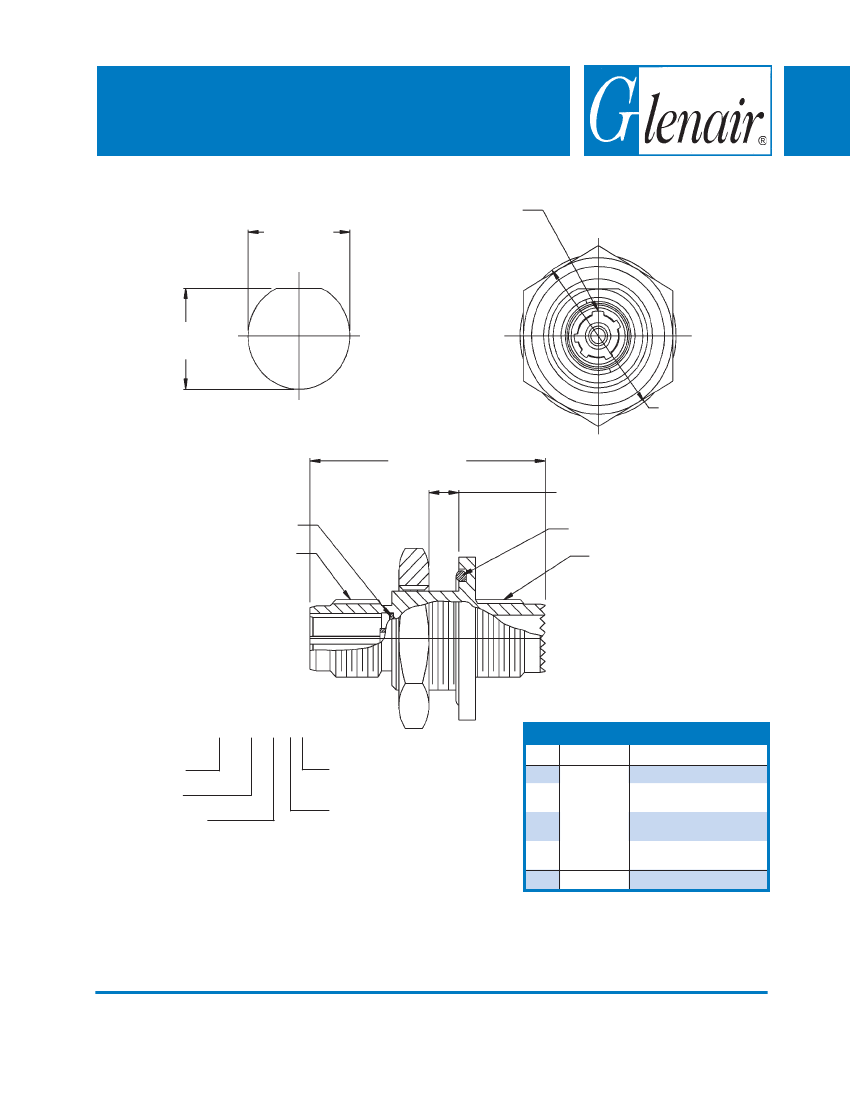

Single Channel Fiber Optic Connector
for use with Glenair Pin Terminus 181-002-*** (M29504/4)
-4 Jam Nut Mounted Receptacle
Polarizing
Master Keyway
.515 (13.1)
.505 (12.8)
.461 (11.7)
.457 (11.6)
RECOMMENDED PANEL
CUT-OUT
.783 (19.9)
1.250 (31.8)
Max
.150 (3.8) Max Panel
thickness
Interfacial Seal
.375-.05P-.1L-DS-2A
O-Ring
.375-24 UNF-2A
180-071-M 4 1
Product Series
Basic Number
Class (See Table I)
Alternate Key Position
1, 2, 3, 4, or 5
Connector Style
6 = Plug assembly
3 = Wall Mounted
Receptacle Assembly
4 = Jam Nut Assembly
C
M
NF
ZN
Z1
TABLE I: CLASS
Class Shell Material
Finish Description
Black Anodize
Electroless Nickel
(Coupling Nut Electrodeposited)
Olive Drab Cadmium over
Electroless Nickel
Zinc-Nickel / Olive Drab over
Electroless Nickel
Stainless Steel
Passivate
Aluminum
NOTES:
1. Metric dimensions (mm) are in parentheses and are for reference only.
2. For appropriate Glenair fiber optic pin termini, see Section D.
© 2002 Glenair, Inc.
CAGE Codes 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
C-9
Fiber Optic
Connectors
