FUJITSU TAKAMISAWA
COMPONENT CATALOG
RECTANGULAR CONNECTORS
FCN-360 SERIES
s

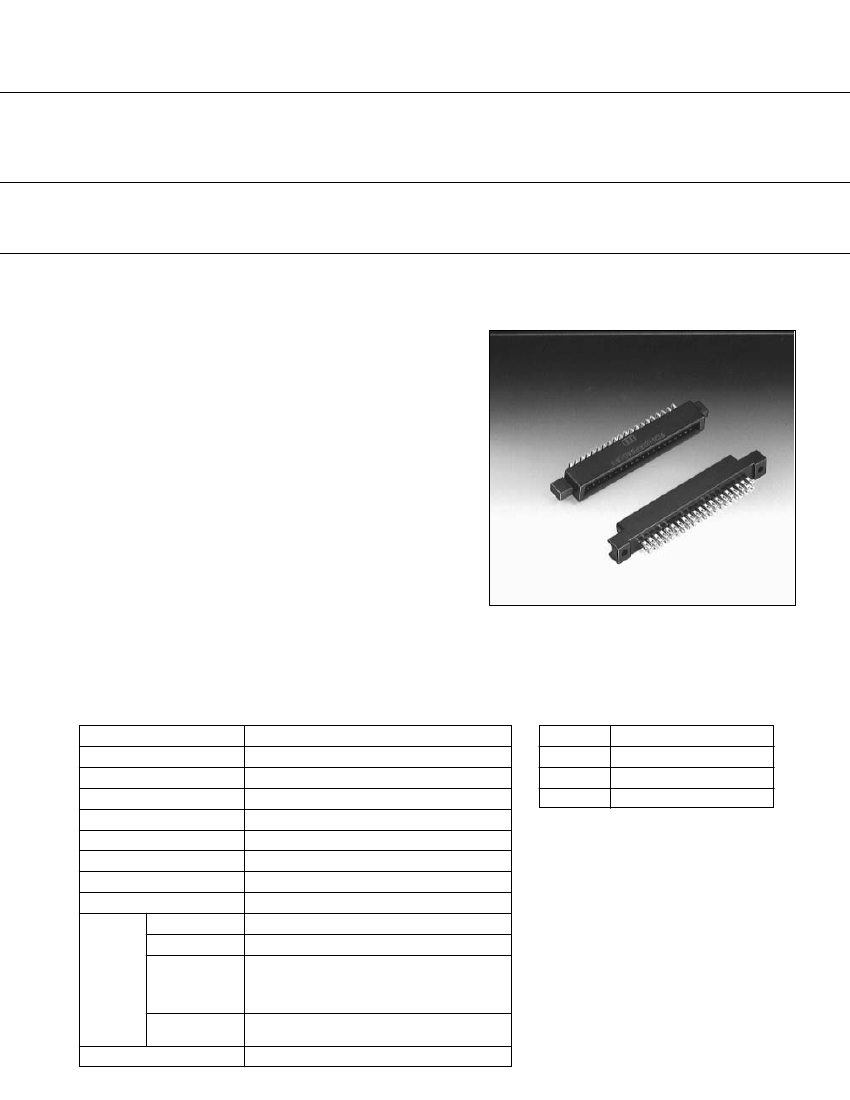

FEATURES

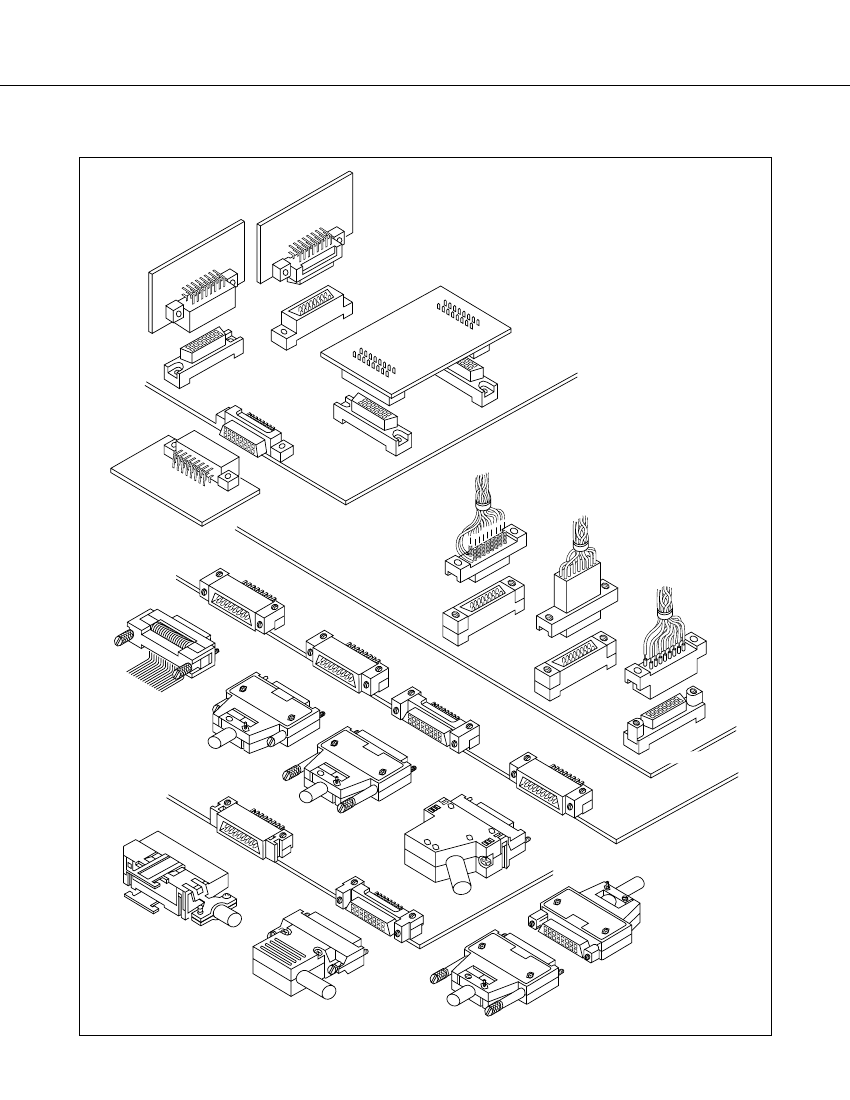

• Many applications
Various connectors are available for connection by means
of soldering, wire wrapping, crimping, PC board mounting,
and insulation displacement connection (IDC). The user
can choose a plug and jack combination that best meet
each application.
• Small size for high-density mounting
The connectors are small with a contact and terminal pitch
of 2.54 mm (0.100 in.) between pins and between rows
and are thus well suited for high-density mounting.
• Sturdy shell guide
Sturdy shell guides are used to prevent mismating and to
protect the pins.
• Excellent cost performance
Streamlined design and automated manufacturing,
including use of partial solder plating, provide excellent
cost performance.
s
SPECIFICATIONS
Item
Operating temperature range
Current Rating
Voltage Rating
Contact resistance
Insulation resistance
Dielectric withstanding voltage
Insertion force
Withdrawal force
Soldering
Wire-wrapping
Applicable
wire
–55°C to +85°C
DC 3 A (IDC type: 1 A)
AC 250 V
15 mΩ max. (DC 6 V, 0.3 A)
1000 MΩ min. (DC 500 V)
AC 500 V for 1 minute
2.5 kg max. (8 contacts), 20 kg max. (64 contacts)
0.3 kg min. (8 contacts), 2.3 kg min. (64 contacts)
φ0.60
mm (0.024 in.) max, AWG #23 or less
φ0.32
mm (0.013 in.) to
φ0.26
mm (0.010 in.), AWG #28 to #30
Standard contacts
φ0.51
mm (0.020 in.) to
φ0.32
mm (0.013
in.), AWG #24 to #28, insulator
φ1.2
mm (0.047 in.) max.
Contacts for thick wires
φ0.64
mm (0.025 in.) to
φ0.32
mm
(0.013 in.), AWG #22 to #28, insulator
φ1.7
(0.067 in.) max.
Flat cable 1.27 mm (0.050 in.) pitch, AWG #28 (stranded wire),
AWG #30 (solid wire)
1.6 mm (0.063 in.) standard thick
Specification
s
MATERIALS
Item
Insulator
Conductor
Plating
Material
Polyester (363J: PC94V-2)
Copper alloy
Gold plating, silver plating
Crimping
IDC
Applicable PC board
