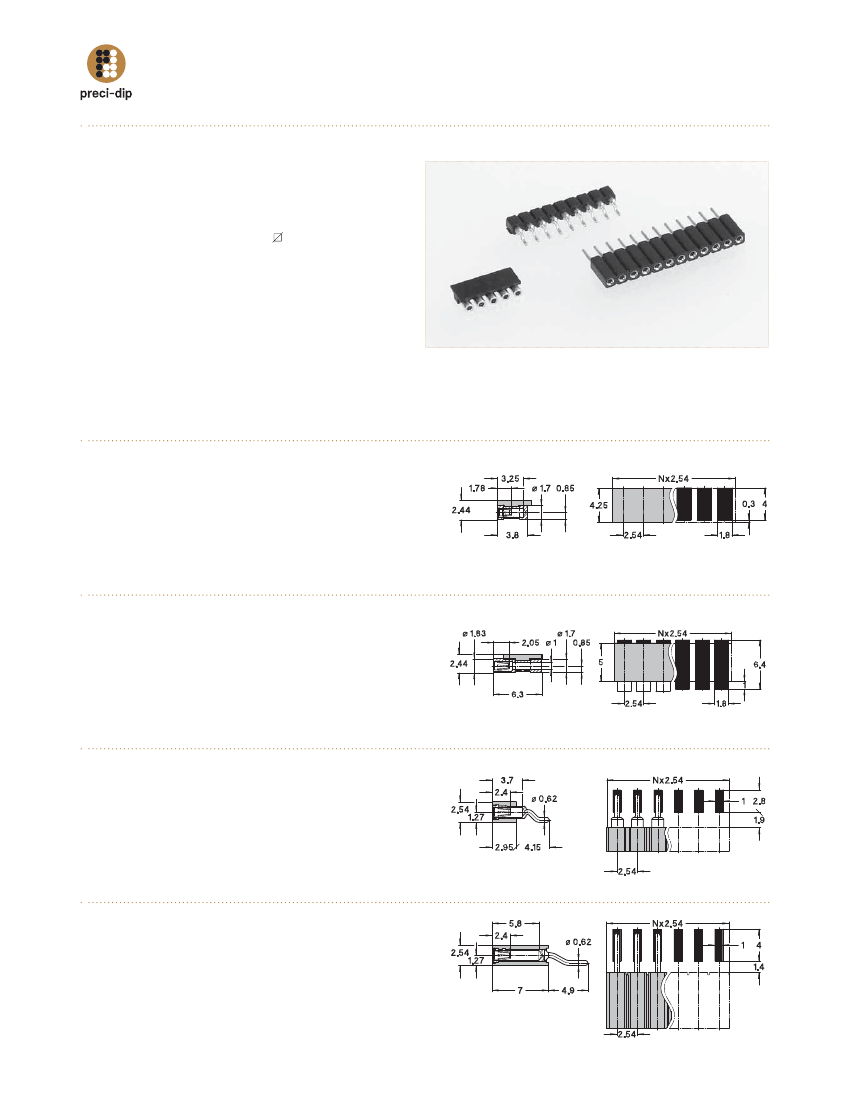

SOCKET CONNECTORS 2.54 mm
MATING PIN Ø 0.76 mm / SINGLE ROW / SURFACE MOUNT
WWW.PRECIDIP.COM
TEL +41 32 421 04 00
SALES@PRECIDIP.COM
Socket connectors, SMD parallel mount.
TECHNICAL SPECIFICATIONS
(FOR GENERAL SPECS, SEE PAGE 43)
INSUL ATOR
FL AMMABILIT Y
SLEEVE
CONTACT CLIP (6 FINGER)
MATING PINS
FORCES
MECHANICAL LIFE
RATED CURRENT
CONTACT RESISTANCE
DIELECTRIC STRENGTH
COPL ANARIT Y
SMD TERMINATIONS
Black glass filled polyester PCT-GF30-FR
UL 94V-O
Brass CuZn36Pb3 (C36000)
Beryllium copper (C17200)
Ø 0.70 to 0.90 mm,
0.635 mm
1.2 N typ. insertion
0.6 N typ. withdrawal
(polished steel gauge Ø 0.76 mm)
Min. 500 cycles
3A
Max. 10 m
Min. 1’000 V
RMS
Max. 0.1 mm (measured on 25 mm long connectors)
For corresponding pin connectors, see pages 109-119.
ORDERING INFORMATION ROHS COMPLIANT PARTS
PP PL ATING CODE
SLEEVE
CLIP
78, 87
Tin
Gold flash
38, 83
Tin
Gold 0.75 μm
Code 78, 38 for 8FM...02-146 series / 87, 83 for 801...40-00X101 series
Bulk :
T & R Packaging with pick & place cap* :
Other plating on request (see page 178 for plating specs).
NNN number of poles.
Replace
NNN
with the requested number of poles,
e.g. 801-87-NNN-40-002101 for a single row version with 8 pins becomes
801-87-008-40-002101.
8FM-PP-0NNN-02-278
8FM-PP-0NNN-02-278191
SMD socket connector, parallel mount, low profile minimum PCB space
requirement, single row
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging with pick & place cap* :
8FM-PP-0NNN-02-146
8FM-PP-0NNN-02-146191
SMD socket connector, parallel mount, low profile minimum PCB space
requirement, single row
AVAIL ABILIT Y FROM
2 to 10 contacts
(standard number of contacts: 10)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging* :
801-PP-NNN-40-002101
8FM-PP-0NNN-02-146191
SMD socket connector, parallel mount, short contact, single row
AVAIL ABILIT Y FROM
2 to 64 contacts
(standard number of contacts: 64)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
Bulk :
T & R Packaging* :
801-PP-NNN-40-001101
8FM-PP-0NNN-02-146191
SMD socket connector, parallel mount, long contact, single row
AVAIL ABILIT Y FROM
2 to 50 contacts
(standard number of contacts: 50)
For connectors having more than 9 contacts,
the coplanarity issue is to be addressed specifically
*Please consult
www.precidip.com
for availability size of tape, size of
reel, number of components per reel and packing units.
96
Due to technical progress, all information provided is subject to change without prior notice.
