RAFIX 16 - Emergency stop pushbutton, round collar,
illuminated
1.30.074.521/0304
Only use universal contact blocks with momentary function.
General information
Actuator
Color of mushroom
Form of collar
Dimensions
Collar dimensions
Collar dimensions
Overall height
Mounting depth
Mounting hole
Mechanical design
Mounting
Contact function
Contact arrangement
Illumination
Reset
Mechanical characteristics
Robustness max.
Robustness
Other specifications
Operating life (operations)
Degree of protection from front side
Operation temperature min.
Ambient temp. operating max. without lamp /
LED
Ambient temp. operating max. with lamp /LED
Storage temperature min.
Storage temperature max.
Environmental restistance
Corresponding to CE Ma-Dir. 89/392
Dupe-proof acc. to DIN EN ISO 13850
ROHS compliant
REACH compliant
mushroom
translucent red
round
ø 24.95 mm
ø 24.95 mm
19.3 mm
44.7 mm
16.2 mm
ring nut
latching
according to contact block
yes
counterclockwise or clockwise rotation
100 N
acc. to IEC 60947-5-5
30,000 cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
+55 °C
-40 °C
+85 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
no
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018

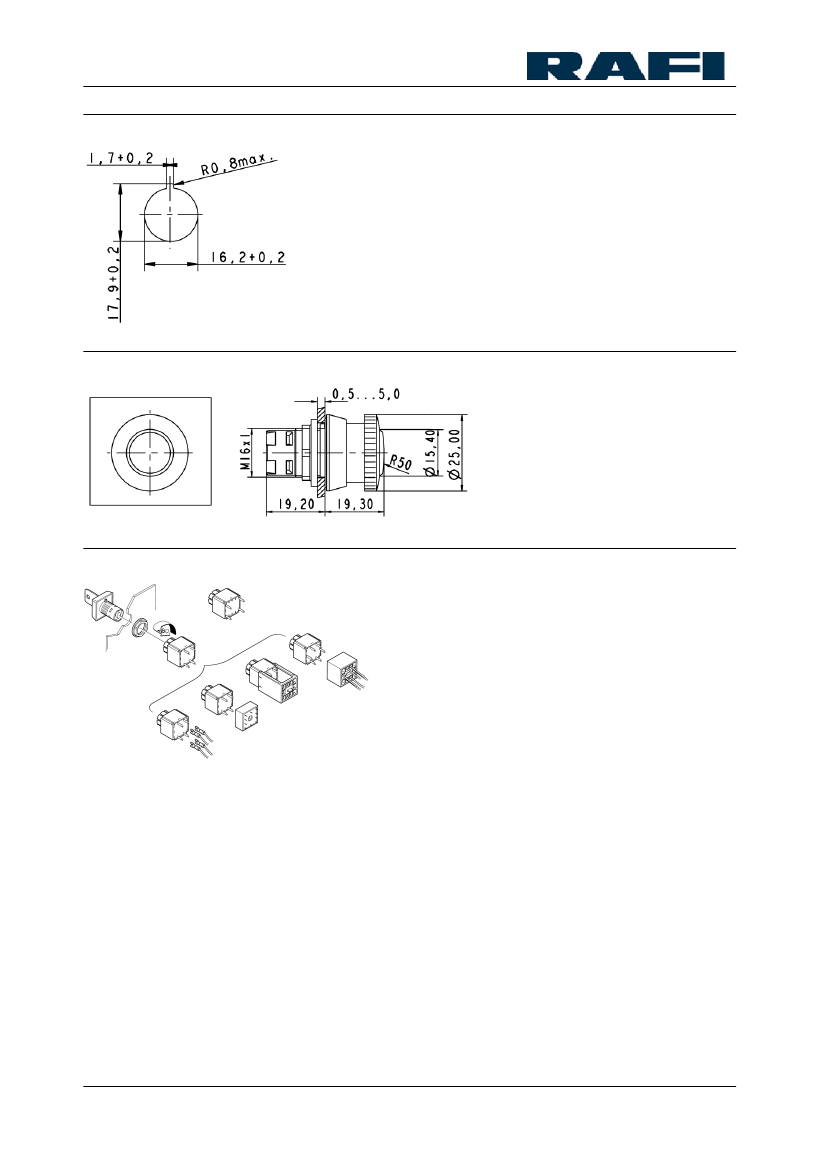

Panel cut-out
