RAFIX 16 - Standard contact block, 2 NO, momentary, gold
contacts, without lamp socket
1.20.122.032/0000
Standard contact blocks have one common contact chamber and one actuator plunger.

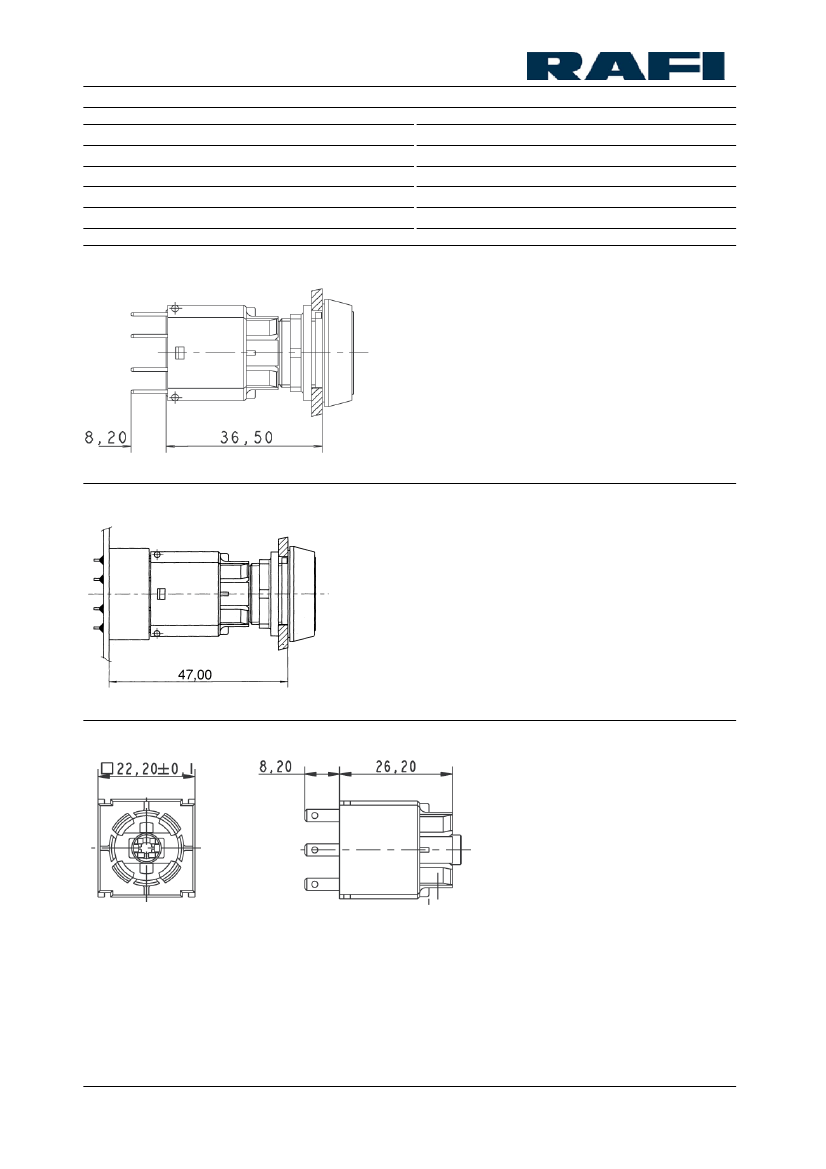

Dimensions
Size not mounted
Mounting depth (with actuator / indicator)

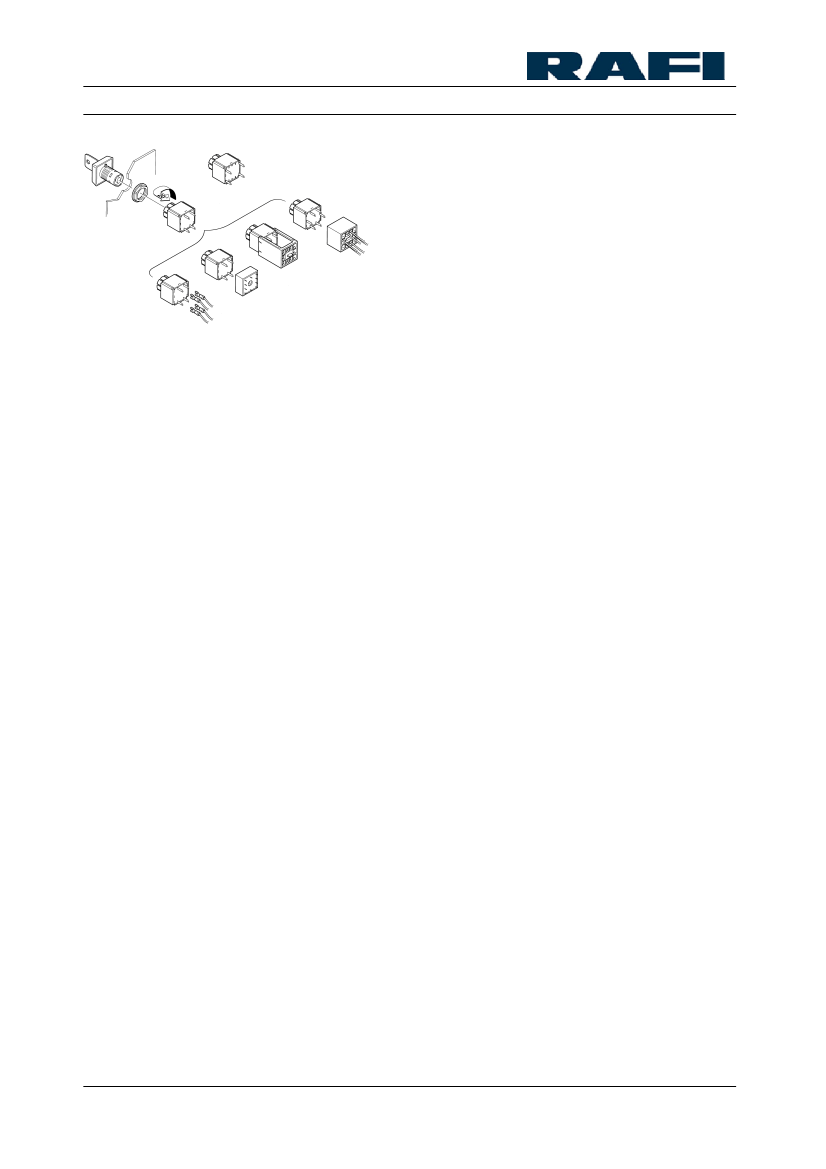

Mechanical design
Mounting
Contact system
Contact materials
Contact arrangement
Contact function
Lamp socket
Terminals
Terminal marking
Operating travel
Robustness
Mechanical characteristics
Robustness
Electrical characteristics
Rated voltage min.
Rated voltage AC/DC max.
Rated current min.
Rated current max.
Operating life switching element (momentary)
Contact resistance when new max.
Other specifications
Protection class
Shock resistance acc. to IEC 60068-2-27
Operation temperature min.
Ambient temp. operating max. without lamp /
LED
Ambient temp. operating max. with lamp /LED
Storage temperature min.
Storage temperature max.
Color code
Environmental restistance
22.2 x 22.2 x 34.4 mm
44.7 mm
snap on actuator
bridge-contact self cleaning
Au
2 NO
momentary
-
quick connector 2.8 x 0.8 mm
according to DIN 50013, NC: 11/12 resp. 21/22, NO: 13/14
resp 23/24, lamp: X1 +, X2 -
3 mm
100 N
acc. to IEC 60947-5-5
0.02 V
35 V
0.001 A
0.25 A
2,000,000
50 mΩ
II
amplitude < 50g, 11ms, half sinusoidal
-25 °C
+70 °C
+55 °C
-40 °C
+85 °C
white bottom
acc. to IEC 60068-2-14, -30, -33 and -78
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
21.05.2018
Mechanical operating life latching (operations)
Resistance to vibrations acc. to IEC 60068-2-6
Flame class acc. to UL 94
ROHS compliant
REACH compliant
with contact block / lamp socket
2,000,000
10 g at 20 ... 500 Hz
yes
yes
yes
yes
