RAFIX 22 QR - Selector switch, non-illuminated, round collar,
long handle
1.30.242.611/0208
Included: Ring nut with claw.
Other handle marking colors available on request.
General information
Actuator
Marking of handle
Color of front ring
Form of collar
Dimensions
Dimensions of collar
Overall height
Mounting depth with contact block without cable
Mounting hole
Mounting grid
Diameter of collar
Mechanical design
Mounting
Contact function
Illumination
Rotating angle
Mechanical characteristics
Operating force max.
Torque max.
Electrical characteristics
Protection class
Other specifications
Operating life (operations)
Degree of protection from front side
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
ROHS compliant
REACH compliant
ø 29.8 mm
22.2 mm
56.4 mm
ø 22.3 mm
50 x 30 mm
29.8 mm
handle
white
silver-grey
round
ring nut
latching
no
1 x 90°, form L
approx. 5 N for 1 switching element
2 Nm
II
500,000 cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
20.05.2018

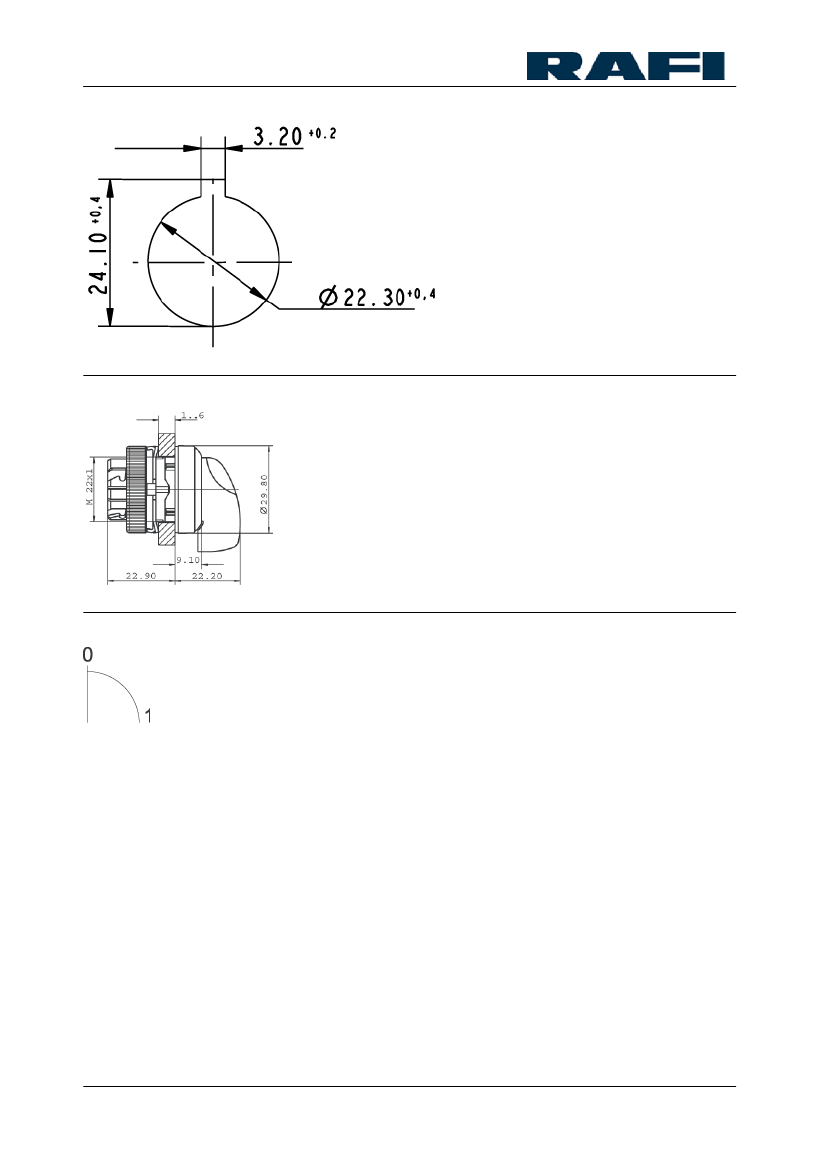

Panel cut-out to IEC 60947-5-1
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
