RAFIX 22 QR - Toggle switch, round collar
1.30.247.502/0200
General information
Actuator
Color of toggle
Color of front ring
Form of collar
Dimensions
Dimensions of collar
Overall height
Mounting depth
Mounting hole
Mounting grid
Mechanical design
Mounting
Contact function
Illmuniabilitiy
Mechanical characteristics
Robustness max.
Electrical characteristics
Protection class
Other specifications
Operating life (operations)
Degree of protection
Storage temperature min.
Storage temperature max.
Environmental restistance
ROHS compliant
REACH compliant
toggle
opaque white
metal
round
ø 29.8 mm
22.2 mm
56.4 mm
ø 22.3 mm
50 x 30 mm
ring nut
latching
no
100 N
-
100,000 cycle
IP54 (DIN EN 60529)
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
20.05.2018

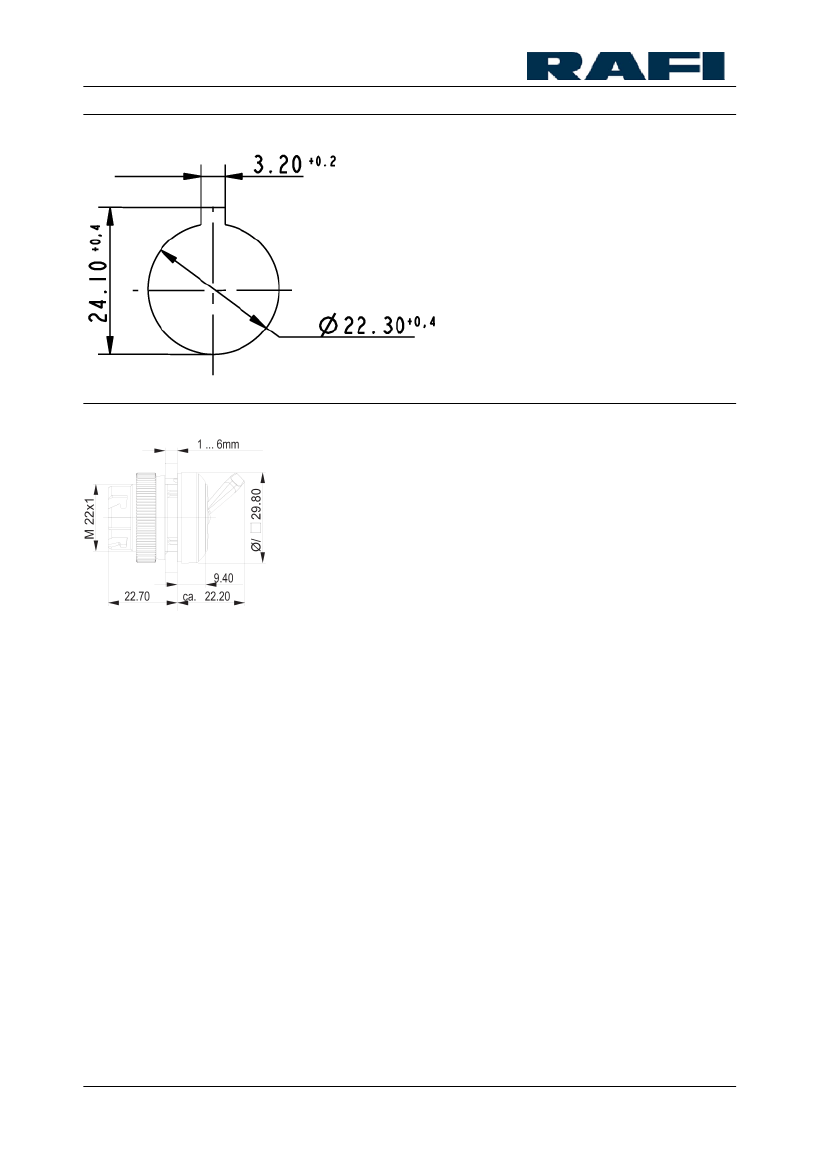

Panel cut-out to IEC 60947-5-1
