1.74.505.551/1600 datasheet, PDF

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 1.74.505.551/1600

1.74.505.551/1600: DescriptionIndustrial Panel Mount Indicators / Switch Indicators RAFIX 22 QR Signal Indicator Blue; CategoryTopical application Mechanical and electrical/engineering/automation; File Size84KB，2 Pages; ManufacturerRAFI; Environmental Compliance

Download Datasheet Parametric View All

1.74.505.551/1600 Overview

Industrial Panel Mount Indicators / Switch Indicators RAFIX 22 QR Signal Indicator Blue

1.74.505.551/1600 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	RAFI
Product Category	Industrial Panel Mount Indicators / Switch Indicators
RoHS	Details
Type	Solid State Indicator
Mounting Style	Panel
Illumination	LED
Height	9.4 mm
Operating Temperature Range	- 25 C to + 70 C
Product	Indicators
Body Shape	Square
Mounting Hole Diameter	22.3 mm
Cap Color	Blue
Factory Pack Quantity	10

Preview

Download Datasheet

View All

21.05.2018

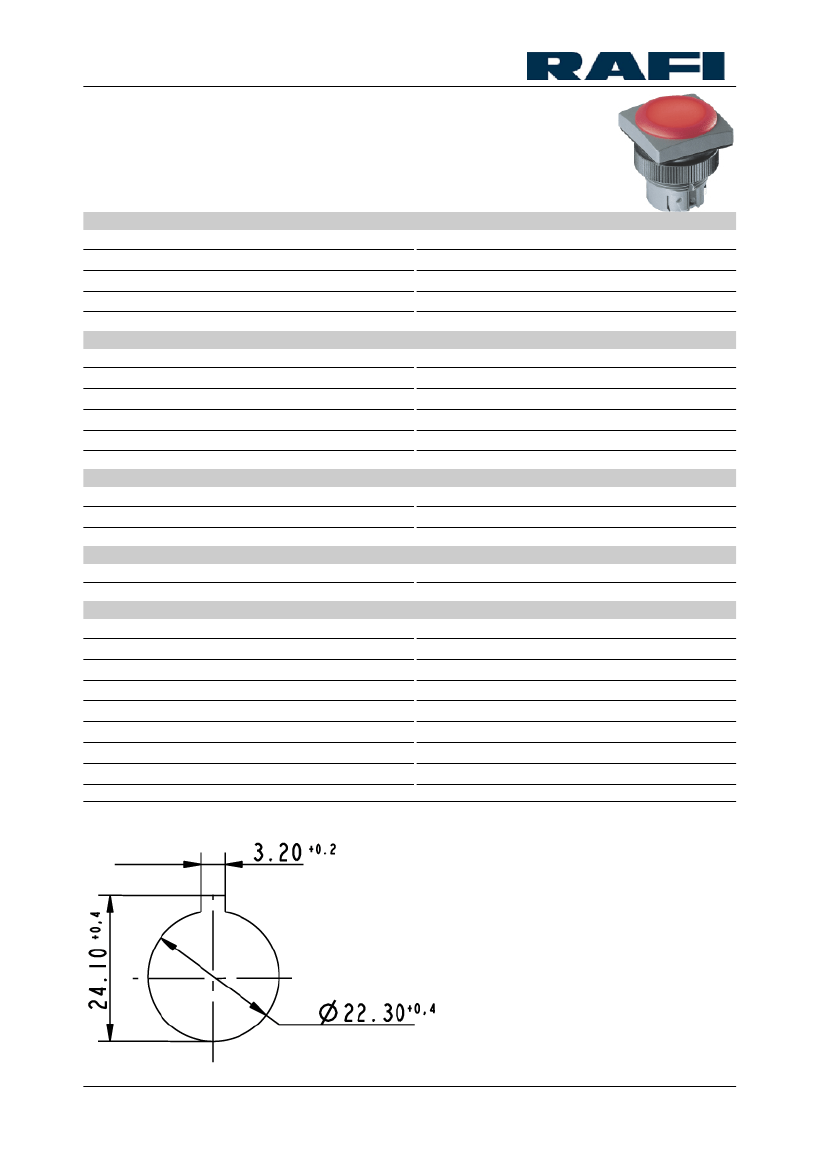

RAFIX 22 QR - Signal indicator, square collar, suitable for

legending

1.74.505.551/1600

General information

Form of lens

Color of lens

Legend insert accomodation

Form of collar

Dimensions

Dimensions of collar

Overall height

Mounting depth

Mounting hole

Mounting grid

Mechanical design

Mounting

Illuminability

Electrical characteristics

Protection class

Other specifications

Degree of protection from front side

Ambient temp. operating min.

Ambient temp. operating max.

Storage temperature min.

Storage temperature max.

Environmental restistance

ROHS compliant

REACH compliant

Panel cut-out to IEC 60947-5-1

flat lens

transparent blue

yes

square

29.8 x 29.8 mm

9.4 mm

56.4 mm

ø 22.3 mm

50 x 30 mm

ring nut

yes

IP65 (DIN EN 60529)

-25 °C

+70 °C

-40 °C

+80 °C

acc. to IEC 60068-2-14, -30, -33 and -78

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.
