0825-3-24-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 0825-3-24-2

0825-3-24-2: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size83KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

0825-3-24-2 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.032 inch Pitch, Surface Mount Terminal, Locking, Receptacle

0825-3-24-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
body width	0.157 inch
subject depth	0.134 inch
body length	0.453 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	200VAC V
Durability	25 Cycles
maximum insertion force	.973 N
Insulation resistance	100000000 Ω
Manufacturer's serial number	0825
Plug contact pitch	0.032 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.81 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.7874 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
Evacuation force-minimum value	.1112 N
Base Number Matches	1

Preview

Download Datasheet

View All

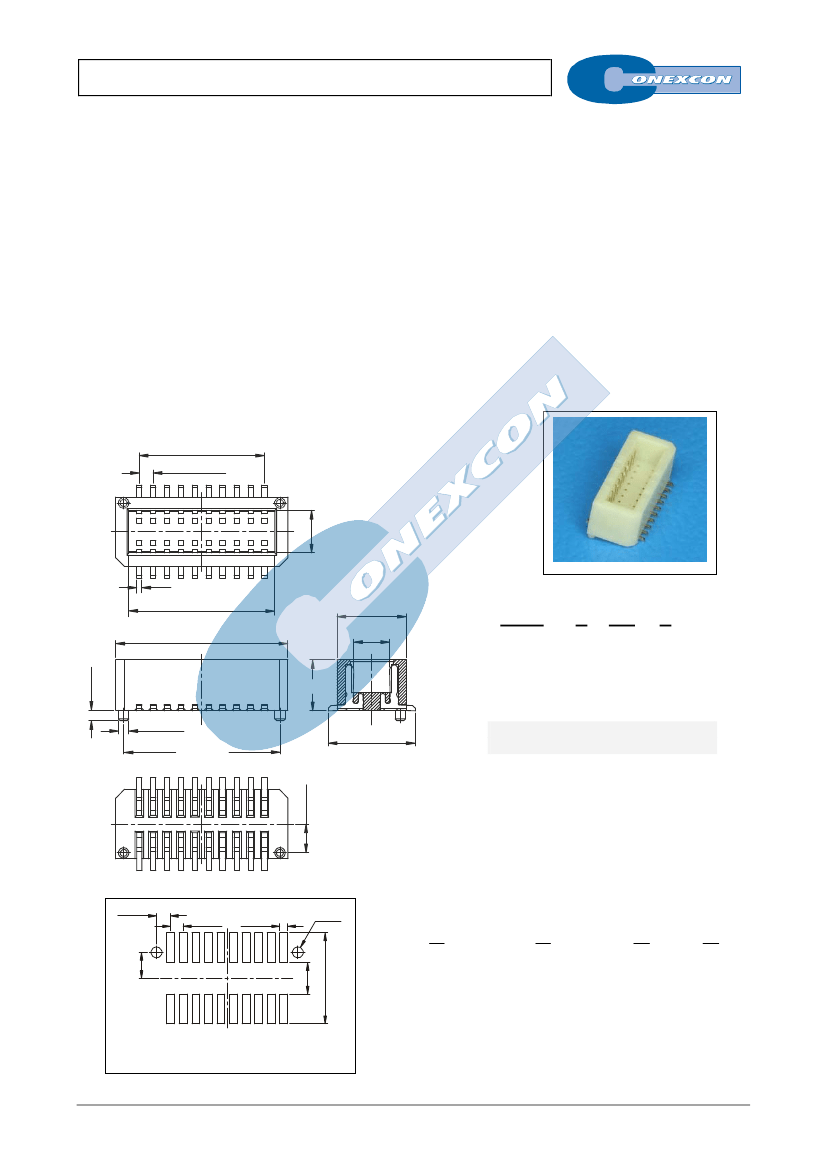

BOARD TO BOARD CONNECTOR RECEPTACLE

0825 SERIES.

0.80 mm. (0.032”) Pitch.

General Features

Electrical Features



Available in 8 through 50 circuits

Mates with plug 0,80 mm pitch 0824 series

With polarized fixing post for PCB

Allows different connection high

Plastic fixing post for alignment of connector pins



Voltage rating: < 50 V

Current rating: < 0,5 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 200 V AC/minute

Insulation resistance: >100 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features

Insertion force receptacle/plug: < 0,10 Kgf/pin

Unmating force receptacle/plug: > 0,01 Kgf/pin

Contact retention force to housing: > 0,10 Kgf/pin

Durability: 25 cycles



Insulator: Polyester Nylon 9T UL 94 V-0

Contact: Phosphor bronze

Operating temperature. -40ºC to +105ºC

RoHS compliant

Dimensional Information

0.80±0.05

0.300

±0.25

±0.05

0.60

2.45

4.00

2.06

0825 -

T- XX- L

±0.15

1. Connector Serie

2. (T) Contacts Plating

ø0.60

5.00±0.25

±0.10

1.65



T =

Gold flash over Ni.

RECOMMENDED FINISH

3. (XX) Number of circuits



Available in 8 to 50 circuits

4. (L) Connector High



L =

H = 2.90 mm.

L =

H = 3.40 mm.

L =

H = 3.90 mm.

0.90

0.80

0.50

ø0.70

Dimensions

0.8















0.40



0.8



1.65











1 .90



0.8













0.8

















2.00

5.80

(XX) = Number of circuits

RECOMMENDED HOLE PATTERN

A-4
