9110-33-203-03 datasheet, PDF - EEWORLD Datasheet

9110-33-203-03: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

9110-33-203-03 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	W/ RETNN. TAIL,MATING L=0.225"
body width	0.22 inch
subject depth	0.23 inch
body length	0.29 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYCARBONATE
Manufacturer's serial number	9100
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.085 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.556 N
Base Number Matches	1

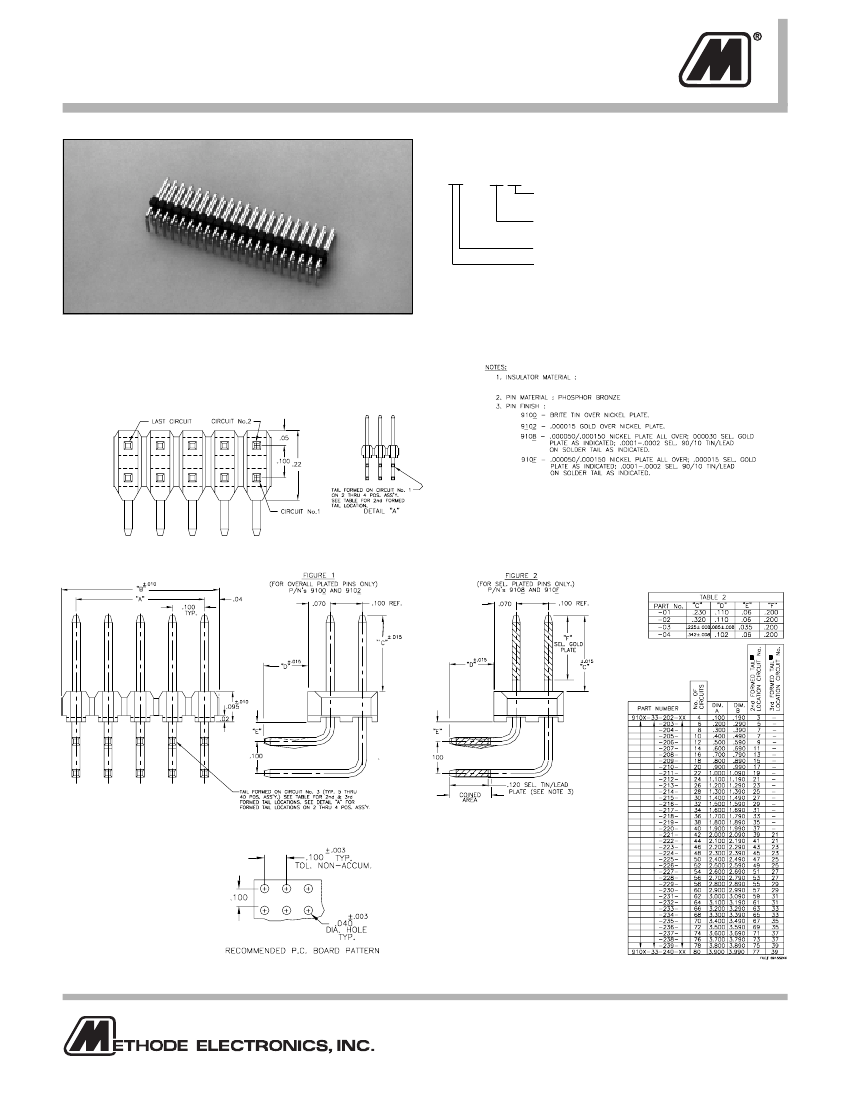

.100” (2.54mm) Dual Row, Through Hole,

Right Angle Header with Retention Tails

9100 SERIES

(“POST/BOXE”)

PART NUMBER LEGEND

91XX-33-2XX-XX

PIN NUMBER

(SEE TABLE 2)

NUMBER OF POSITIONS PER ROW

(SEE TABLE 1)

PIN PLATING

(SEE NOTE 3)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 9000 SERIES

910X - GLASS FILLED POLYESTER (PET); UL 94V-0; COLOR; BLACK

911X - GLASS FILLED POLYESTER (PCT); UL 94V-0; COLOR: BLACK

TABLE 1

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
