Part Number

Search

3.14.001.659/0000

Description
Industrial Panel Mount Indicators / Switch Indicators RF19 Signal indicatr 1 x 1-part black
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size199KB,2 Pages
ManufacturerRAFI
Environmental Compliance
Download Datasheet Parametric View All

3.14.001.659/0000 Overview

Industrial Panel Mount Indicators / Switch Indicators RF19 Signal indicatr 1 x 1-part black

3.14.001.659/0000 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerRAFI
Product CategoryIndustrial Panel Mount Indicators / Switch Indicators
RoHSDetails
TypeSolid State Indicator
Termination StyleSolder
Mounting StylePanel
IlluminationLED
Illumination ColorBlue
Height9.15 mm
Length19.05 mm
Operating Temperature Range- 25 C to + 70 C
ProductIndicators
Body ShapeSquare
Cap ColorBlue
Factory Pack Quantity25
21.05.2018

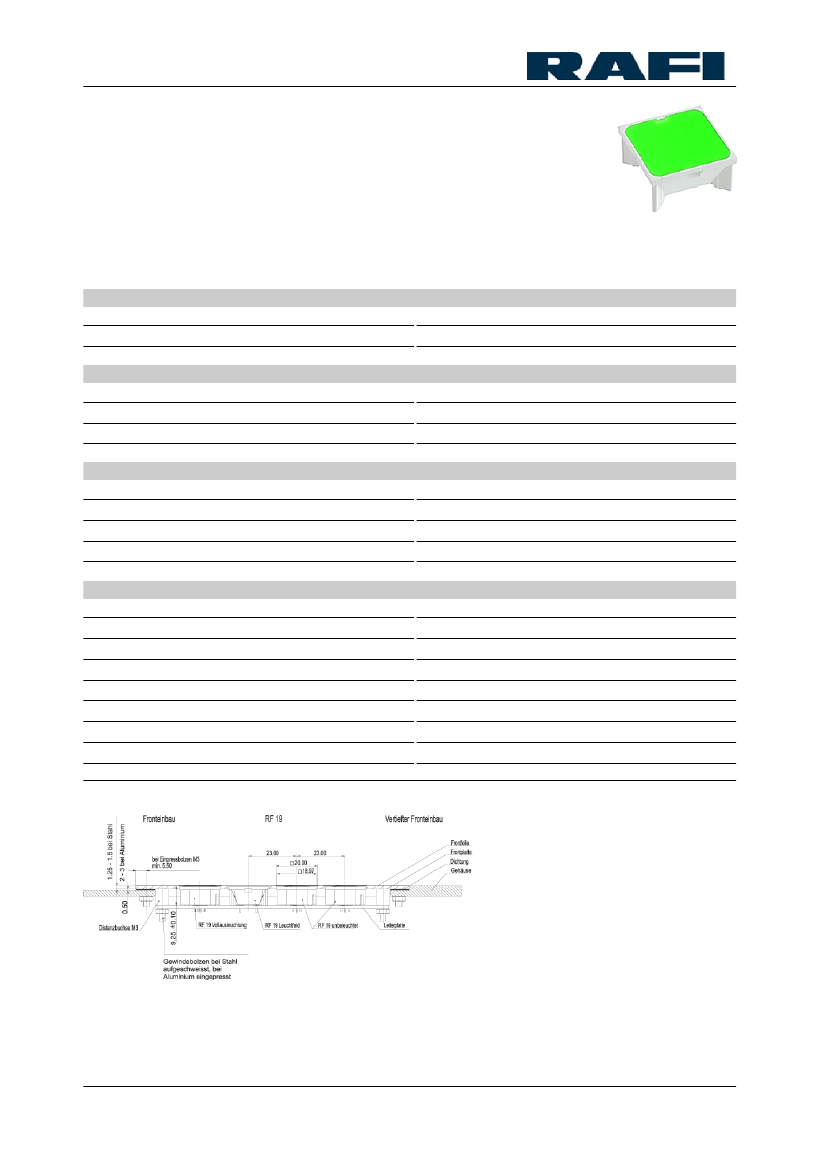

RF 19 - Signal indicator, 1 x 1-module
3.14.001.659/0000
For more information, see LEDs.
Suitable for RK 90 system design, illuminated for 2-module keycap.
General information
Color of lens
Recommended key grid

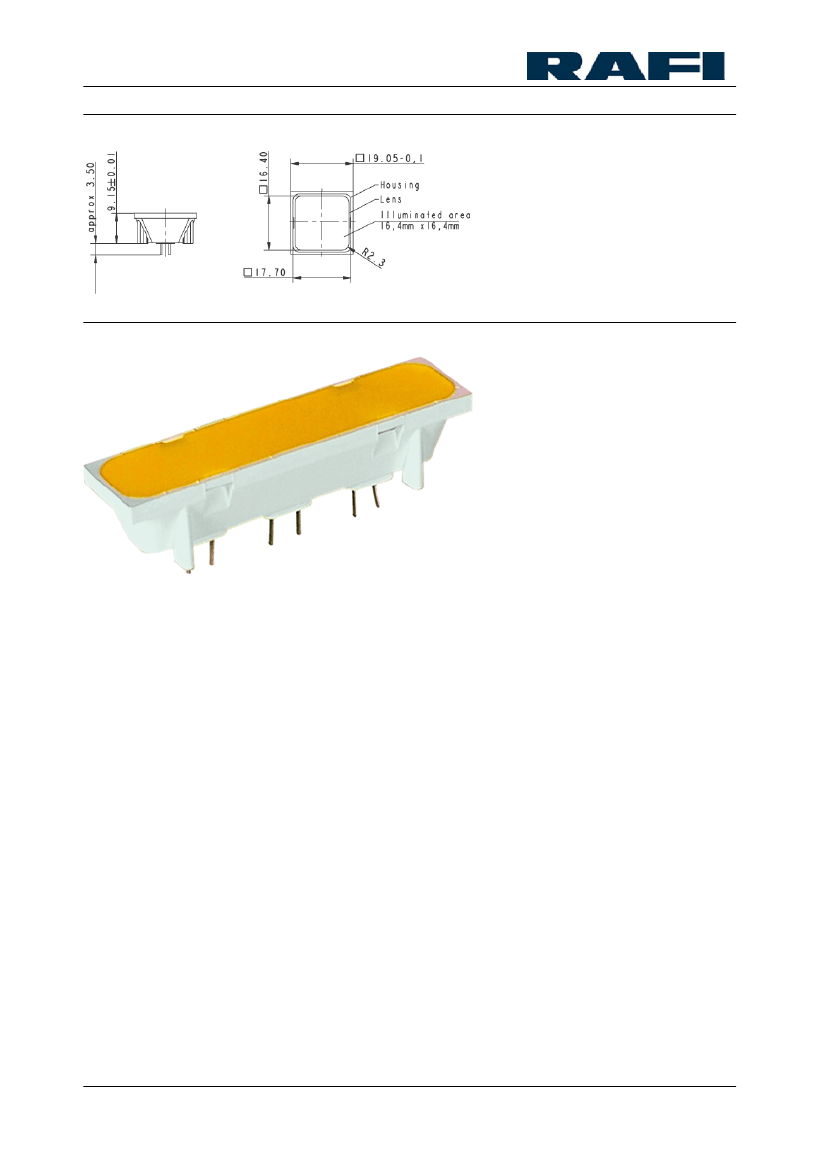

Dimensions
Length
Width
Overall height
Mechanical design
Mounting
Illumination
LED color
LED type
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Environmental restistance
Solderability / solder heat resistance
Wave soldering
Manual soldering
ROHS compliant
REACH compliant
blue
23/x mm
19.05 mm
19.05 mm
9.15 mm
THT soldering in PCB
fully illuminated 2 LED
blue
2 mm
-25 °C
+70 °C
acc. to IEC 60068-2-14, -30, -33 and -78
according to DIN EN 60068-2-20
260 °C max.
350 °C / 5 sec. max.
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
