1ED44176N01FXUMA1

Description
Driver 1-OUT Low Side Non-Inv 8-Pin DSO T/R
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size802KB,20 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

1ED44176N01FXUMA1 Online Shopping

Suppliers Part Number Price MOQ In stock
1ED44176N01FXUMA1 - - View Buy Now

1ED44176N01FXUMA1 Overview

Driver 1-OUT Low Side Non-Inv 8-Pin DSO T/R

1ED44176N01FXUMA1 Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
HTS8542.31.00.01
Driver TypeLow Side
Driver ConfigurationNon-Inverting
Number of Drivers1
TypeIGBT|MOSFET
Number of Outputs1
Maximum Rise Time (ns)70
Maximum Fall Time (ns)35
Maximum Propagation Delay Time (ns)95
Input Logic CompatibilityCMOS|LSTTL|TTL
Minimum Operating Supply Voltage (V)12.7
Maximum Operating Supply Voltage (V)20
Typical Input Low Threshold Voltage (V)1
Typical Input High Threshold Voltage (V)2.1
Maximum Power Dissipation (mW)625
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)125
Special FeaturesUnder Voltage Lockout
Latch-Up ProofNo
PackagingTape and Reel
Supplier PackageDSO
Pin Count8
MountingSurface Mount
Package Height1.65(Max)
Package Length5(Max)
Package Width4(Max)
PCB changed8
1ED44176N01F
Features
Single-channel low-side gate driver IC with over-current protection
Potential applications
Digitally controlled PFC
Air conditioner
Home appliances
Industrial applications
General purpose low-side gate driver for single-ended
topologies
Over-current detection with positive voltage input
0.5 V over-current threshold with accurate ±5%
tolerance
Single pin for fault output and enable
Programmable fault clear time
Under voltage lockout
CMOS Schmitt-triggered inputs
3.3 V, 5 V and 15 V input logic compatible
Output in phase with input
Separate logic and power ground
2 kV ESD HBM
RoHS compliant
Evaluation board available:
EVAL-1ED44176N01F
Description
The 1ED44176N01F is a low-voltage, power MOSFET and IGBT non-inverting gate driver. Proprietary latch immune CMOS
technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL
output. The output driver features a current buffer stage. The 1ED44176N01F has OCP pin for over current protection
sense and a FAULT status output (Once it is active,
EN/FLT
pin is internally pulled down.). There is a dedicated pin (FLTC)
to program fault clear time. The
EN/FLT
needs to be outside pulled up to provide normal operation, pulling
EN/FLT
low
disable the driver. Internal circuitry on VCC pin provides an under voltage lockout protection that holds output low until
Vcc supply voltage is within operating range.
Vout
Vin
VCC
Vdd
I/O1
I/O2
1ED44176N01F
IN
EN/FLT
FLTC
VCC
VSS
OUT
COM
µC
Gnd
OCP
(Refer to lead assignments for correct
pin configuration). This diagram show
electrical connections only. Please refer
to our application notes and design tips
for proper circuit board layout.

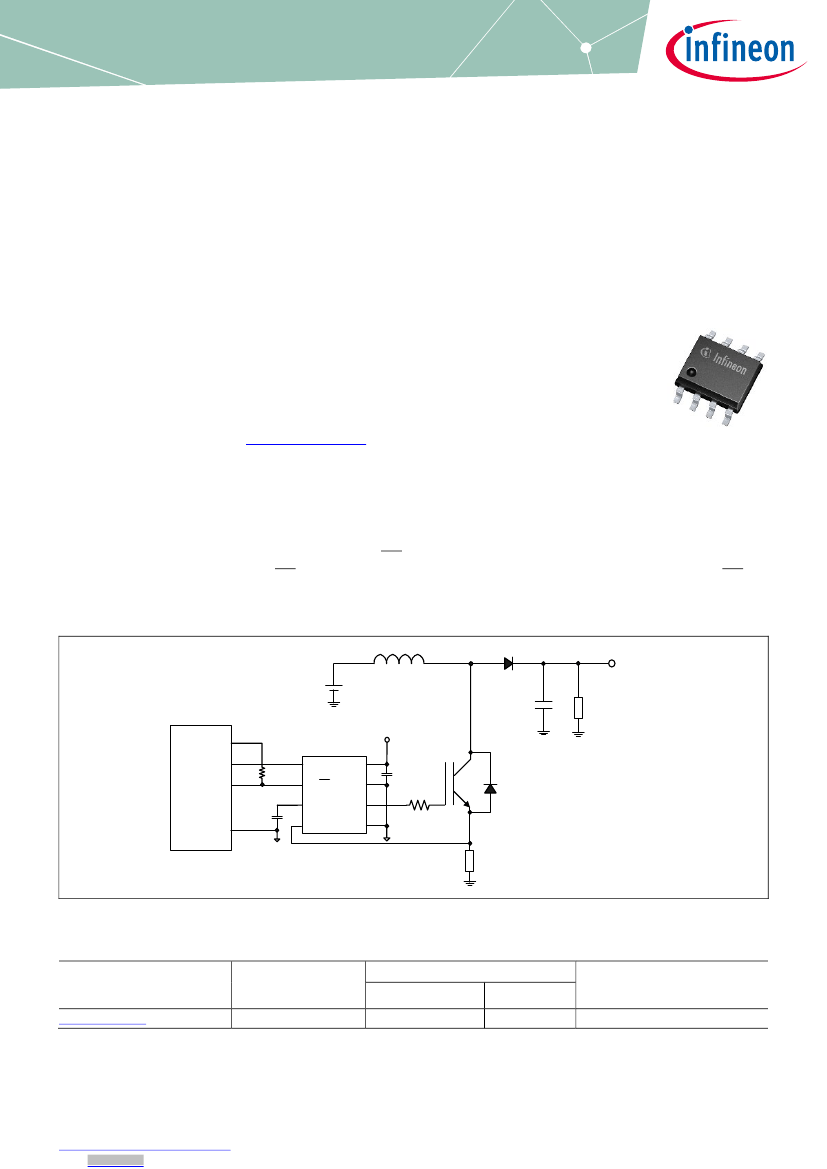

Figure 1
Typical application
Ordering information
Product type
1ED44176N01F
Package
PG-DSO-8
Standard pack
Form
Tape and Reel
Orderable part number
Quantity
2500
1ED44176N01FXUMA1
Product validation
Qualified for industrial applications according to the relevant tests of JEDEC JESD47/22 and J-STD-020.
Datasheet
Please read the Important Notice and Warnings at the end of this document
www.infineon.com/gdLowSide
1 of 20
V 2.1
2019-06-13

1ED44176N01FXUMA1 Related Products

1ED44176N01FXUMA1 1ED44176N01F
Description Driver 1-OUT Low Side Non-Inv 8-Pin DSO T/R Driver 1-OUT Low Side Non-Inv 8-Pin DSO T/R
EU restricts the use of certain hazardous substances Compliant Compliant
ECCN (US) EAR99 EAR99
Part Status Active Active
Driver Type Low Side Low Side
Driver Configuration Non-Inverting Non-Inverting
Number of Drivers 1 1
Type IGBT|MOSFET MOSFET|IGBT
Number of Outputs 1 1
Maximum Rise Time (ns) 70 70
Maximum Fall Time (ns) 35 35
Maximum Propagation Delay Time (ns) 95 95
Input Logic Compatibility CMOS|LSTTL|TTL CMOS|LSTTL|TTL
Minimum Operating Supply Voltage (V) 12.7 12.7
Maximum Operating Supply Voltage (V) 20 20
Typical Input Low Threshold Voltage (V) 1 1
Typical Input High Threshold Voltage (V) 2.1 2.1
Maximum Power Dissipation (mW) 625 625
Minimum Operating Temperature (°C) -40 -40
Maximum Operating Temperature (°C) 125 125
Special Features Under Voltage Lockout Under Voltage Lockout
Latch-Up Proof No No
Packaging Tape and Reel Tape and Reel
Supplier Package DSO DSO
Pin Count 8 8
Mounting Surface Mount Surface Mount
Package Height 1.65(Max) 1.65(Max)
Package Length 5(Max) 5(Max)
Package Width 4(Max) 4(Max)
PCB changed 8 8
