310-43-001-30-010800: DescriptionHeaders & Wire Housings STANDARD SOCKET HEADER; CategoryThe connector terminals; File Size416KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

310-43-001-30-010800 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	310-43-001-30-010800	-	-	View	Buy Now

310-43-001-30-010800 Overview

Headers & Wire Housings STANDARD SOCKET HEADER

310-43-001-30-010800 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

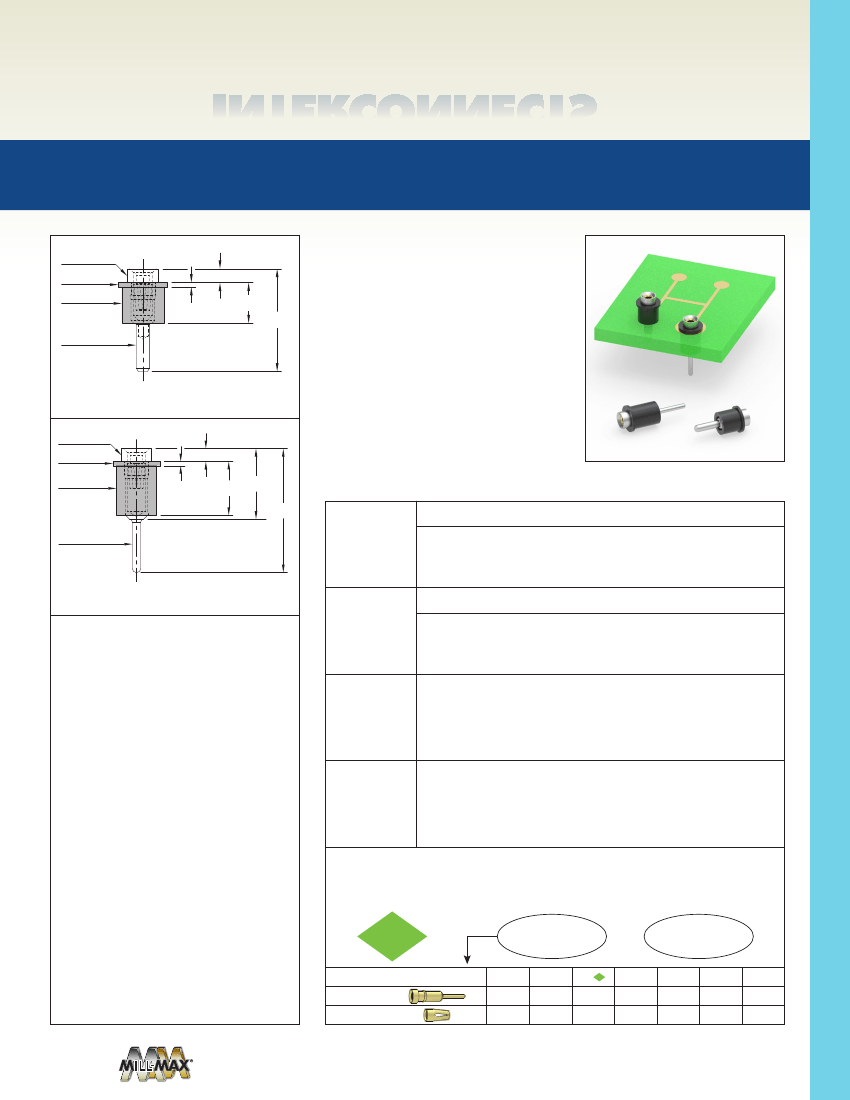

INTERCONNECTS

SERIES 305, 310

DISCRETE INSULATED RECEPTACLES

•

.070 DIA.

.110 DIA.

.094 DIA.

.010

.030 DIA.

.031

.090

.230

Series 305 and 310 single position insulated

parts are offered in standard and low profile styles

305-43-001-30-010800 uses pin #0501-0

310-43-001-30-010800 uses pin #1001-0

See pages 162 and 165 for details

•

FIG. 1

.070 DIA.

.110 DIA.

.094 DIA.

.010

.030

.126

.165

.290

.020 DIA.

Insulated terminals are used to electrically isolate

single pin interconnects in an assembly. The plastic

sleeve provides insulation of the terminal from

nearby conductive components or for applications

such as mounting through a metal panel or other

non-insulated housing. The sleeve also facilities

the handling of small, individual terminals and can

provide mechanical support for pins mounted on

or through printed circuit boards

Insulators are high temperature thermoplastic,

suitable for most soldering operations

•

ORDERING INFORMATION

Series 305...010800

Receptacle with Sleeve

FIG. 1

FIG. 2

305-43-001-30-010800

Series 310...010800

Receptacle with Sleeve

310-43-001-30-010800

Insulating Sleeve tolerance:

± .003

Packaging: Bulk

RoHS - 2

2011/65/EU

XX=Plating Code

See Below

43

200

μ”

Sn

For

Electrical, Mechanical

& Enviromental Data,

See page 264

SPECIFY PLATING CODE XX=

Sleeve (Pin)

Contact (Clip)

30

μ”

Au

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 87.2 | INTERCONNECTS

SPECIFICATIONS:
