D-Subminiature Connectors

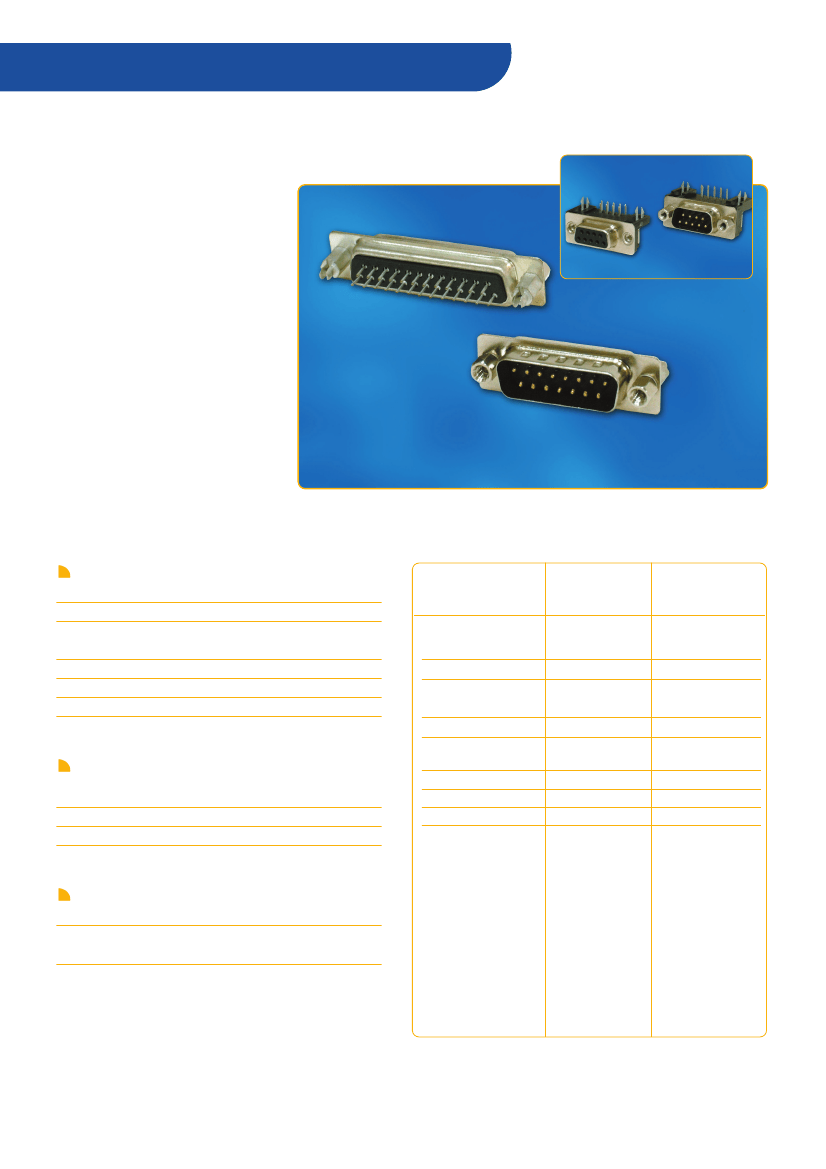

DESCRIPTION
FCI's D-Subminiature connectors are
part of an industry standard for appli-
cations requiring robust and reliable
connectors. These D-Subminiature
connectors are one of the most
popular Input - Output interconnects,
addressing a wide variety of applica-
tions in Telecommunications, Data,
Consumer, Industrial, Military,
Instrumentation and Medical markets.
Since many years FCI offers a wide
range of D-Subminiature connectors
to meet all design requirements,
and to address increasing needs
for proven connectors for less
demanding applications, FCI
developed the D-Subminiature
Economy Range.
TECHNICAL DATA
Electrical Performance
Current rating
Rated Voltage
Contact Resistance
Insulation resistance
Dielectric Strength
Operating temp range
:5A
: 250 V
: 25 m
Ω
(Max) Initial &
40 m
Ω
(Max) After
: >5000 M
Ω
: 1000 Vrms
: -55ºC to +105ºC
PERFORMANCE SELECTION CHART
FCI Economy
Range
Receptacle contact
Durability (cycles)
Operating Temp (°C)
Rated Voltage
Torque for
Female Clinch nut
Accessory options
PCB thickness
Vibration
Target applications
Brass
50
- 55°C to
+105°C
250 V
0.5 Nm
3
1.6 mm
10G
Set Top Box,
Consumer
devices,
Control devices,
Energy Meters,
Datacom,
Dot matrix
printers,
Desktop PC
FCI Std
Delta-D
Phosphor
Bronze
200 / 500
- 55°C to
+125°C
300 V
0.7 Nm
24+
1.6 and 2.4 mm
20G
Communications
(Base station,
Switching,
Transmission,
Routers, ADSL),
Medical,
Instrumentation,
Transportation
(Non
Automotive),
Power Supplies,
Robotics
Material
Insulator
Contact
Shell
: Glass Filled Thermoplastic
(UL 94V-0) Black
: Copper Alloy
: SPCC steel
Mechanical Performance
Mating/Unmating cycles : 50
Insertion/Extraction force per contact :
5 NMax / 0.3 NMin
www.fci.com/dsub
3
D-Subminiature Connectors

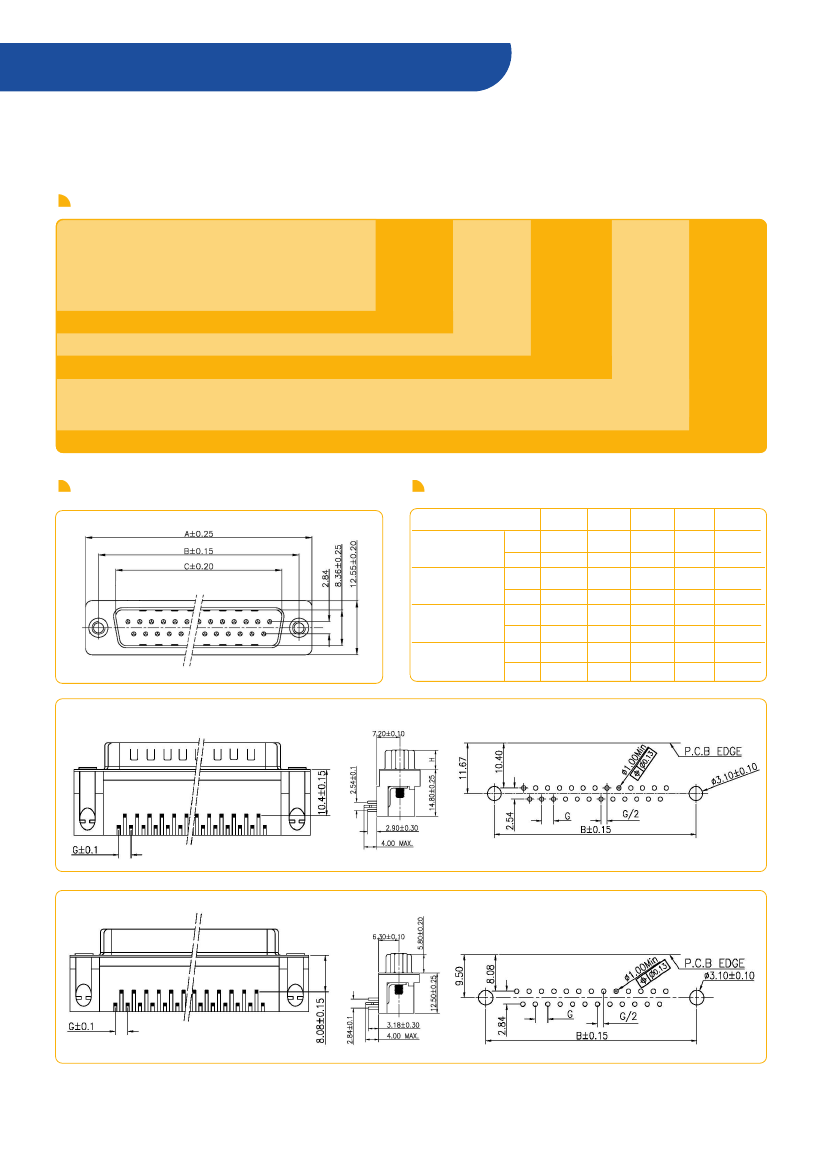

D-SUB (ECONOMY) RIGHT ANGLE
ORDERING INFORMATION
Series
10090097:
10090099:
10090767:
10090768:
Gender
No: of contacts
Durability
Mounting options
Male-US Style
Female -US Style
Male -Europe Style
Female-Europe Style
P :
Pin
S :
Socket
P
YY
4
X
LF
09 - 15 - 25 - 37
50 cycles
X :
UNC 4-40 Clinch nuts with Board locks
L :
M3 Clinch nuts with Board locks
V :
UNC 4-40 Screw locks with Board locks
RoHS compliant
RoHS status
DIMENSION
DIMENSIONS (in mm)
No. of Contacts
9
15
25
37
P
S
P
S
P
S
P
S
A
30.81
30.81
39.24
39.24
53.04
53.04
69.32
69.32
B
24.99
24.99
33.32
33.32
47.04
47.04
63.5
63.5
C
16.92
16.33
25.25
24.66
38.96
38.38
55.42
54.84
G
2.74
2.74
2.74
2.74
2.77
2.77
2.77
2.77
H
5.9
+0.15
5.8
5.9
+0.15
5.8
5.7
+0.25
5.8
5.7
+0.25
5.8
EUROPE Style
PCB layout
US Style
PCB layout
4
www.fci.com/dsub
D-Subminiature Connectors

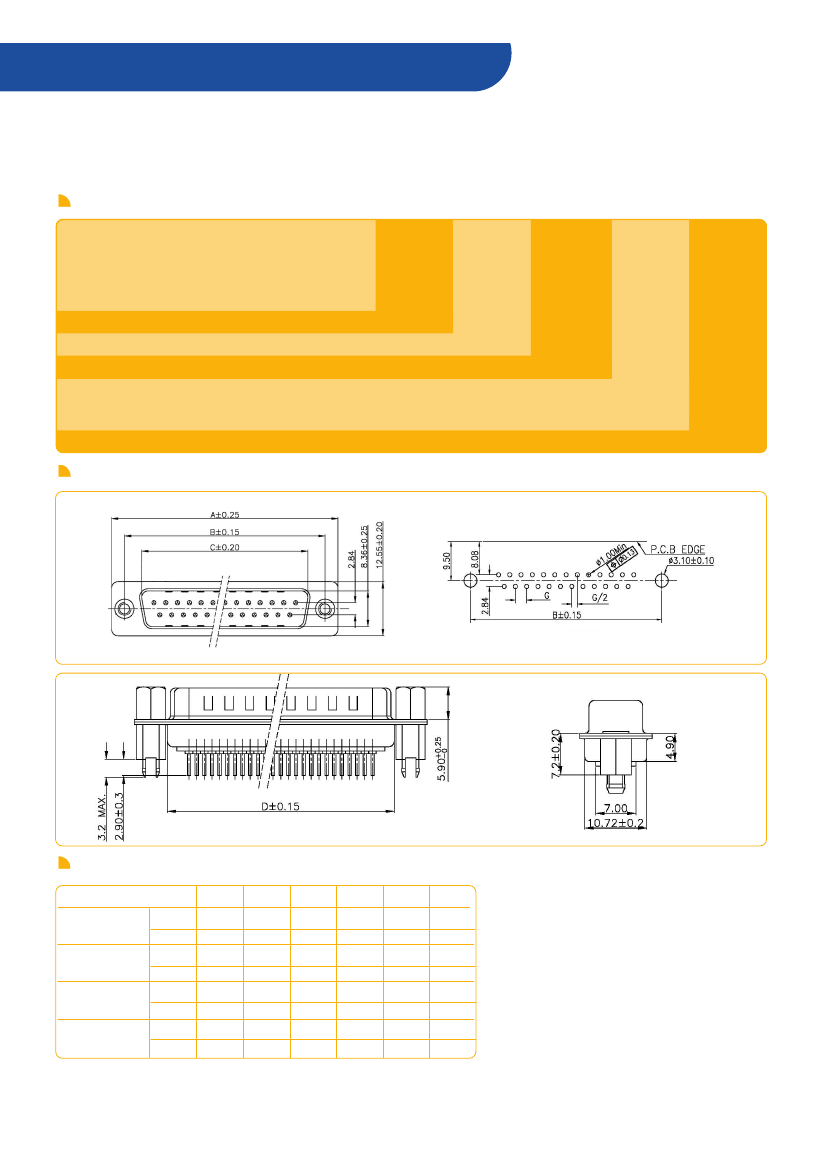

D-SUB (ECONOMY) STRAIGHT
ORDERING INFORMATION
Series
10090096: Male Straight
10090098: Female Straight
P
YY
4
X
LF
Gender
No: of contacts
Durability
Mounting options
P :
Pin
S :
Socket
09 - 15 - 25 - 37
50 cycles
X :
UNC 4-40 Clinch nuts with Board locks
L :
M3 Clinch nuts with Board locks
V :
UNC 4-40 Screw locks with Board locks
RoHS compliant
RoHS status
DIMENSION
PCB layout
DIMENSIONS (in mm)
No. of Contacts
9
15
25
37
P
S
P
S
P
S
P
S
A
30.81
30.81
39.24
39.24
53.04
53.04
69.32
69.32
B
24.99
24.99
33.32
33.32
47.04
47.04
63.5
63.5
C
16.92
16.33
25.25
24.66
38.96
38.38
55.42
54.84
D
19.28
19.28
27.65
27.75
41.10
41.30
57.44
57.40
G
2.74
2.74
2.74
2.74
2.77
2.77
2.77
2.77
H
5.9
+0.15
5.8
5.9
+0.15
5.8
5.7
+0.25
5.8
5.7
+0.25
5.8
www.fci.com/dsub
