RDC1742513

Description
SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32
CategoryAnalog mixed-signal IC    converter
File Size1018KB，9 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

RDC1742513 Overview

SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32

RDC1742513 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP,
Contacts32
Reach Compliance Codeunknow
Other features11.8V REFERENCE INPUT
Maximum analog input voltage11.8 V
Maximum angular accuracy8.5 arc mi
Converter typeSYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 codeR-MDIP-P32
JESD-609 codee0
length44.2 mm
Maximum negative supply voltage-15.75 V
Minimum negative supply voltage-14.25 V
Nominal negative supply voltage-15 V
Number of digits12
Number of functions1
Number of terminals32
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialMETAL
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusCOMMERCIAL
Maximum seat height8.289 mm
Signal/output frequency400 Hz
Maximum supply voltage15.75 V
Minimum supply voltage14.25 V
Nominal supply voltage15 V
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formPIN/PEG
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum tracking rate18 rps
width22.86 mm
Base Number Matches1

Preview

Download Datasheet

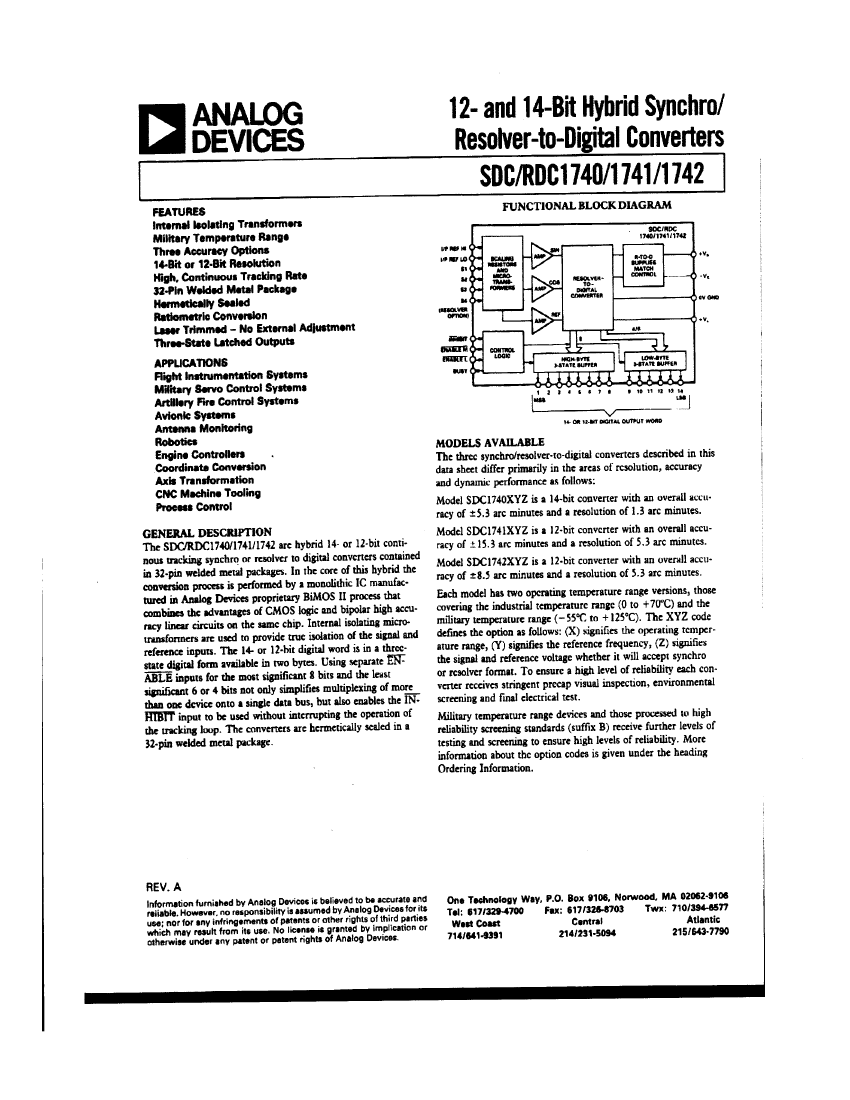

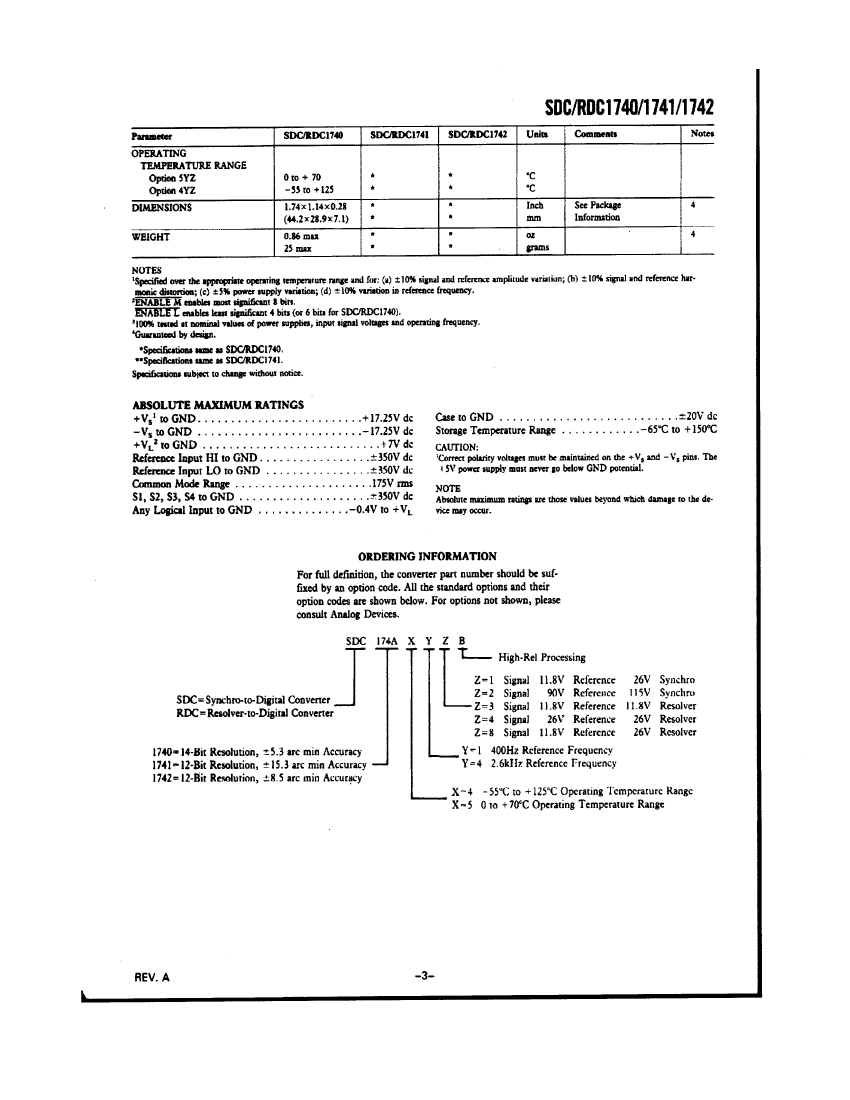

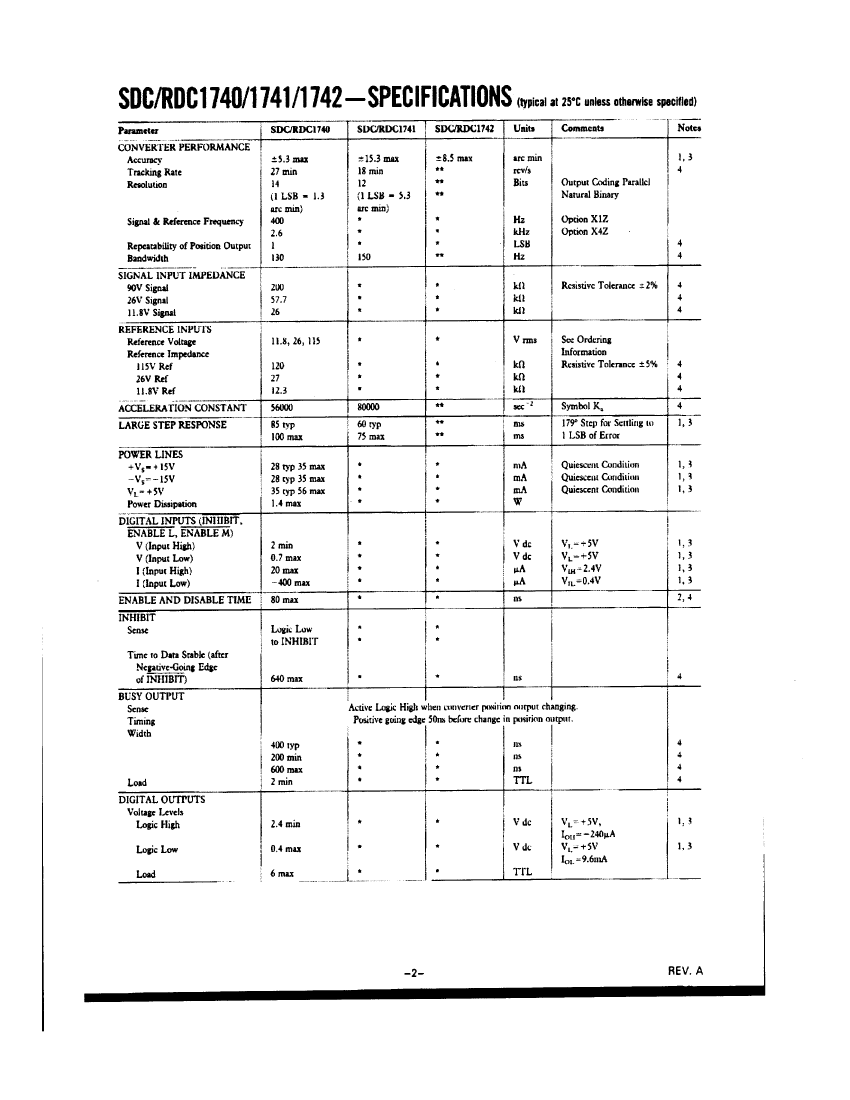

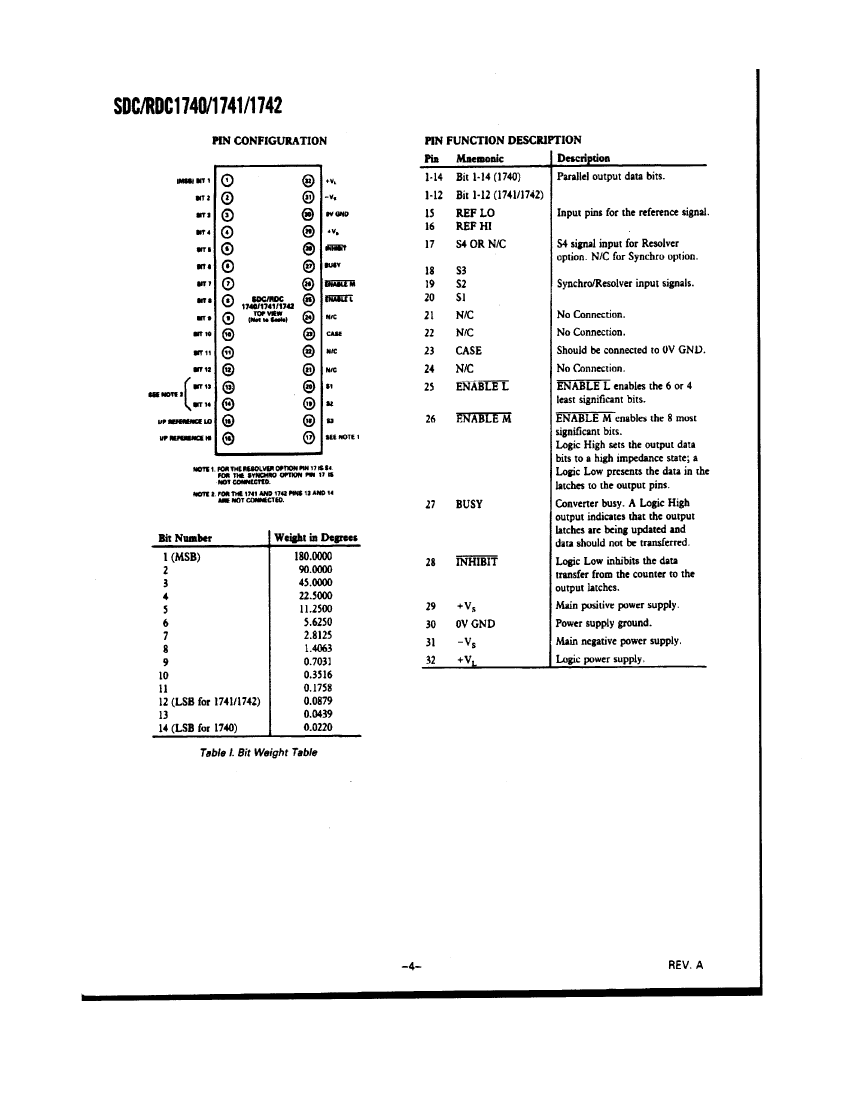

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec

RDC1742513 Related Products

RDC1742513 SDC1740512 805-017-22Z115-220SA 0805AA224ZA13A SDC1740511 RDC1740513 RDC1741513 RDC1741518
Description SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 Circular Connector, 20 Contact(s), Stainless Steel, Female, Solder Terminal, Receptacle, High Voltage MLC Chips SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, MDIP32, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32
Is it lead-free? Contains lead Contains lead - - Lead free Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible conform to - - incompatible - incompatible
Parts packaging code DIP DIP - - DIP DIP DIP DIP
package instruction DIP, 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 - - 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32 1.740 X 1.140 INCH, 0.280 INCH HEIGHT, HERMETIC SEALED, METAL PACKAGE-32
Contacts 32 32 - - 32 32 32 32
Reach Compliance Code unknow unknown compliant - unknown unknown unknown unknown
Other features 11.8V REFERENCE INPUT 115V REFERENCE INPUT - - 26V REFERENCE INPUT 11.8V REFERENCE INPUT 11.8V REFERENCE INPUT 26V REFERENCE INPUT
Maximum analog input voltage 11.8 V 90 V - - 11.8 V 11.8 V 11.8 V 11.8 V
Maximum angular accuracy 8.5 arc mi 5.3 arc min - - 5.3 arc min 5.3 arc min 15.3 arc min 15.3 arc min
Converter type SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER - - SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code R-MDIP-P32 R-MDIP-P32 - - R-MDIP-P32 R-MDIP-P32 R-MDIP-P32 R-MDIP-P32
JESD-609 code e0 e0 - - e0 e0 e0 e0
length 44.2 mm 44.2 mm - - 44.2 mm 44.2 mm 44.2 mm 44.2 mm
Maximum negative supply voltage -15.75 V -15.75 V - - -15.75 V -15.75 V -15.75 V -15.75 V
Minimum negative supply voltage -14.25 V -14.25 V - - -14.25 V -14.25 V -14.25 V -14.25 V
Nominal negative supply voltage -15 V -15 V - - -15 V -15 V -15 V -15 V
Number of digits 12 14 - - 14 14 12 12
Number of functions 1 1 - - 1 1 1 1
Number of terminals 32 32 - - 32 32 32 32
Maximum operating temperature 70 °C 70 °C - - 70 °C 70 °C 70 °C 70 °C
Package body material METAL METAL - - METAL METAL METAL METAL
encapsulated code DIP DIP - - DIP DIP DIP DIP
Package shape RECTANGULAR RECTANGULAR - - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE IN-LINE - - IN-LINE IN-LINE IN-LINE IN-LINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status COMMERCIAL COMMERCIAL - - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Maximum seat height 8.289 mm 8.289 mm - - 8.289 mm 8.289 mm 8.289 mm 8.289 mm
Signal/output frequency 400 Hz 400 Hz - - 400 Hz 400 Hz 400 Hz 400 Hz
Maximum supply voltage 15.75 V 15.75 V - - 15.75 V 15.75 V 15.75 V 15.75 V
Minimum supply voltage 14.25 V 14.25 V - - 14.25 V 14.25 V 14.25 V 14.25 V
Nominal supply voltage 15 V 15 V - - 15 V 15 V 15 V 15 V
surface mount NO NO - - NO NO NO NO
technology HYBRID HYBRID - - HYBRID HYBRID HYBRID HYBRID
Temperature level COMMERCIAL COMMERCIAL - - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface TIN LEAD TIN LEAD - - TIN LEAD TIN LEAD TIN LEAD TIN LEAD
Terminal form PIN/PEG PIN/PEG - - PIN/PEG PIN/PEG PIN/PEG PIN/PEG
Terminal pitch 2.54 mm 2.54 mm - - 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Terminal location DUAL DUAL - - DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum tracking rate 18 rps 27 rps - - 27 rps 27 rps 18 rps 18 rps
width 22.86 mm 22.86 mm - - 22.86 mm 22.86 mm 22.86 mm 22.86 mm
Humidity sensitivity level - NOT SPECIFIED - - NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
