033436: DescriptionBoard Euro Connector, 128 Contact(s), 4 Row(s), Male, Right Angle, Press Fit Terminal,; CategoryThe connector The connector; File Size250KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

033436 Overview

Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Right Angle, Press Fit Terminal,

033436 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Other features	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	YES
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	128
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

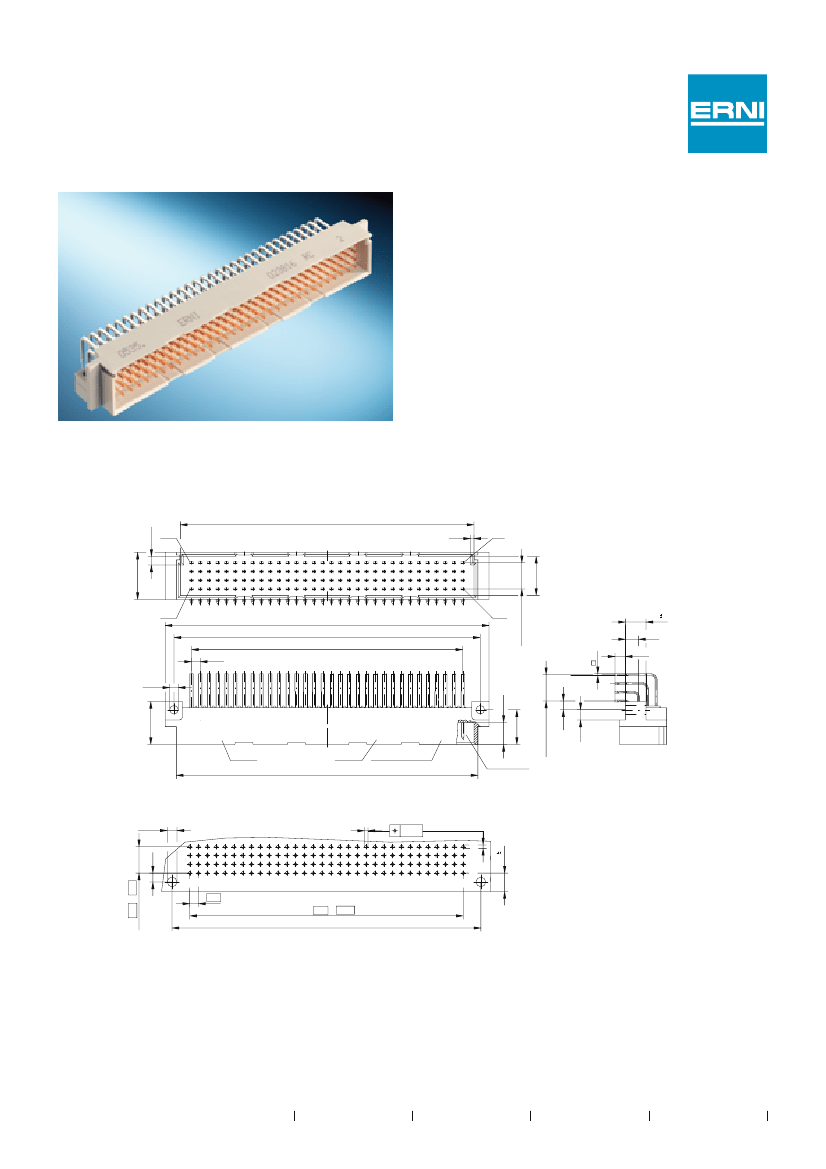

DIN 41612 / IEC 60603-2 Connectors

Type CD Male

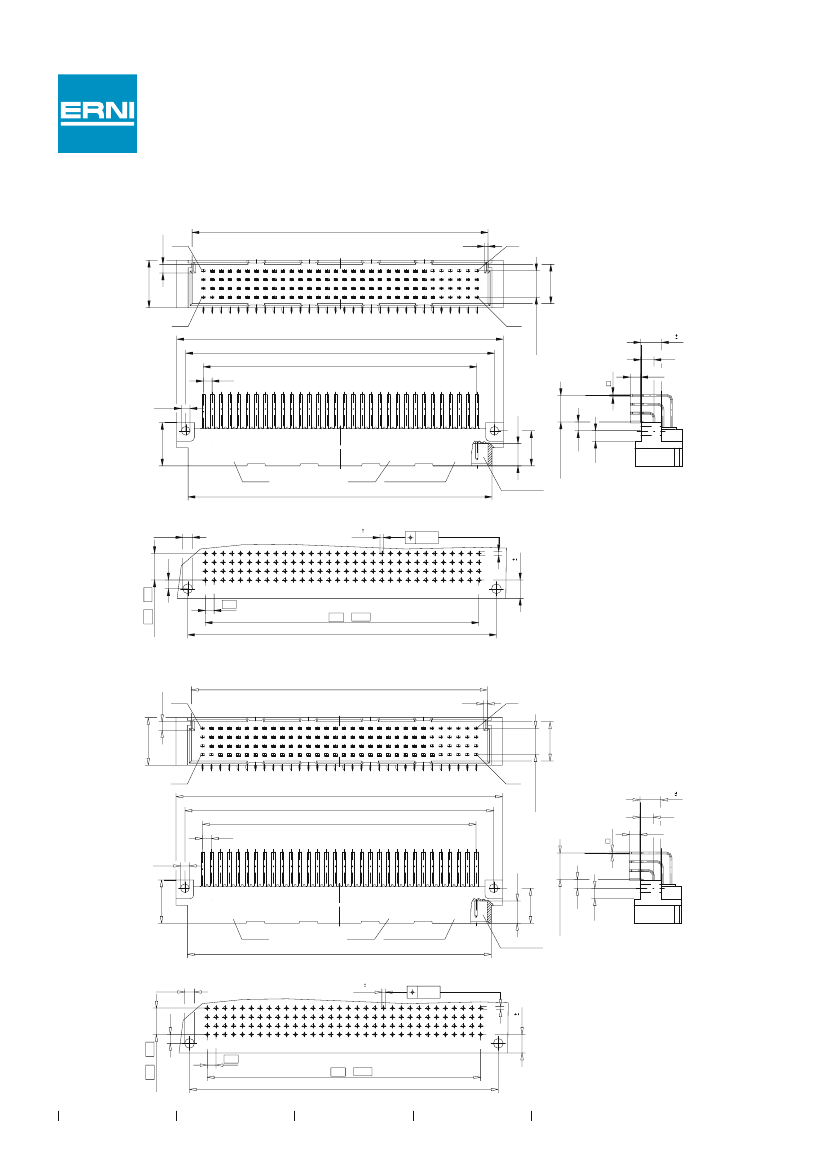

Dimensional Drawing Pressfit

85,2

-0,2

d 32

-0,1

13,7 max.

2,5

+0,2

a 32

94 max.

88,9

31 x 2,54 = 78,74

2,54

7,62

11,3

3 x 2,54 =

3,85

0,1

+0,1

2,5

-0,1

6,4

3 x 2,54 = 7,62

12,5

10,2

-0,2

2,54

0,6

-0,4

+0,1

Datum

date

87,5

Id.-Nr.

Anforderungstufe

class

Stecklänge

mating length

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

0,05

alle Löcher/

all holes

0,1

+ 0,09

- 0,06

Durchmesser

+ 0,09

- 0,06

Diameter

2,8

ø 1,0

XXXX

ERNI

XXXXXX

des metallisierten Loches

2,54

5,3

of finished plated-through hole

ø 1,15

0,025

Bohrungsdurchmesser des Loches

ø 1,15

0,025

Diameter of drilled hole

7,62

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

3 x 2,54 =

2,54

31 x 2,54 = 78,74

88,9

102

Catalog E 074558

03/06

Edition 1

www.erni.com

033436 Related Products

	033436	033298	913767	154959
Description	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Right Angle, Press Fit Terminal,	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 128 Contact(s), 4 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	unknown	compliant	compli
Other features	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	4	4	4	4
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	PRESS FIT	SOLDER	SOLDER	SOLDER
Total number of contacts	128	128	128	128
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Maker	-	ERNI	ERNI	ERNI
Manufacturer's serial number	-	033298	913767	154959
