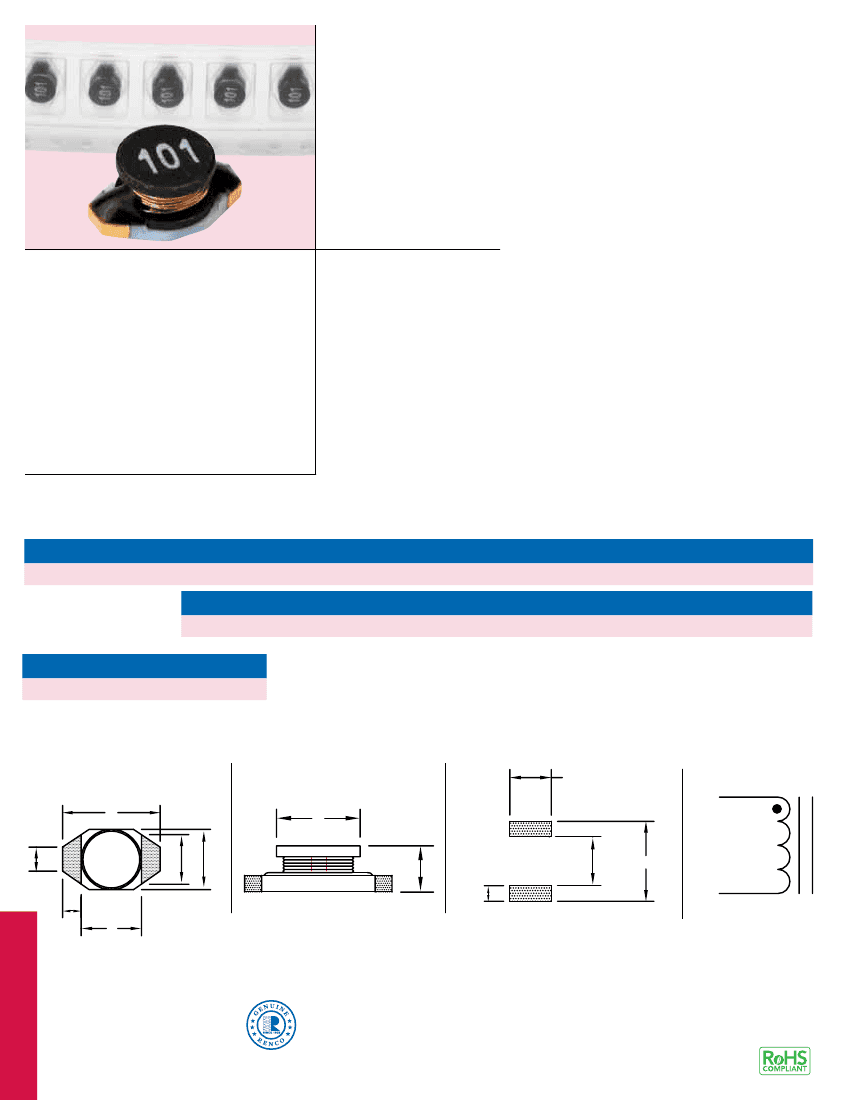

RL-1608
DESCRIPTION
• SMD Power Inductor
SMD POWER INDUCTORS
FEATURES & APPLICATIONS
• Small package with a footprint of 0.26” X 0.175”
• Low-cost, high-energy storage and low resistance make it ideal
for communications, computer and converter applications
• Specifically designed with a flat top for reliable pick and place
operations
• Available in 19 values with inductance ratings from 1.0 µH to
1.0 mH and currents up to 2.9 A
ENVIRONMENTAL DATA
•
•
Storage temperature range:
-55°C to +130°C
Operating temperature range:
-40°C to +130°C
PACKAGING INFORMATION
• Packaging information: pg. 489
Verify operation with sample in actual circuit. Order samples at www.rencousa.com.
MECHANICAL DIMENSIONS
U.S. Standard (mm)
PART NUMBER
RL-1608
A (MAX.)
0.260 (6.60)
B
0.050 (1.27)
C
0.040 (1.02)
D
0.170 (4.32)
E
0.120 (3.05)
F (MAX.)
0.175 (4.45)
G
0.155 (3.94)
H (MAX.)
0.155 (3.94)
I (REF.)
0.140 (3.56)
J (REF.)
0.160 (4.06)
K (REF.)
0.270 (6.86)
L (REF.)
0.055 (1.40)
PART NUMBER
RL-1608
PART WEIGHT
0.25g (0.009oz)
TOP VIEW
SIDE VIEW
RECOMMENDED LAND PATTERN
I
SCHEMATIC
ST
A
G
B
E
F
H
L
J
K
FN
C
D
SURFACE MOUNTS
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
RL-1608
Renco Part No.
RL-1608
RL-1608-1.0
RL-1608-1.5
RL-1608-2.2
RL-1608-3.3
RL-1608-4.7
RL-1608-6.8
RL-1608-10
RL-1608-15
RL-1608-22
RL-1608-33
RL-1608-47
RL-1608-68
RL-1608-100
RL-1608-150
RL-1608-220
RL-1608-330
RL-1608-470
RL-1608-680
RL-1608-1000
Inductance
(µH)
1.0
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
33.0
47.0
68.0
100.0
150.0
220.0
330.0
470.0
680.0
1000.0
DCR Max.
(Ohms)
0.05
0.05
0.07
0.08
0.09
0.13
0.16
0.23
0.37
0.51
0.64
0.86
1.27
2.00
3.11
3.80
5.06
9.20
13.80
Isat
(A)
2.90
2.60
2.30
2.00
1.50
1.20
1.10
0.90
0.70
0.58
0.50
0.40
0.31
0.27
0.22
0.18
0.16
0.14
0.10
Irms
(A)
2.90
2.80
2.40
2.00
1.50
1.40
1.10
1.20
0.80
0.60
0.50
0.40
0.30
0.25
0.20
0.16
0.15
0.12
0.07
SRF Typ.
(MHz)
130.0
115.0
90.0
70.0
50.0
45.0
35.0
30.0
20.0
15.0
14.0
11.0
9.0
6.0
5.5
5.0
4.0
3.0
2.0
NOTES:
1. INDUCTANCE ±20% TESTED AT 100 kHz, 0.1 Vrms
2. ELECTRICAL SPECIFICATIONS MEASURED AT 25ºC
3. Isat - DC CURRENT THAT WILL CAUSE INDUCTANCE TO DROP BY 10%
4. Irms - CURRENT THAT CAUSES THE TEMPERATURE TO RISE APPROX. 40ºC ABOVE AMBIENT OF 25ºC
RENCO ELECTRONICS INC.
595 International Place, Rockledge, FL 32955-4200 USA • www.rencousa.com • ISO 9001 Certified
Toll Free
Engineering Hot Line: 800.645.5828 • P: 321.637.1000 • F: 321.637.1600
SURFACE MOUNTS
