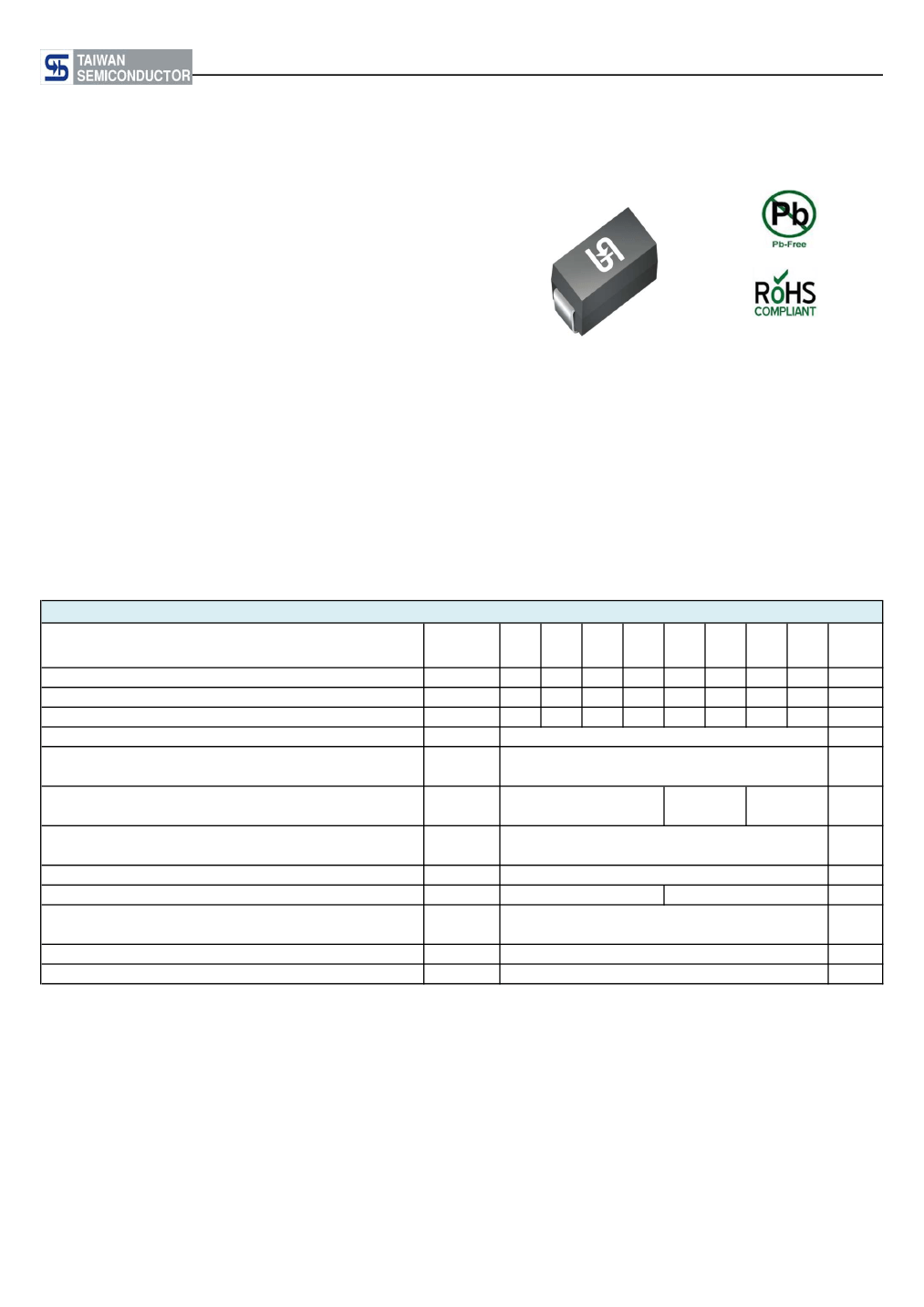

ES2AA - ES2JA
Taiwan Semiconductor
CREAT BY ART
2A, 50V - 600V Surface Mount Super Fast Rectifiers
FEATURES
- Glass passivated junction chip
- Ideal for automated placement
- Low profile package
- Built-in strain relief
- Super fast recovery time for high efficiency
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
DO-214AC (SMA)
MECHANICAL DATA
Case:
DO-214AC (SMA)
Molding compound, UL flammability classification rating 94V-0
Moisture sensitivity level: level 1, per J-STD-020
Part No. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
Indicated by cathode band
Weight:
0.06 g (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-wave
superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
@2A
Maximum reverse current @ rated V
R
Maximum reverse recovery time (Note 2)
Typical junction capacitance (Note 3)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
Note 2: Reverse Recovery Test Conditions: I
F
=0.5A, I
R
=1.0A, I
RR
=0.25A
Note 3: Measured at 1 MHz and Applied V
R
=4.0 Volts
T
J
=25°C
T
J
=125°C
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
I
R
t
rr
C
J
R
θJL
R
θJA
T
J
T
STG
25
20
75
- 55 to +150
- 55 to +150
0.95
10
350
35
20
ES
2AA
50
35
50
ES
2BA
100
70
100
ES
2CA
150
105
150
ES
2DA
200
140
200
2
50
1.3
1.7
ES
2FA
300
210
300
ES
400
280
400
ES
500
350
500
ES
2JA
600
420
600
2GA 2HA
UNIT
V
V
V
A
A
V
μA
ns
pF
°C/W
°C
°C
Document Number: DS_D1411071
Version: L15
ES2AA - ES2JA
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PART NO.
SUFFIX
PACKING
CODE
R3
R2
ES2xA
(Note 1)
H
M2
F3
F2
F4
N/A
E3
E2
G
PACKING CODE
SUFFIX
SMA
SMA
SMA
Folded SMA
Folded SMA
Folded SMA
Clip SMA
Clip SMA
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Paper reel
7,500 / 13" Plastic reel
1,800 / 7" Plastic reel
7,500 / 13" Plastic reel
PACKAGE
PACKING
Note 1: "xx" defines voltage from 50V (ES2AA) to 600V (ES2JA)
EXAMPLE
PREFERRED P/N
ES2JAHR3G
PART NO.
ES2JA
PART NO.
SUFFIX
H
PACKING CODE
R3
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound

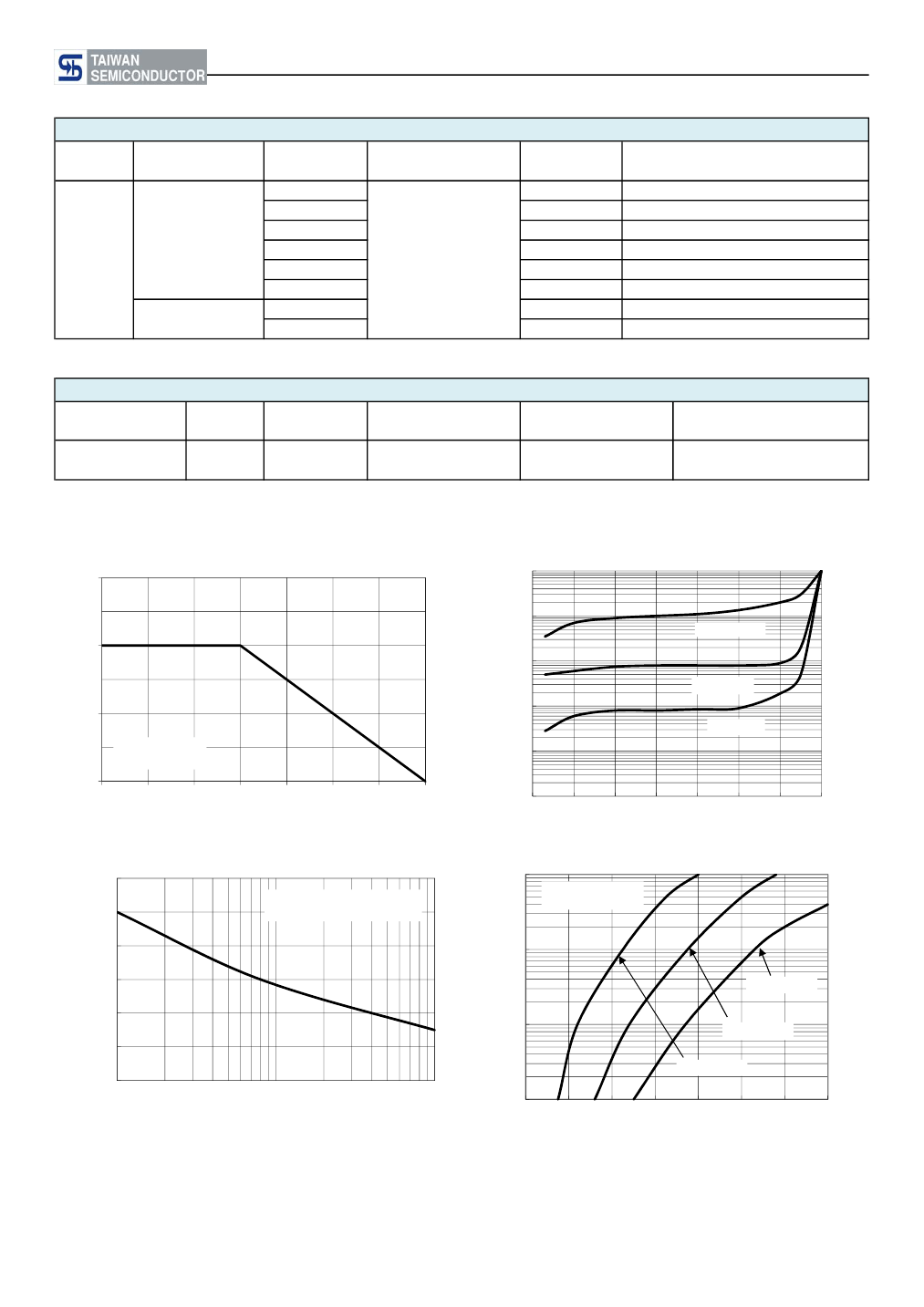

RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
3
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
1000
AVERAGE FORWARD CURRENT (A)
INSTANTANEOUS REVERSE CURRENT (μA)
100
T
J
=125
o
C
10
T
J
=75
o
C
1
T
J
=25
o
C
0.1
2
1
RESISTER OR
INDUCTIVE LOAD
0
80
90
100
110
120
130
140
150
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
LEAD TEMPERATURE (
°
C)
PEAK FORWARD SURGE CURRENT (A)
60
50
40
30
20
10
0
1
FIG. 3 MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 4 TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
Pulse Width=300μs
1% Duty Cycle
8.3ms Single Half Sine Wave
1
ES2HA-2JA
0.1
ES2FA-2GA
ES2AA-2DA
0.01
0.4
0.6
0.8
1
1.2
1.4
FORWARD VOLTAGE (V)
1.6
1.8
10
NUMBER OF CYCLES AT 60 Hz
100
Document Number: DS_D1411071
Version: L15
ES2AA - ES2JA
Taiwan Semiconductor

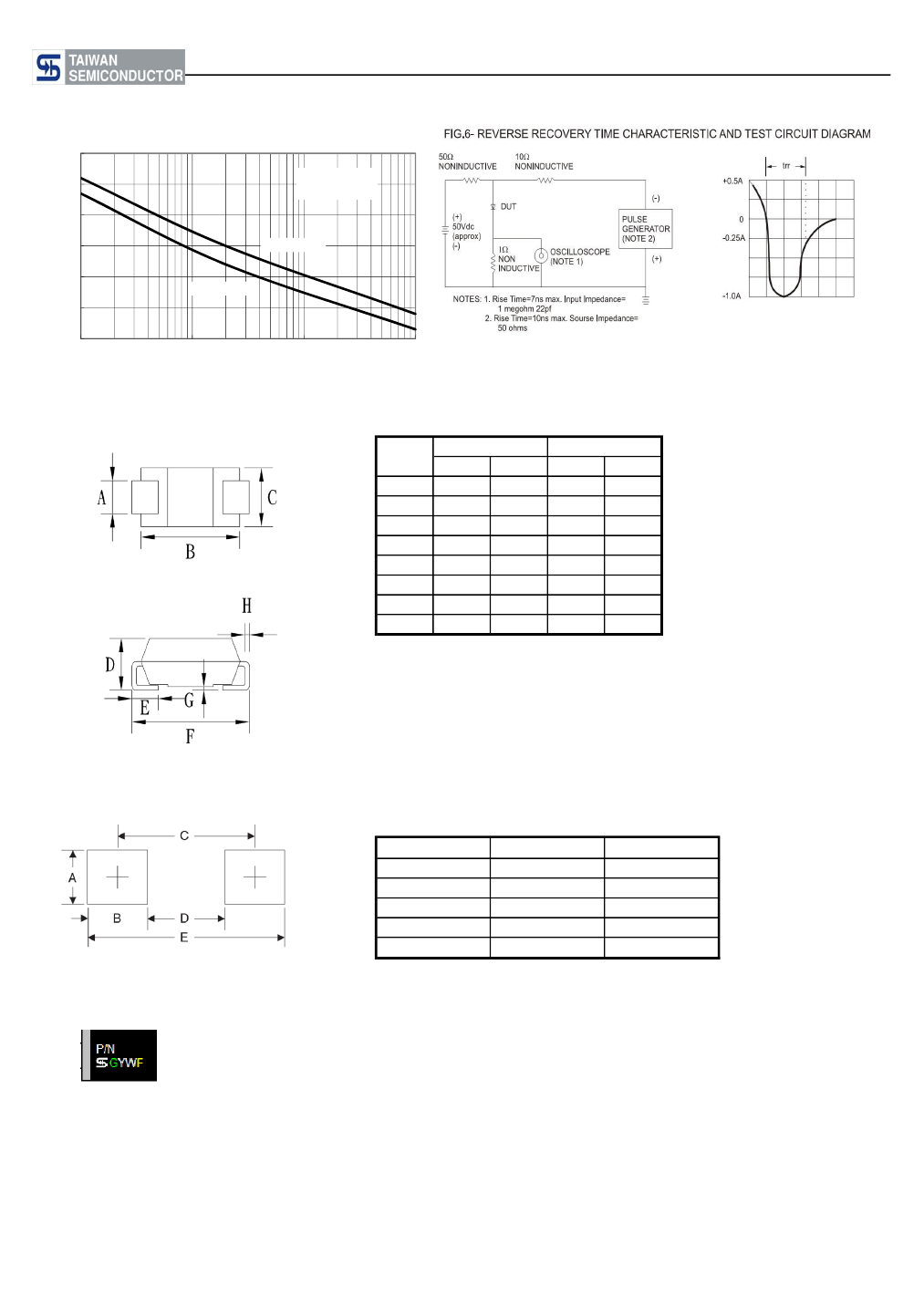

FIG. 5 TYPICAL JUNCTION CAPACITANCE
60
JUNCTION CAPACITANCE (pF)
50
40
30
20
ES2FA-JA
10
0
0.1
1
10
REVERSE VOLTAGE (V)
100
ES2AA-DA
f=1.0MHz
Vsig=50mVp-p
PACKAGE OUTLINE DIMENSIONS
DO-214AC (SMA)
DIM.
A
B
C
D
E
F
G
H
Unit (mm)
Min
1.27
4.06
2.29
1.99
0.90
4.95
0.10
0.15
Max
1.58
4.60
2.83
2.50
1.41
5.33
0.20
0.31
Unit (inch)
Min
0.050
0.160
0.090
0.078
0.035
0.195
0.004
0.006
Max
0.062
0.181
0.111
0.098
0.056
0.210
0.008
0.012
SUGGESTED PAD LAYOUT
Symbol
A
B
C
D
E
Unit (mm)
1.68
1.52
3.93
2.41
5.45
Unit (inch)
0.066
0.060
0.155
0.095
0.215
MARKING DIAGRAM
P/N =
G=
YW =
F=
Specific Device Code
Green Compound
Date Code
Factory Code
Document Number: DS_D1411071
Version: L15
ES2AA - ES2JA
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Document Number: DS_D1411071
Version: L15
