22.07.2018
RAFIX 22 QR - Keylock switch, square collar
1.30.245.481/0700
Included: Ring nut with claw.
A contact block in position 3 or 5/6 (centre) is actuated when turning in either direction.
General information
Actuator
Color of front ring
Form of collar

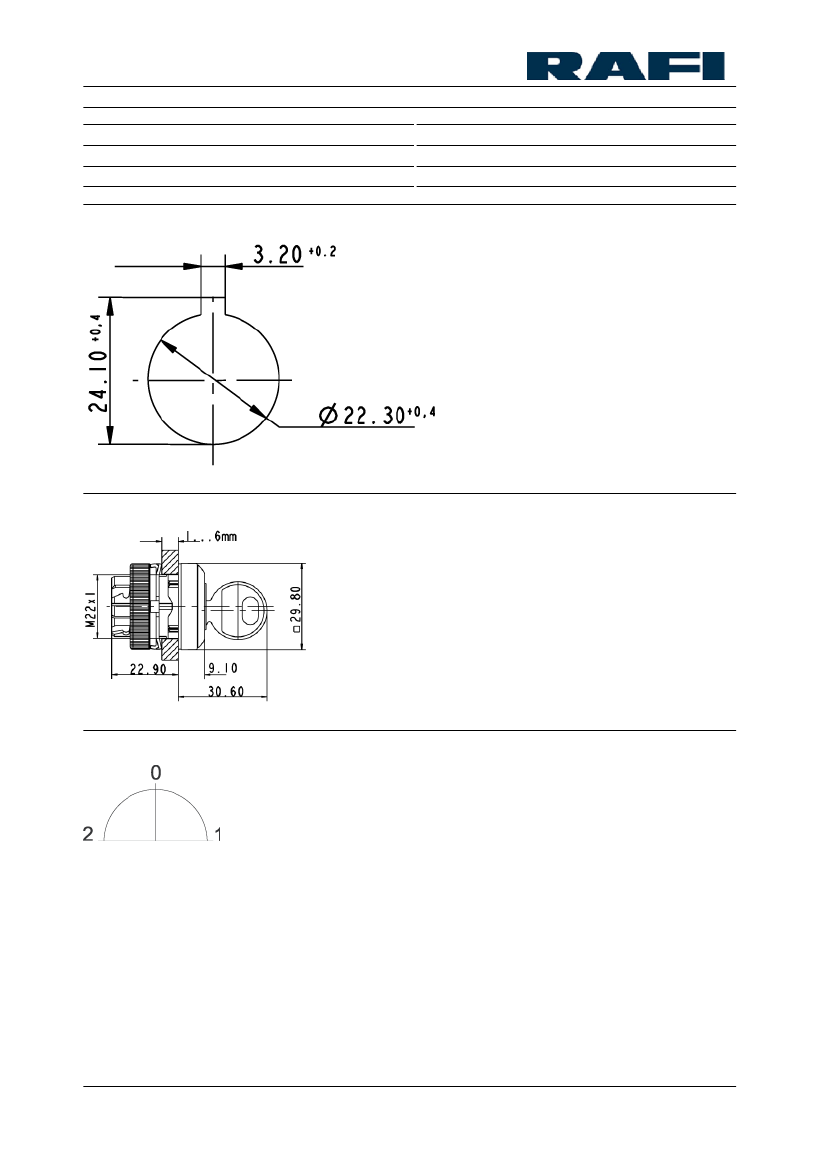

Dimensions
Dimensions of collar
Overall height
Mounting depth with contact block without cable
Mounting hole
Mounting grid
Mechanical design
Mounting
Contact function
Illumination
Lock
Wafers
Lock type
Main key
Symmetric key
Rotating angle
Key removal position
Mechanical characteristics
Operating force max.
Torque max.
Electrical characteristics
Protection class
Other specifications
Operating life (operations)
Degree of protection from front side
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Key
slate-grey
square
29.8 x 29.8 mm
30.6 mm
56.4 mm
ø 22.3 mm
50 x 30 mm
ring nut
latching
no
RONIS
4
455
no
no
2 x 90°
0+1+2
approx. 5 N for 1 switching element
2 Nm
II
300,000 momentary / 50,000 latching cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
-40 °C
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
