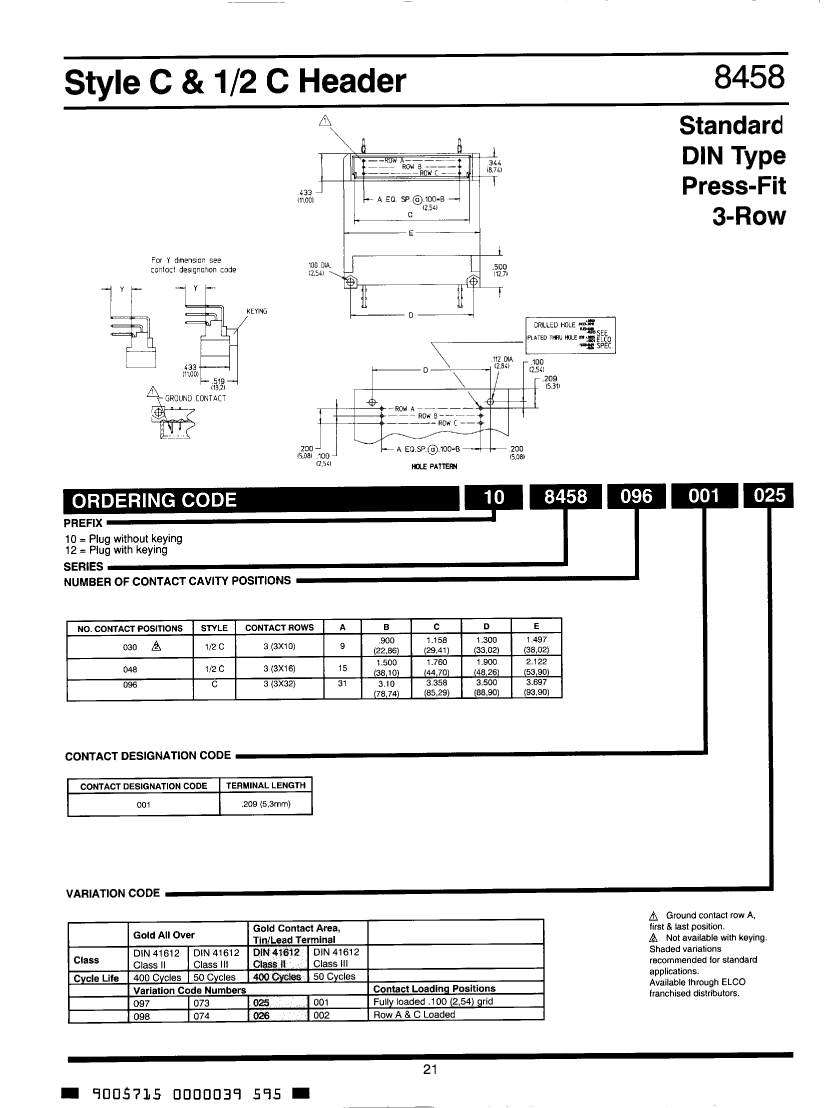

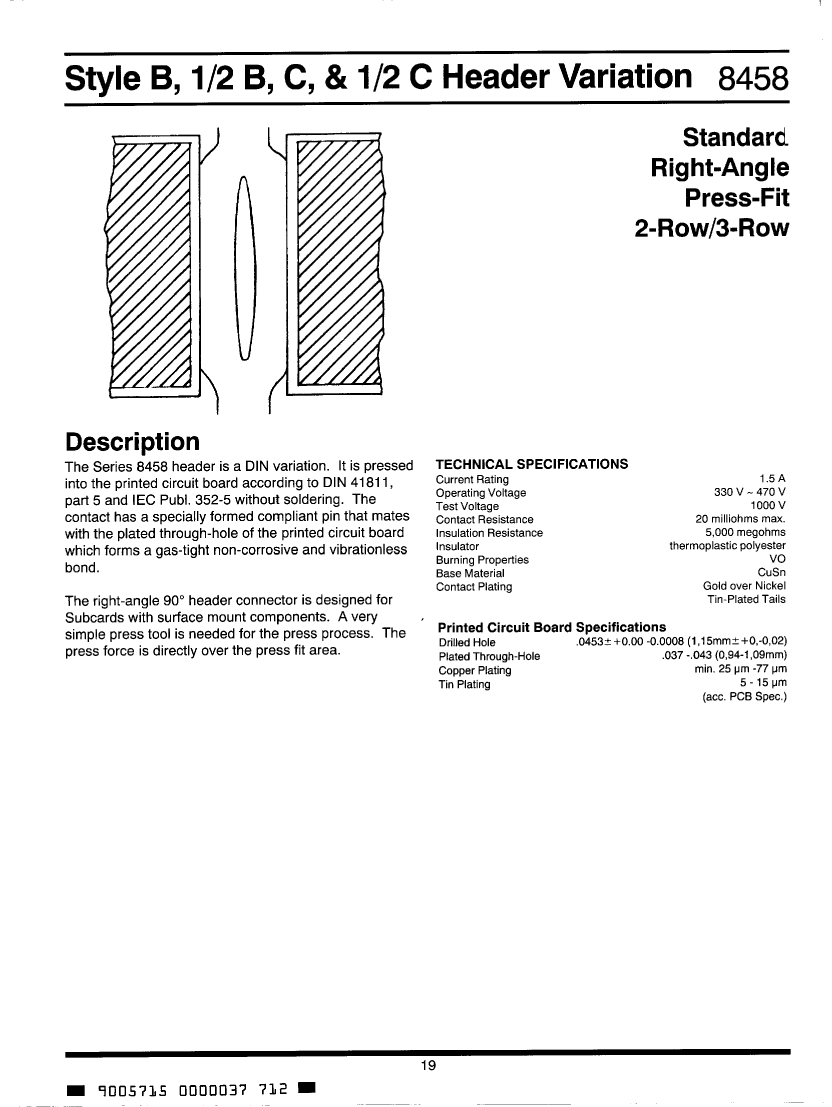

12-8458-096-001-098 datasheet, PDF

12-8458-096-001-098: DescriptionBoard Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size252KB，4 Pages; ManufacturerKyocera

Download Datasheet Parametric View All

12-8458-096-001-098 Overview

Board Euro Connector, 96 Contact(s), 3 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Receptacle

Parameter Name	Attribute value
Reach Compliance Code	unknow
body width	0.433 inch
body length	3.697 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	1000VAC V
Durability	400 Cycles
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	8458
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,C
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1.5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.209 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	96
Evacuation force-minimum value	.139 N
Base Number Matches	1
