1776423001

Description
Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE
CategoryThe connector    The connector
File Size52KB，1 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Environmental Compliance
Download Datasheet Parametric View All

1776423001 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, HALOGEN FREE

1776423001 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionHALOGEN FREE
Reach Compliance Codecompli
Other featuresPANEL MOUNTABLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
DIN complianceYES
Filter functionNO
IEC complianceNO
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch5.08 mm
Termination typeSOLDER
Total number of contacts8
UL Flammability Code94V-0
Base Number Matches1

Preview

Download Datasheet

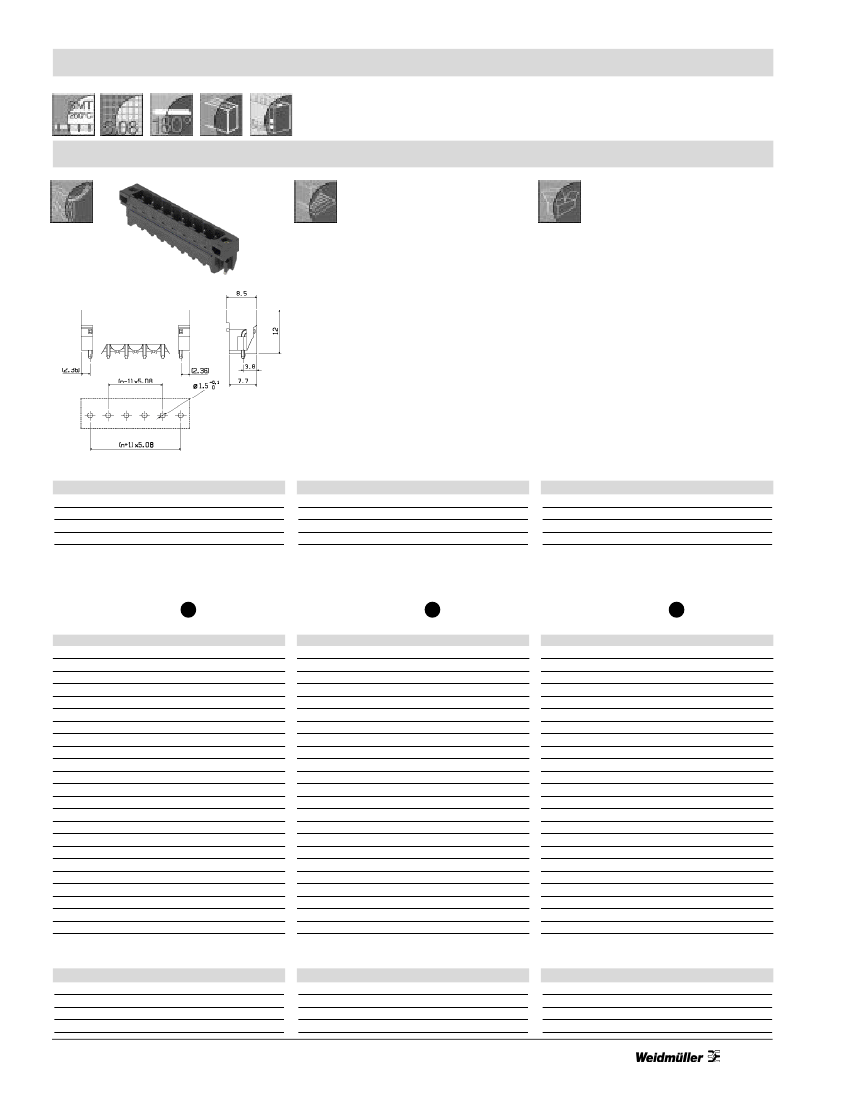

Omnimate Range - 5.08 mm Pitch
Pin headers SL-SMT 5.08/180LF
Reflow compatible solder flange pin headers
The SL-SMT 5.00/5.08 pin headers with integrated
flanges enable a screwless and secure connection to
the pcb. The integrated soldering pins can be used
for all soldering processes - no additional mounting
operation onto the pcb is necessary.
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
15
UL
300
15
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
15
UL
300
15
CSA
300
10
Technical Data
Rated voltage
Rated current
V
A
VDE
250*
15
UL
300
15
CSA
300
10
*Overvoltage category III / Pollution severity 3
Additional technical data see page 2
*Overvoltage category III / Pollution severity 3
Additional technical data see page 2
*Overvoltage category III / Pollution severity 3
Additional technical data see page 2
Solder pin length
Tape-on-Reel
Color: Black
Tape width
Poles Type
2
SL-SMT 5.08/2/180LF
3
SL-SMT 5.08/3/180LF
4
SL-SMT 5.08/4/180LF
5
SL-SMT 5.08/5/180LF
6
SL-SMT 5.08/6/180LF
1.5 mm
Solder pin length
Tray
Color: Black
Qty.
200
200
200
200
200
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SL-SMT 5.08/2/180LF
SL-SMT 5.08/3/180LF
SL-SMT 5.08/4/180LF
SL-SMT 5.08/5/180LF
SL-SMT 5.08/6/180LF
SL-SMT 5.08/7/180LF
SL-SMT 5.08/8/180LF
SL-SMT 5.08/9/180LF
SL-SMT 5.08/10/180LF
SL-SMT 5.08/11/180LF
SL-SMT 5.08/12/180LF
SL-SMT 5.08/13/180LF
SL-SMT 5.08/14/180LF
SL-SMT 5.08/15/180LF
SL-SMT 5.08/16/180LF
SL-SMT 5.08/17/180LF
SL-SMT 5.08/18/180LF
SL-SMT 5.08/19/180LF
SL-SMT 5.08/20/180LF
SL-SMT 5.08/21/180LF
SL-SMT 5.08/22/180LF
SL-SMT 5.08/23/180LF
SL-SMT 5.08/24/180LF
1.5 mm
Solder pin length
Standard Box
Color: Black
Qty.
66
54
48
42
36
30
30
24
24
24
18
18
18
18
12
12
12
12
12
12
12
12
12
Poles
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
Type
SL-SMT 5.08/2/180LF
SL-SMT 5.08/3/180LF
SL-SMT 5.08/4/180LF
SL-SMT 5.08/5/180LF
SL-SMT 5.08/6/180LF
SL-SMT 5.08/7/180LF
SL-SMT 5.08/8/180LF
SL-SMT 5.08/9/180LF
SL-SMT 5.08/10/180LF
SL-SMT 5.08/11/180LF
SL-SMT 5.08/12/180LF
SL-SMT 5.08/13/180LF
SL-SMT 5.08/14/180LF
SL-SMT 5.08/15/180LF
SL-SMT 5.08/16/180LF
SL-SMT 5.08/17/180LF
SL-SMT 5.08/18/180LF
SL-SMT 5.08/19/180LF
SL-SMT 5.08/20/180LF
SL-SMT 5.08/21/180LF
SL-SMT 5.08/22/180LF
SL-SMT 5.08/23/180LF
SL-SMT 5.08/24/180LF
1.5 mm
56 mm
Part No.
1776364001
1776374001
1776384001
1776394001
1776404001
Part No.
1776363001
1776373001
1776383001
1776393001
1776403001
1776413001
1776423001
1776433001
1776443001
1776453001
1776463001
1776473001
1776483001
1776493001
1776503001
1776513001
1776523001
1776533001
1776543001
1776553001
1776573001
1776583001
1776593001
Part No.
1776362001
1776372001
1776382001
1776392001
1776402001
1776412001
1776422001
1776432001
1776442001
1776452001
1776462001
1776472001
1776482001
1776492001
1776502001
1776512001
1776522001
1776532001
1776542001
1776552001
1776572001
1776582001
1776592001
Qty.
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
20
20
20
20
20
20
20
20
Additional pole numbers and tape widths on request.
Minimum order quantities may apply.
Accessories see PCB Products Selection Guide
Fixing
Marking
Coding
Miscellaneous
Page
Accessories see PCB Products Selection Guide
Fixing
Marking
Coding
Miscellaneous
Page
Accessories see PCB Products Selection Guide
Fixing
Marking
Coding
Miscellaneous
Page
integrated in product
190
192,193
–
integrated in product
190
192,193
–
integrated in product
190
192,193
–
15
