TECHNICAL DATA SHEET
BNC 50
SHORTING CAP
51Z111-000N5

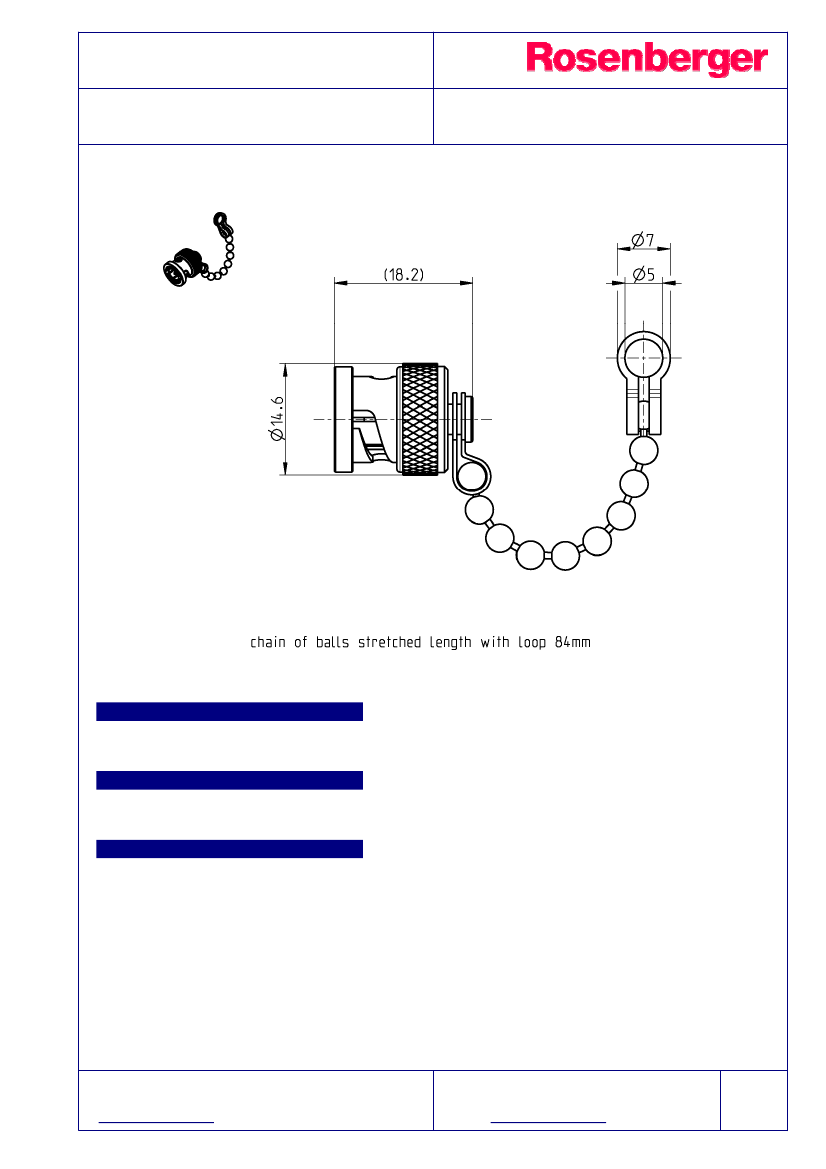

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 60169-8, MIL-PRF-39012, CECC 22120
Documents
N/A
Material and plating
Connector parts
Center contact
Outer contact
Body
Gasket
Material
Brass
Brass
Brass
Silicone
Plating
AuroDur®, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
Fax: +49 8684 18-499
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
BNC 50
Electrical data
Impedance
SHORTING CAP
~0
(shorted), DC
51Z111-000N5
Mechanical data
Mating cycles
Center contact captivation: axial
min. 500
15 N
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
RoHS
-55°C to +155°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
G
Tooling
N/A
Suitable cables
N/A
Weight
Weight
13.2 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Chr. Entsfellner
Date
17/07/08
Approved
Sa. Krautenbacher
Date
18.03.14
Rev.
f00
Engineering change number
14-0352
Name
T. Krojer
Date
18.03.14
