CB11722007 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> CB11722007

CB11722007: DescriptionBarrier Terminal Blocks 20P 8.25mm 15A 300V MAGNUM CB11 SERIES; CategoryThe connector; File Size369KB，3 Pages; ManufacturerEaton

Download Datasheet Parametric View All

CB11722007 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CB11722007	-	-	View	Buy Now

CB11722007 Overview

Barrier Terminal Blocks 20P 8.25mm 15A 300V MAGNUM CB11 SERIES

CB11722007 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Eaton
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 1 day
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

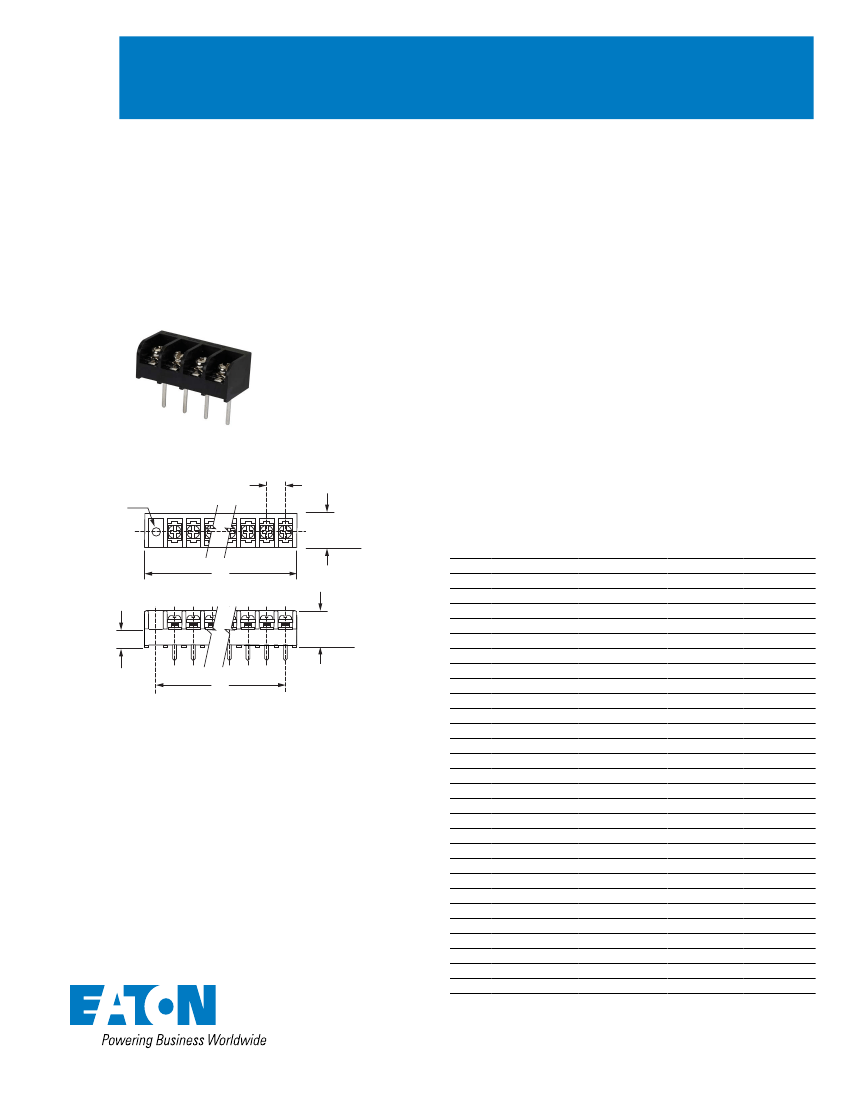

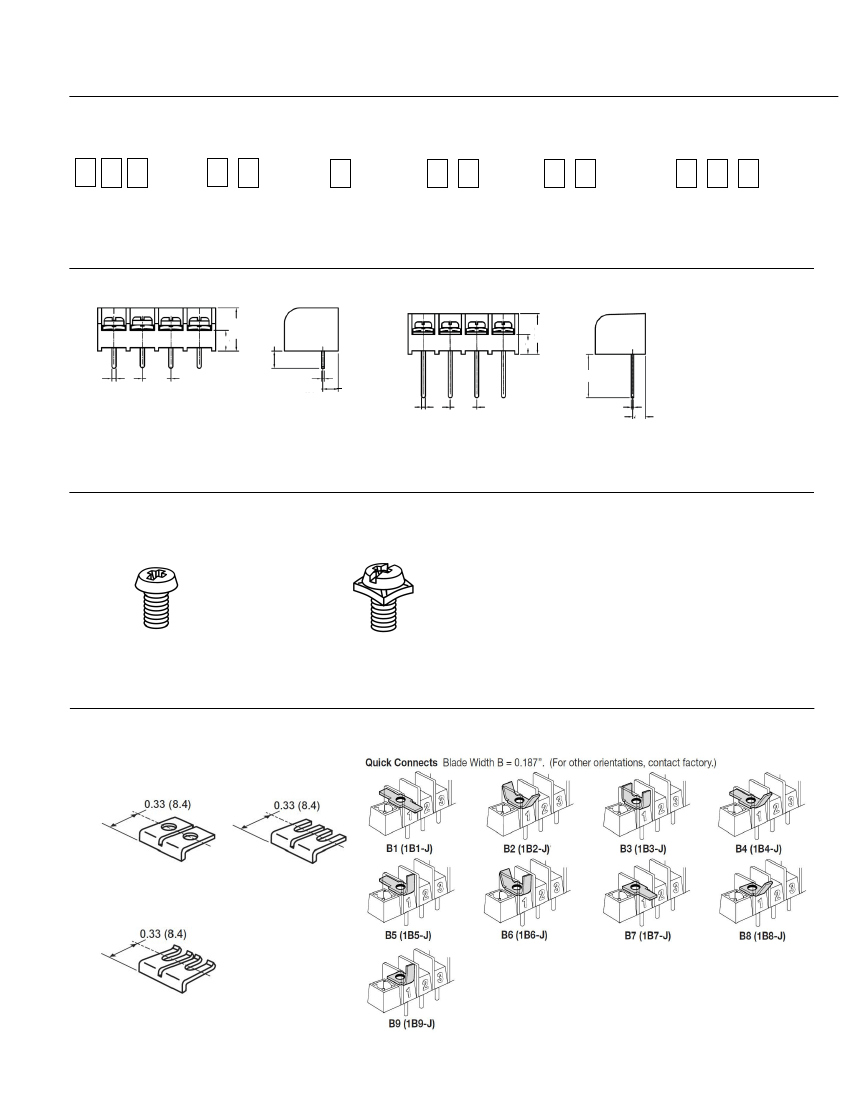

Single Row Terminal Blocks

CB11

Dimensions

Inches (Millimeters)

CB11

Specifications

Rating:

15 A, 300 V

Center Spacing:

0.325” (8.25 mm)

Wire Range:

#14-22 AWG

Screw Size:

M3.0, nickel-plated steel

CB11720407

Torque Rating:

12 lb-in.

Recommended PCB Hole Diameter:

1.6 mm - 1.8 mm

Operating Temperature:

-40 °C to +120 °C

Body Material:

Polyamide 66, UL94 V-0, Black

Terminal Material:

Brass, tin plated

Breakdown Voltage:

2000 V

Agency Information:

UL file E62622

0.325

(8.25)

0.15

(3.8)

MOUNTING ENDS

BARRIER ENDS

Mount

Centers

Length

End Pole

Centers

0.610

(15.5)

Poles

Length

Mount End

Barrier End

0.49

(12.5)

0.236

(6.0)

Mount End

Barrier End

1.35

1.67

2.00

2.32

2.65

2.97

3.30

3.62

3.94

4.27

4.59

4.92

5.24

5.57

5.89

6.22

6.54

6.87

7.19

7.52

7.84

8.17

8.49

8.82

9.14

9.47

9.79

10.12

10.44

0.65

0.97

1.30

1.62

1.95

2.27

2.60

2.92

3.25

3.57

3.90

4.22

4.55

4.87

5.20

5.52

5.85

6.17

6.50

6.82

7.15

7.47

7.80

8.12

8.44

8.77

9.09

9.42

9.74

0.70

1.02

1.35

1.67

2.00

2.32

2.65

2.97

3.30

3.62

3.94

4.27

4.59

4.92

5.24

5.57

5.89

6.22

6.54

6.87

7.19

7.52

7.84

8.17

8.49

8.82

9.14

9.47

9.79

0.32

0.65

0.97

1.30

1.62

1.95

2.27

2.60

2.92

3.25

3.57

3.90

4.22

4.55

4.87

5.20

5.52

5.85

6.17

6.50

6.82

7.15

7.47

7.80

8.12

8.44

8.77

9.09

9.42

Dimensions in inches. To convert to millimeters, multiply by 25.4.
