82_MMCX-S50-0-2/111_KL-1 Overview

RF Connectors / Coaxial Connectors

82_MMCX-S50-0-2/111_KL-1 Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MMCX CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL complianceNO
Installation methodSTRAIGHT
Installation typeBOARD
Maximum operating frequency6 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSURFACE MOUNT

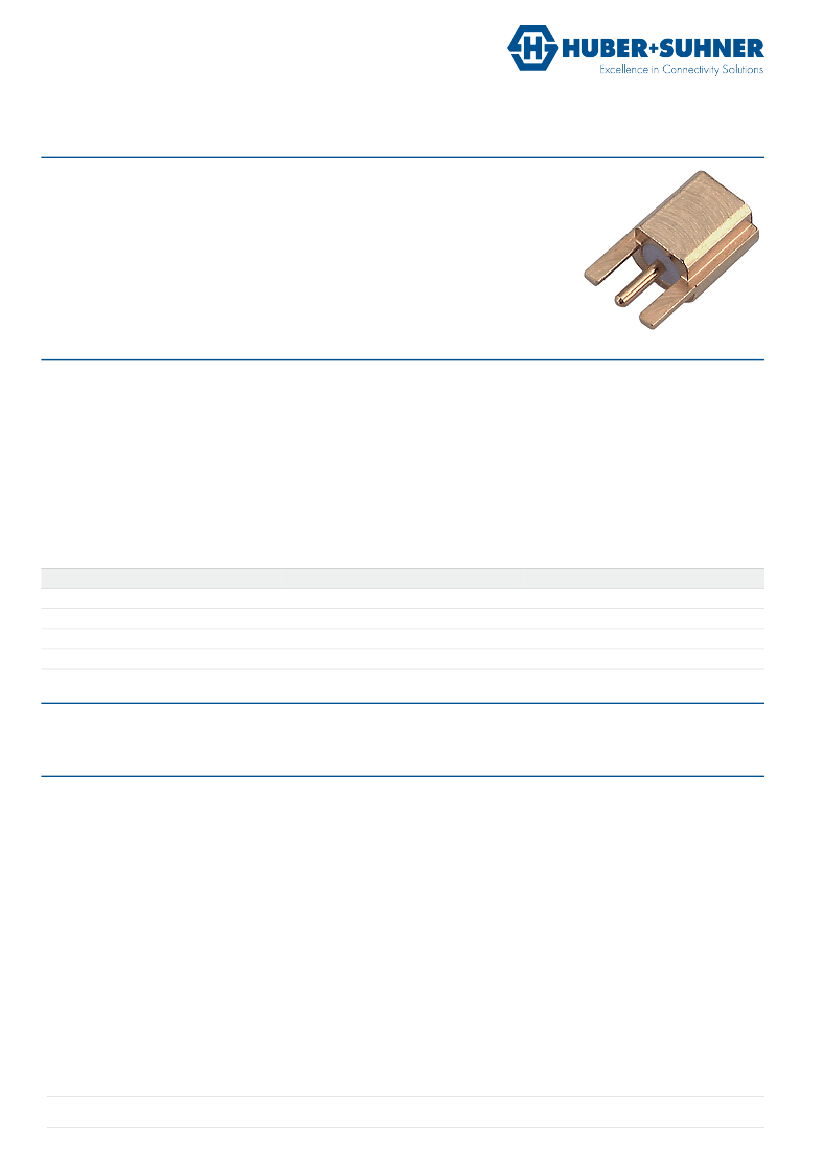

Data Sheet
Coaxial PCB Connector
82_MMCX-S50-0-2/111_K_-1
Description
Straight PCB jack
Interface Standards
SUHNER-MMCX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
6 GHz
Mechanical Data
Board mounting type
Weight
edge mount
0.0007 kg
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-55 °C to 155 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
Catalogue drawing
DOU-00013081
DCA-00013083
Ordering Information
Tape and Reel package
82_MMCX-S50-0-2/111_KL-1
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000197643 N / PDO G / date of publication: 12/5/2014 12:21:29 PM / uncontrolled copy
Page 1/1
