02/11/2015

www.crouzet.com

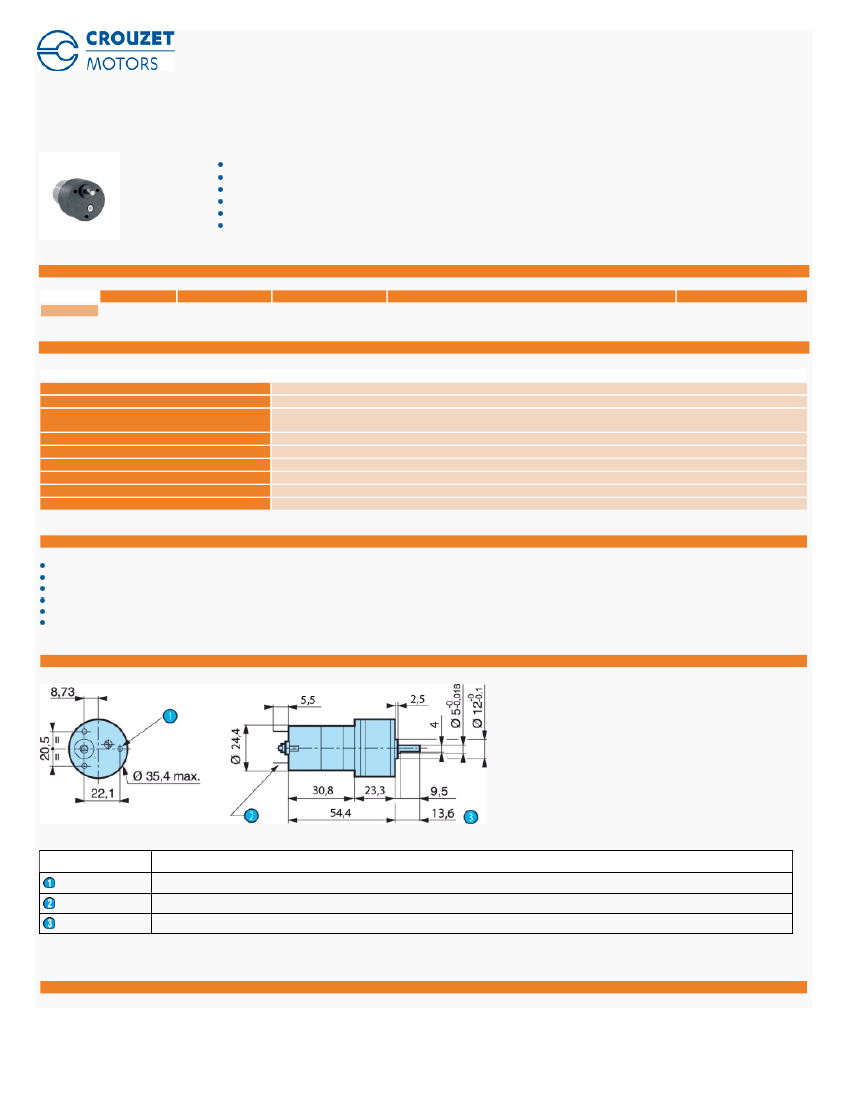

0.5 Nm RPT5 1.4 and 3.2 Watts 1.4 W Part number 82712010

Gearbox 0.5 Nm

Motor power max. 3.2 W

Class A EMC interference suppression (radiated)

Compatible with 6 V, 9 V or 12 V battery power supply

Optional class B interference suppression

Optional 1, 5, 12 or 48 pulses/rev encoder

Part numbers

Type

82712010

1.4 W

Type

827120

Voltage

24 V

Output speed (rpm)

109

Ratios (i)

30,5

Specifications

General characteristics

Motor

Gearbox

Maximum permitted torque from gearmotor under

continuous conditions (for 0.5 million turns) (Nm)

Axial load static (daN)

Radial load static (daN)

Max. output power (W)

Nominal output (W)

Gearbox case temperature rise (°C)

Weight (g)

82710002

810220

0,5

1,4

Made to order products, available on request

For more than 1000 pieces

48 pulses/rev encoder

Class B filter

Case N°2 (for other fixing points see diagram) ; check whether mounting is possible

Gearbox shaft

Connections

For other types please consult Crouzet

Dimensions (mm)

827120

Legend

3 fixing holes M3

2 solder tags 2.8 x 0.5 mm

(Pushed-in shaft )

Curves

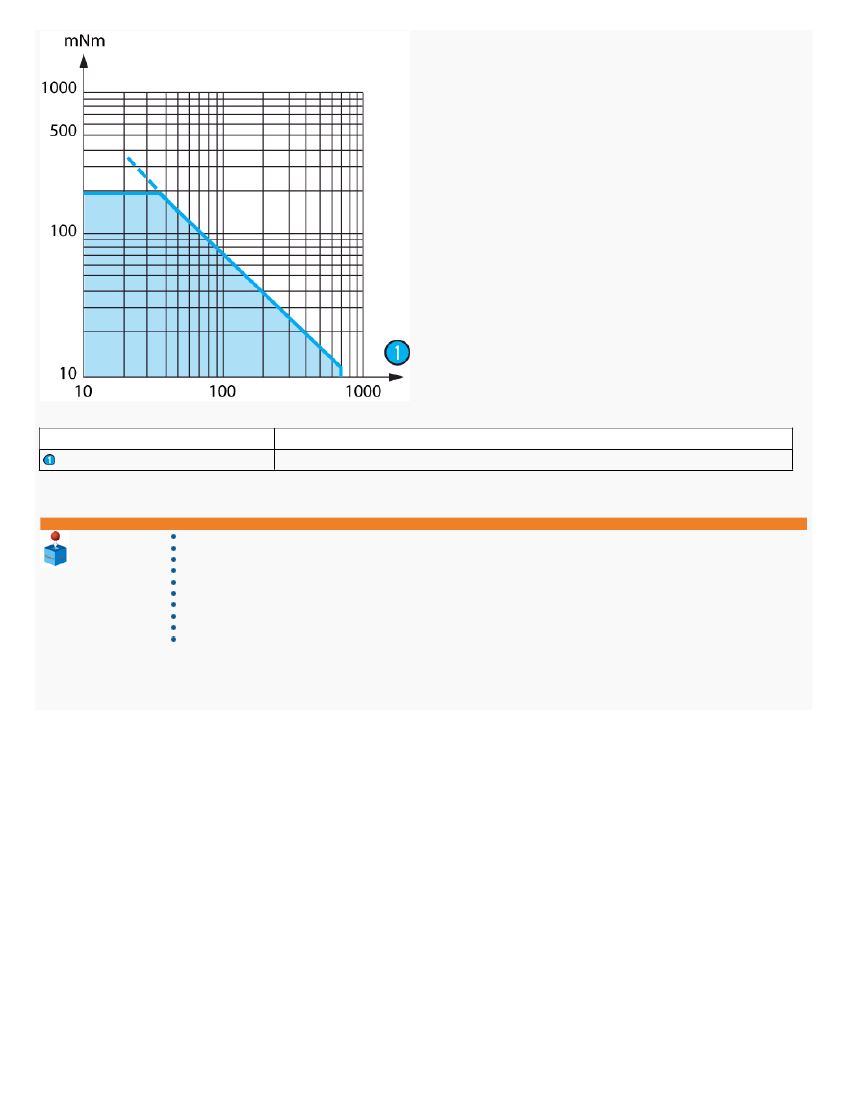

Curve : torque/nominal speed 827120

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
