Dual Output
GSM PA Controller
AD8316
FEATURES
Complete RF Detector/Controller Function
Selectable Dual Outputs
49 dB Range at 0.9 GHz (–47.6 dBm to +1.5 dBm re 50
Accurate Scaling from 0.1 GHz to 2.5 GHz
Temperature-Stable Linear-in-dB Response
Log Slope of 22 mV/dB
True Integration Function in Control Loop
Low Power: 23 mW at 2.7 V
Power-Down to 11 W
)
power control signal is required for each band. The logarithmic
amplifier technique provides a much wider measurement range
and better accuracy than is possible using controllers based on
diode detectors. In particular, multiband and multimode cellu-
lar designs can benefit from the temperature-stable (–30°C to
+85°C) operation over all cellular telephony frequencies.
Its high sensitivity allows control at low input signal levels, thus
reducing the amount of power that needs to be coupled to the
detector. The selected output, OUT1 or OUT2, has the voltage
range and current drive to directly connect to the gain control
pin of most handset power amplifiers; the deselected output is
pulled low to ensure that the inactive PA remains off. Each
output has a dedicated integrating filter capacitor that allows
separate control loop settings for each PA. OUT1 and OUT2 can
swing from 125 mV above ground to within 100 mV below the
supply voltage. Load currents of up to 12 mA can be supported.
The setpoint control input applied to pin VSET has an operating
range of 0.25 V to 1.4 V. The input resistance of the setpoint
interface is over 100 MΩ, and the bias current is typically 0.5
µA.
The AD8316 is available in 10-lead MSOP and 16-lead LFCSP
packages and consumes 8.5 mA from a 2.7 V to 5.5 V supply.
When it is powered down, the sleep current is 4
µA.
APPLICATIONS
Single-Band, Dual-Band, and Triband Mobile Handsets
(GSM, DCS, PCS, EDGE)
Wireless Terminal Devices
Transmitter Power Control
GENERAL DESCRIPTION
The AD8316 is a complete, low cost subsystem for the precise
control of dual RF power amplifiers (PAs) operating in the
frequency range 0.1 GHz to 2.5 GHz and over a typical dynamic
range of 50 dB. The device is a dual-output version of the AD8315
and intended for use in dual-band or triband cellular handsets
and other battery-operated wireless devices where a separate
FUNCTIONAL BLOCK DIAGRAM
VPOS
ENBL
BSEL
DET
RFIN
10dB
10dB
10dB
10dB
DET
DET
DET
DET
LOW NOISE
GAIN BIAS
LOW NOISE
BAND GAP
REFERENCE
OUTPUT
ENABLE
DELAY
FLT1
HI-Z
1.35
OUT1
HI-Z
1.35
OUT2
FLT2
OFFSET
COMPENSATION
COMM
INTERCEPT
POSITIONING
V–I
VSET
REV. C
Information furnished by Analog Devices is believed to be accurate and
reliable. However, no responsibility is assumed by Analog Devices for its
use, nor for any infringements of patents or other rights of third parties that
may result from its use. No license is granted by implication or otherwise
under any patent or patent rights of Analog Devices. Trademarks and
registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781/329-4700
www.analog.com
Fax: 781/326-8703
© 2004 Analog Devices, Inc. All rights reserved.
AD8316–SPECIFICATIONS
(V
Parameter
OVERALL FUNCTION
Frequency Range
1
Input Voltage Range
Equivalent dBm Range
Logarithmic Slope
2, 3
Logarithmic Intercept
2, 3
Equivalent dBm Level
RF INPUT INTERFACE
Input Resistance
4
Input Capacitance
4
OUTPUTS
Minimum Output Voltage
Maximum Output Voltage
General Limit
Output Current Drive
Output Buffer Noise
Output Noise
Small Signal Bandwidth
Slew Rate
Full-Scale Response Time
SETPOINT INTERFACE
Nominal Input Range
Logarithmic Scale Factor
Input Resistance
Slew Rate
ENABLE INTERFACE
Logic Level to Enable Power
Input Current when Enable High
Logic Level to Disable Power
Enable Time
Disable Time
Power-On/Enable Time
Power-Off/Disable Time
BAND SELECT INTERFACE
Logic Level to Enable OUT1
Input Current when BSEL High
Logic Level to Enable OUT2
POWER INTERFACE
Supply Voltage
Quiescent Current
Over Temperature
Disable Current
6
Over Temperature
Conditions
POS
= 2.7 V, T
A
= 25 C, 52.3
on RFIN, unless otherwise noted.)
Min
0.1
–58.6
–45.6
20.5
–68
–55
Typ
Max
2.5
–10
+3
24.5
–78
–65
Unit
GHz
dBV
dBm
mV/dB
dBV
dBm
kΩ
pF
0.25
2.6
V
POS
– 0.1
12
25
100
30
20
50
0.25
43.5
100
16
1.5
V
V
V
V
mA
nV/√Hz
nV/√Hz
MHz
V/µs
ns
V
dB/V
kΩ
V/µs
V
µA
V
µs
µs
µs
µs
To Meet All Specifications
±
1 dB Log Conformance, 0.1 GHz
0.1 GHz
0.1 GHz
Pin RFIN
0.1 GHz
0.1 GHz
Pins OUT1 and OUT2
VSET
≤
200 mV, ENBL High, RF Input
≤
–60 dBm
ENBL Low
R
L
> 800
Ω
2.7 V
≤
V
POS
≤
5.5 V
Source
RF Input = 2 GHz, 0 dBm,
C
FLT
= 220 pF, f
NOISE
= 400 kHz
0.2 V to 2.6 V Swing
10%–90%, 250 mV Step (V
SET
), Open Loop
5
FLTR = Open; Refer to TPC 28
Pin VSET
Corresponding to Central 50 dB
22.1
–74
–61
2.9
1.0
0.1
2.45
0.15
0.025
Pin ENBL
1.8
20
0.8
Time from ENBL High to V
APC
within 1% of
Final Value, C
FLT
= 68 pF; Refer to TPC 20
Time from ENBL Low to V
APC
within 1% of
Final Value, C
FLT
= 68 pF; Refer to TPC 20
Time from VPOS/ENBL Low to V
APC
within
1% of Final Value, C
FLT
= 68 pF; Refer to TPC 25
Time from VPOS/ENBL High to V
APC
within
1% of Final Value, C
FLT
= 68 pF; Refer to TPC 25
Pin BSEL
1.8
50
0.0
Pin VPOS
2.7
ENBL High
–30°C
≤
T
A
≤
+85°C
ENBL Low
–30°C
≤
T
A
≤
+85°C
8.5
3
5.5
10.7
12
10
13
V
mA
mA
µA
µA
1.7
V
POS
V
µA
V
7
3
3
4
V
POS
NOTES
1
Operation down to 0.02 GHz is possible.
2
Calculated over the input range of –40 dBm to –10 dBm.
3
Mean and standard deviation specifications are in Table I.
4
See TPC 9 for plot of Input Impedance vs. Frequency.
5
Response time in a closed-loop system will depend upon the filter capacitor (C
FLT
) used and the response of the variable gain element.
6
This parameter is guaranteed but not tested in production. The maximum specified limit on this parameter is the +6 sigma value from characterization.
Specifications subject to change without notice.
–2–
REV. C
AD8316
Table I. Typical Specifications at Selected Frequencies at 25°C
Slope (mV/dB)
Frequency
(GHz)
0.1
0.9
1.9
2.5
Mean
22.1
22.2
21.6
21.3
Standard
Deviation
0.3
0.3
0.3
0.3
Intercept (dBm)
Mean
–61.0
–62.2
–63.1
–66.0
Standard
Deviation
1.5
1.5
1.5
1.6
Dynamic Range
Low Point (dBm)
Mean
–45.6
–47.6
–49.2
–51.5
Standard
Deviation
0.7
0.6
0.8
1.1
Dynamic Range
High Point (dBm)
Mean
3.0
1.5
–4.5
–3.0
Standard
Deviation
0.7
0.6
0.8
1.1
Slope and intercept calculated over the input amplitude range of –40 dBm to –10 dBm.
ABSOLUTE MAXIMUM RATINGS*
Supply Voltage VPOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
OUT1, OUT2, VSET, ENBL . . . . . . . . . . . . . . . . . . . 0 V, VPOS
RFIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 dBm
Equivalent Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6 V
Internal Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . 100 mW
JA
(MSOP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200°C/W
JA
(LFCSP, Paddle soldered) . . . . . . . . . . . . . . . . . . . . . 80°C/W
JA
(LFCSP, Paddle not soldered) . . . . . . . . . . . . . . . . . 130°C/W
Maximum Junction Temperature . . . . . . . . . . . . . . . . . . . . 125°C
Operating Temperature Range . . . . . . . . . . . . . . –40°C to +85°C
Storage Temperature Range . . . . . . . . . . . . . . . –65°C to +150°C
Lead Temperature Range (Soldering 60 sec)
MSOP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300°C
LFCSP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240°C
*Stresses
above those listed under Absolute Maximum Ratings may cause perma-
nent damage to the device. This is a stress rating only; functional operation of the
device at these or any other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute maximum rating
conditions for extended periods may affect device reliability.
PIN FUNCTION DESCRIPTIONS
Pin No.
PIN CONFIGURATION
10-Lead MSOP
16-Lead LFCSP
14 COMM
16 NC
15 NC
13 NC
MSOP LFCSP
1
2
3
4
5
6
7
8
9
10
1
2
3
4
6
7
9
10, 14
11
12
5, 8, 13,
15, 16
ORDERING GUIDE
Mnemonic Function
RFIN
ENBL
VSET
FLT1
BSEL
FLT2
OUT2
COMM
OUT1
VPOS
NC
RF Input.
Connect to VPOS for Normal
Operation. Connect pin to
ground for disable mode.
Setpoint Input.
Integrator Capacitor for OUT1.
Connect between FLT1 and
COMM.
Band Select. LO = OUT2,
HI = OUT1.
Integrator Capacitor for OUT2.
Connect between FLT2 and
COMM.
Band 2 Output.
Device Common (Ground).
Band 1 Output.
Positive Supply Voltage: 2.7 V
to 5.5 V.
No Connection.
RFIN 1
ENBL 2
VSET 3
FLT1 4
BSEL 5
10 VPOS
AD8316
TOP VIEW
(NOT TO SCALE)
9 OUT1
8 COMM
7 OUT2
6 FLT2
RFIN 1
ENBL 2
VSET 3
FLT1 4
12 VPOS
AD8316
TOP VIEW
(Not to Scale)
11 OUT1
10 COMM
9 OUT2
NC 5
BSEL 6
FLT2 7
NC = NO CONNECT
Model
AD8316ARM
AD8316ARM-REEL7
AD8316-EVAL
AD8316ACP-REEL
AD8316ACP-REEL7
AD8316ACP-EVAL
Temperature Range Package Description
–30°C to +85°C
–30°C to +85°C
–30°C to +85°C
–30°C to +85°C
10-Lead MSOP, Tube
MSOP, 7" Tape and Reel
MSOP Evaluation Board
16-Lead LFCSP, 13" Tape and Reel
LFCSP, 7" Tape and Reel
LFCSP Evaluation Board
NC 8
Package Option Branding
RM-10
RM-10
CP-16-3
CP-16-3
J8A
J8A
J8A
J8A
CAUTION
ESD (electrostatic discharge) sensitive device. Electrostatic charges as high as 4000 V readily
accumulate on the human body and test equipment and can discharge without detection. Although the
AD8316 features proprietary ESD protection circuitry, permanent damage may occur on devices
subjected to high energy electrostatic discharges. Therefore, proper ESD precautions are recommended
to avoid performance degradation or loss of functionality.
REV. C
–3–

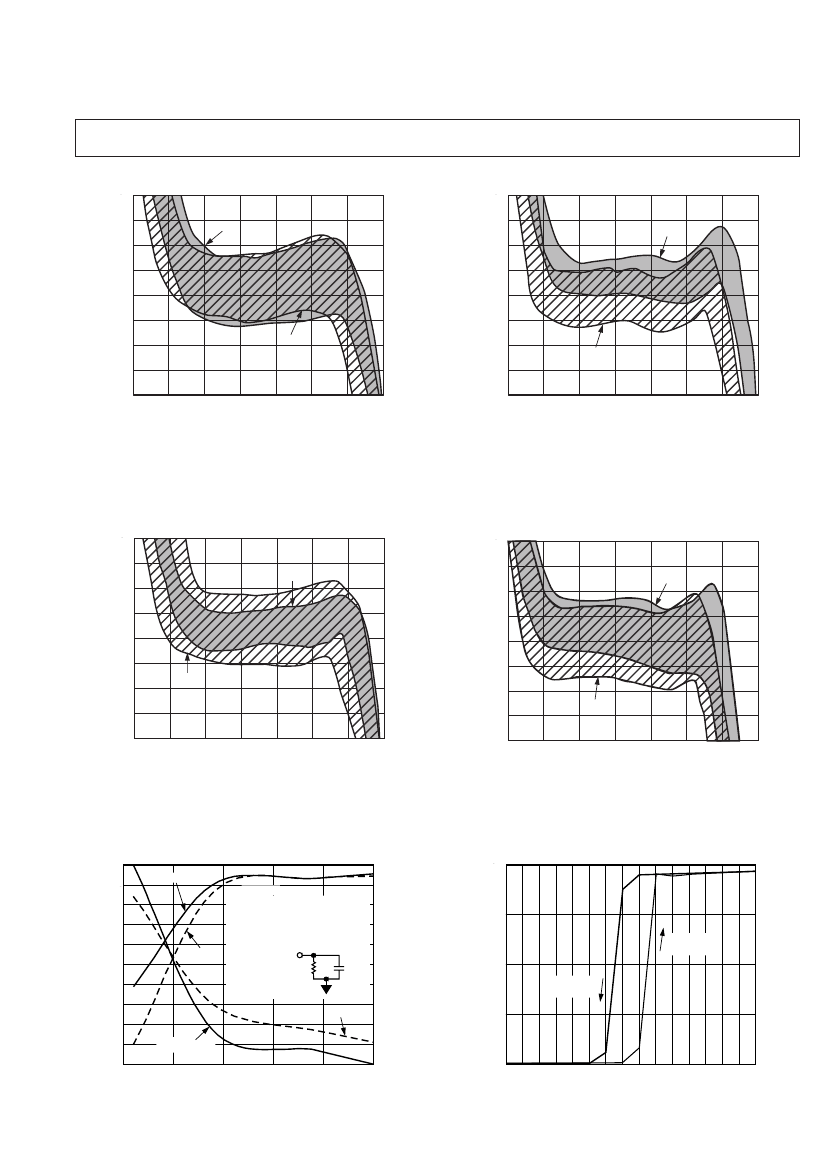

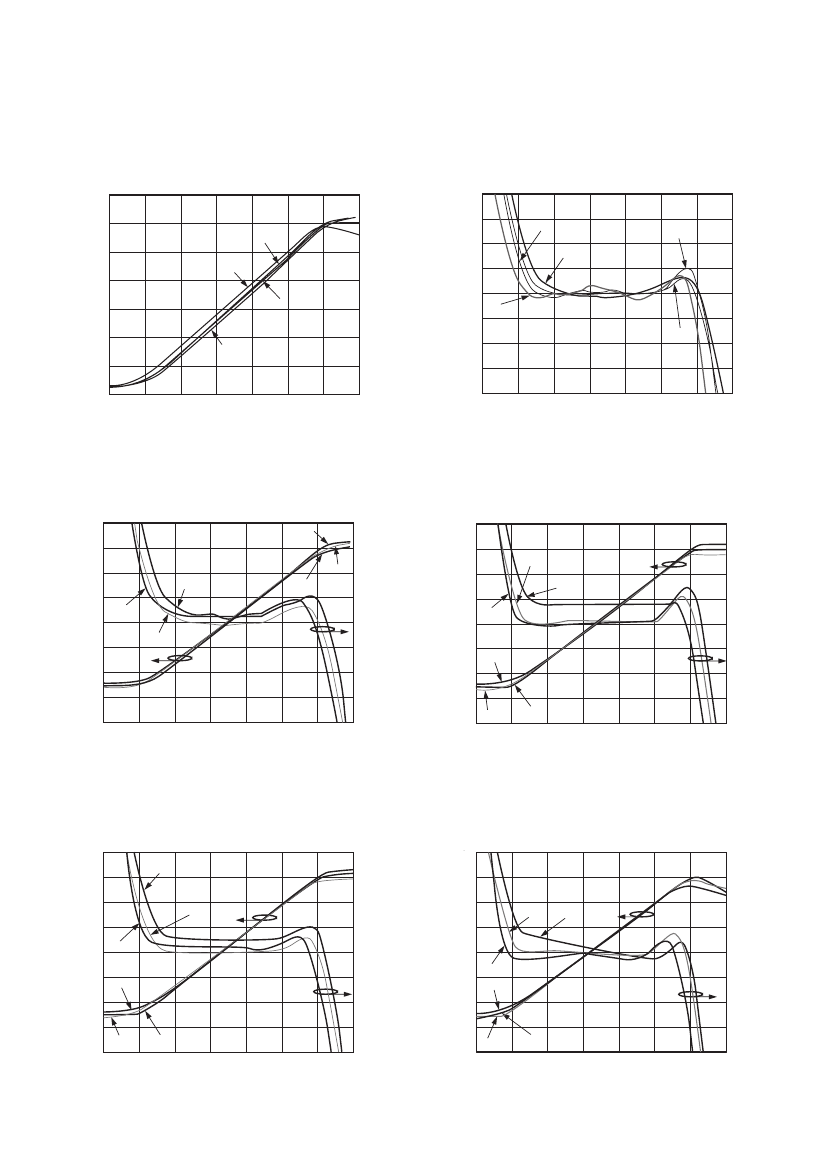

AD8316 –Typical Performance Characteristics
–73
1.6
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
–73
4
3
1.9GHz
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
1.4
0.9GHz
1.2
V
SET
– V
1.9GHz
0.1GHz
2
1.0
0.8
1.9GHz
ERROR – dB
2.5GHz
1
0
2.5GHz
–1
0.9GHz
–2
–3
–4
–60
0.6
0.1GHz
0.4
0.2
–60
–50
–40
–30
–20
–10
INPUT AMPLITUDE – dBm
0
10
–50
–40
–30
–20
–10
0
10
INPUT AMPLITUDE – dBm
TPC 1. V
SET
vs. Input Amplitude
TPC 4. Log Conformance vs. Input Amplitude at
Selected Frequencies
–73
1.6
1.4
1.2
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–30 C
–3
4
3
+25 C
2
–73
1.6
1.4
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
4
3
+25 C
1.2
+85 C
2
1
–30 C
0
–1
+85 C
–2
–3
–30 C
–40
–30
–20
–10
0
–4
10
+85 C
1.0
+85 C
ERROR – dB
–30 C
0.8
+25 C
0.6
0.4
0.2
0
–60
–1
–2
–3
–4
10
0
0.8
0.6
0.4
0.2
+25 C
0
–50
–60
–50
–40
–30
–20
–10
0
INPUT AMPLITUDE – dBm
INPUT AMPLITUDE – dBm
TPC 2. V
SET
and Log Conformance vs. Input
Amplitude at 0.1 GHz
TPC 5. V
SET
and Log Conformance vs. Input
Amplitude at 1.9 GHz
–73
1.6
1.4
1.2
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
+85 C
–13
–3
4
3
2
–73
1.6
1.4
1.2
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
4
3
2
+25 C
ERROR – dB
+25 C
1
+85 C
ERROR – dB
1.0
V
SET
– V
1.0
V
SET
– V
1
0
–30 C
–1
–2
–3
–30 C
–40
–30
–20
–10
0
–4
10
0.8
0.6
0.4
0.2
–30 C
0
–1
–2
–3
0.8
0.6
+85 C
0.4
0.2
+25 C
0
–60
–50
+85 C
+25 C
0
–60
–50
–30 C
–40
–30
–20
–10
0
–4
10
INPUT AMPLITUDE – dBm
INPUT AMPLITUDE – dBm
TPC 3. V
SET
and Log Conformance vs. Input
Amplitude at 0.9 GHz
TPC 6. V
SET
and Log Conformance vs. Input
Amplitude at 2.5 GHz
–4–
REV. C
ERROR – dB
1
1.0
V
SET
– V
V
SET
– V
AD8316
–73
4
3
2
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
–73
4
3
+85 C
2
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
+85 C
ERROR – dB
0
–1
–2
–3
–4
–60
–30 C
ERROR – dB
1
1
0
–1
–2
–30 C
–3
–4
–60
–50
–40
–30
–20
–10
0
10
–50
–40
–30
–20
–10
0
10
INPUT AMPLITUDE – dBm
INPUT AMPLITUDE – dBm
TPC 7. Distribution of Error at Temperature after Ambient
Normalization vs. Input Amplitude, 3 Sigma to Either Side
of Mean, 0.1 GHz
TPC 10. Distribution of Error at Temperature after Ambient
Normalization vs. Input Amplitude, 3 Sigma to Either Side
of Mean, 1.9 GHz
–73
4
3
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
–73
4
3
–63
INPUT AMPLITUDE – dBV
–53
–43
–33
–23
–13
–3
+85 C
2
ERROR – dB
2
+85 C
0
–1
–30 C
–2
–3
–4
–60
ERROR – dB
1
1
0
–1
–2
–30 C
–3
–4
–60
–50
–40
–30
–20
–10
0
10
–50
–40
–30
–20
–10
0
10
INPUT AMPLITUDE – dBm
INPUT AMPLITUDE – dBm
TPC 8. Distribution of Error at Temperature after Ambient
Normalization vs. Input Amplitude, 3 Sigma to Either Side
of Mean, 0.9 GHz
TPC 11. Distribution of Error at Temperature after Ambient
Normalization vs. Input Amplitude, 3 Sigma to Either Side
of Mean, 2.5 GHz
3100
2800
2500
2200
RESISTANCE –
1900
X (LFCSP)
1600
1300
1000
R (CSP)
700
400
100
0
0.5
1.0
1.5
2.0
FREQUENCY – GHz
R (MSOP)
R
X
X (MSOP)
FREQ
(GHz)
0.1
0.9
1.9
2.5
0
–200
MSOP
R
3100
600
320
110
CHIP-SCALE (LFCSP)
–400
– jX
R – jX
– j1220 2630 – j1800
–600
– j194 1000 – j270
– j134
620 – j130
– j86
435 – j110
–800
8
SUPPLY CURRENT – mA
6
INCREASING
V
ENBL
4
DECREASING
V
ENBL
2
–1000
–1200
–1400
–1600
–1800
–2000
2.5
REACTANCE –
0
0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 2.2 2.3
V
ENBL
– V
TPC 9. Input Impedance vs. Frequency
TPC 12. Supply Current vs. V
ENBL
REV. C
–5–
京公网安备 11010802033920号
EEWORLD
