LT3484EDCB-0

Description
Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger
CategoryAnalog mixed-signal IC    The signal circuit
File Size429KB,12 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Download user manual Parametric Compare View All

LT3484EDCB-0 Overview

Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger

LT3484EDCB-0 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerADI
package instructionHVSON,
Reach Compliance Codenot_compliant
ECCN codeEAR99
Analog Integrated Circuits - Other TypesANALOG CIRCUIT
JESD-30 codeR-PDSO-N6
JESD-609 codee0
length3 mm
Humidity sensitivity level1
Number of functions1
Number of terminals6
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeHVSON
Package shapeRECTANGULAR
Package formSMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)235
Certification statusNot Qualified
Maximum seat height0.8 mm
Maximum supply voltage (Vsup)16 V
Minimum supply voltage (Vsup)2.5 V
Nominal supply voltage (Vsup)3 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch0.5 mm
Terminal locationDUAL
Maximum time at peak reflow temperature20
width2 mm

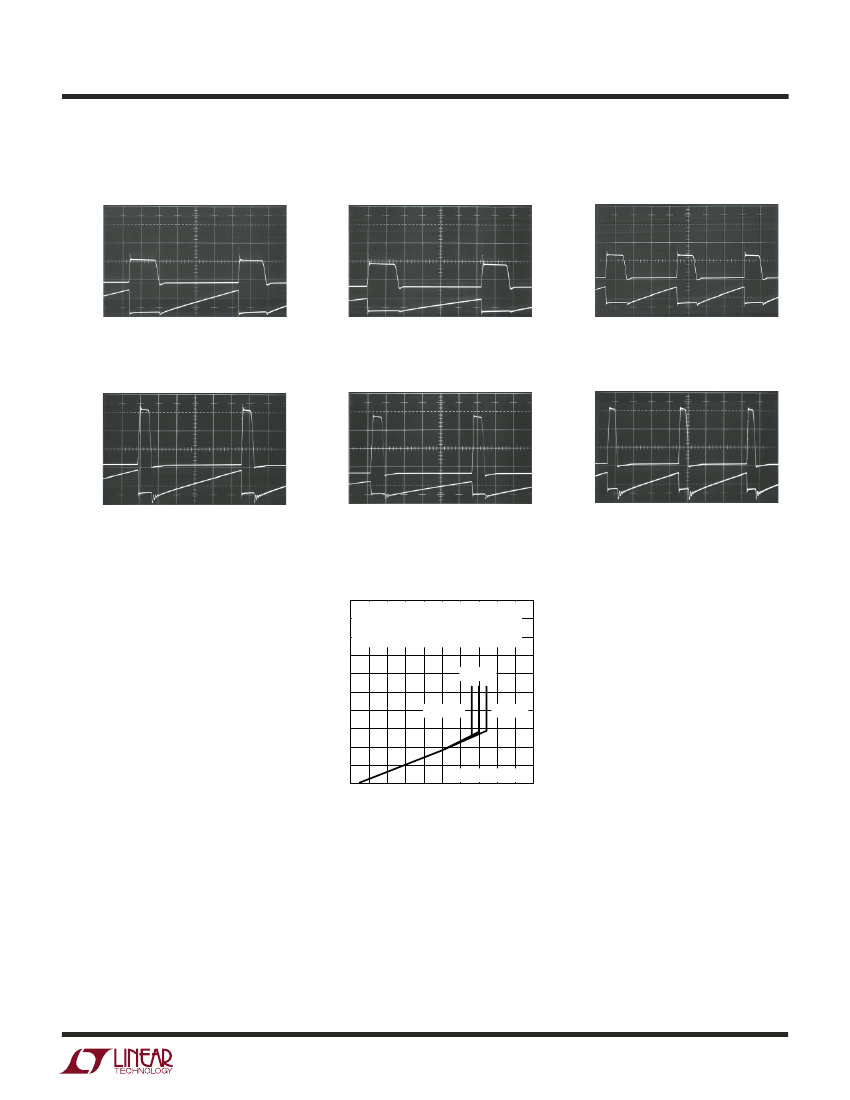

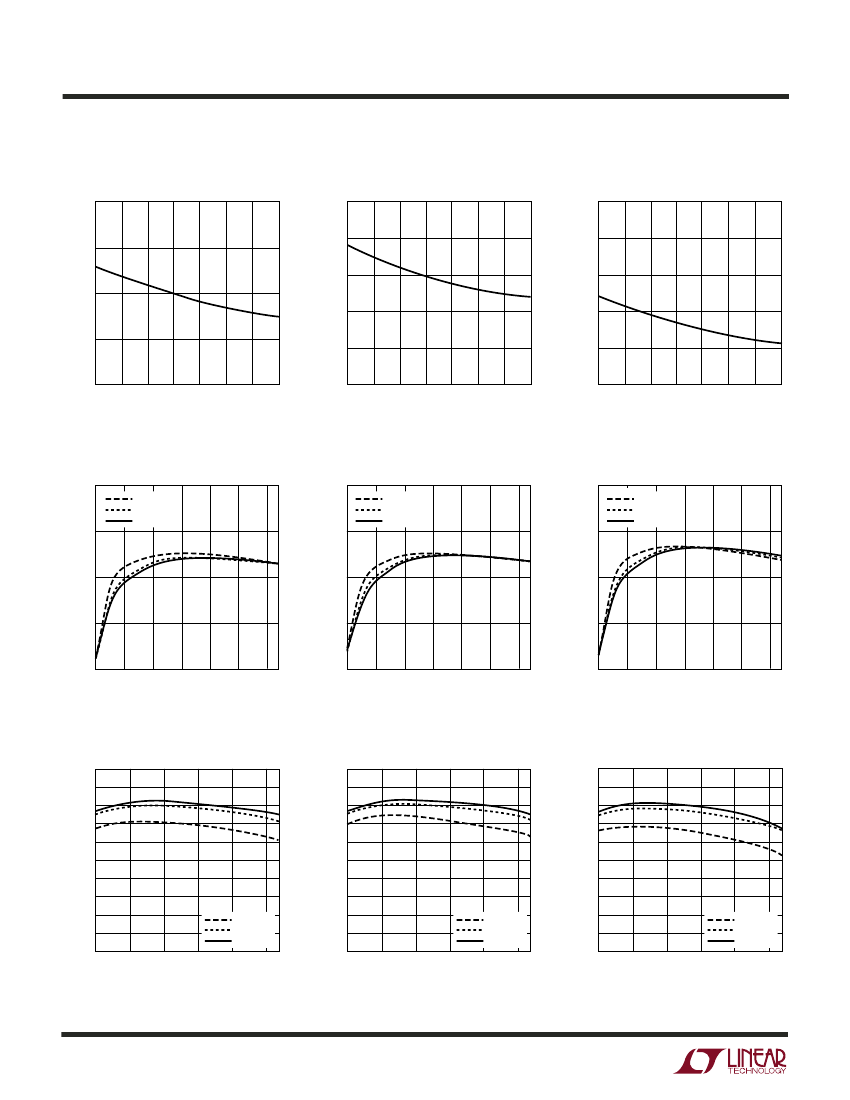

LT3484-0/LT3484-1/LT3484-2
Photoflash Capacitor
Chargers
FEATURES
DESCRIPTIO
Highly Integrated IC in 2mm
×
3mm DFN Package
Reduces Solution Size
Uses Small Transformers:
5.8mm
×
5.8mm
×
3mm
Fast Photoflash Charge Times:
4.6s for LT3484-0 (0V to 320V, 100µF, V
IN
= 3.6V)
5.7s for LT3484-2 (0V to 320V, 100µF, V
IN
= 3.6V)
5.5s for LT3484-1 (0V to 320V, 50µF, V
IN
= 3.6V)
Operates from Two AA Batteries, or Any Supply from
1.8V up to 16V
Controlled Average Input Current
500mA (LT3484-0)
350mA (LT3484-2)
225mA (LT3484-1)
No Output Voltage Divider Needed
No External Schottky Diode Required
Charges Any Size Photoflash Capacitor
Available in 6-Lead 2mm
×
3mm DFN Package
The LT
®
3484 family of photoflash capacitor charger ICs is
designed for use in digital camera and mobile phone
applications where space is at a premium. The LT3484’s
patented control technique allows it to use extremely small
transformers, and the improved NPN power switch re-
quires no external Schottky diode clamp, reducing solu-
tion size. Output voltage detection requires no external
circuitry as the transformer turns ratio determines final
charge voltage.
The devices feature a V
BAT
pin, which allows the use of 2
alkaline cells to charge the capacitor. The LT3484-0, -2
and -1 have primary current limits of 1.4A, 1A and 0.7A
respectively, resulting in tightly controlled average input
current of 500mA, 350mA and 225mA respectively. The
three versions are otherwise identical.
The CHARGE pin gives full control of the part to the user.
Driving CHARGE low puts the part in shutdown. The DONE
pin indicates when the part has completed charging. The
LT3484 series of parts are housed in a tiny low profile
2mm
×
3mm DFN package.
, LTC and LT are registered trademarks of Linear Technology Corporation. All other
trademarks are the property of their respective owners. Protected by U.S. Patents
including 6636021.
APPLICATIO S
Digital Camera and Cell Phone Flash Charger

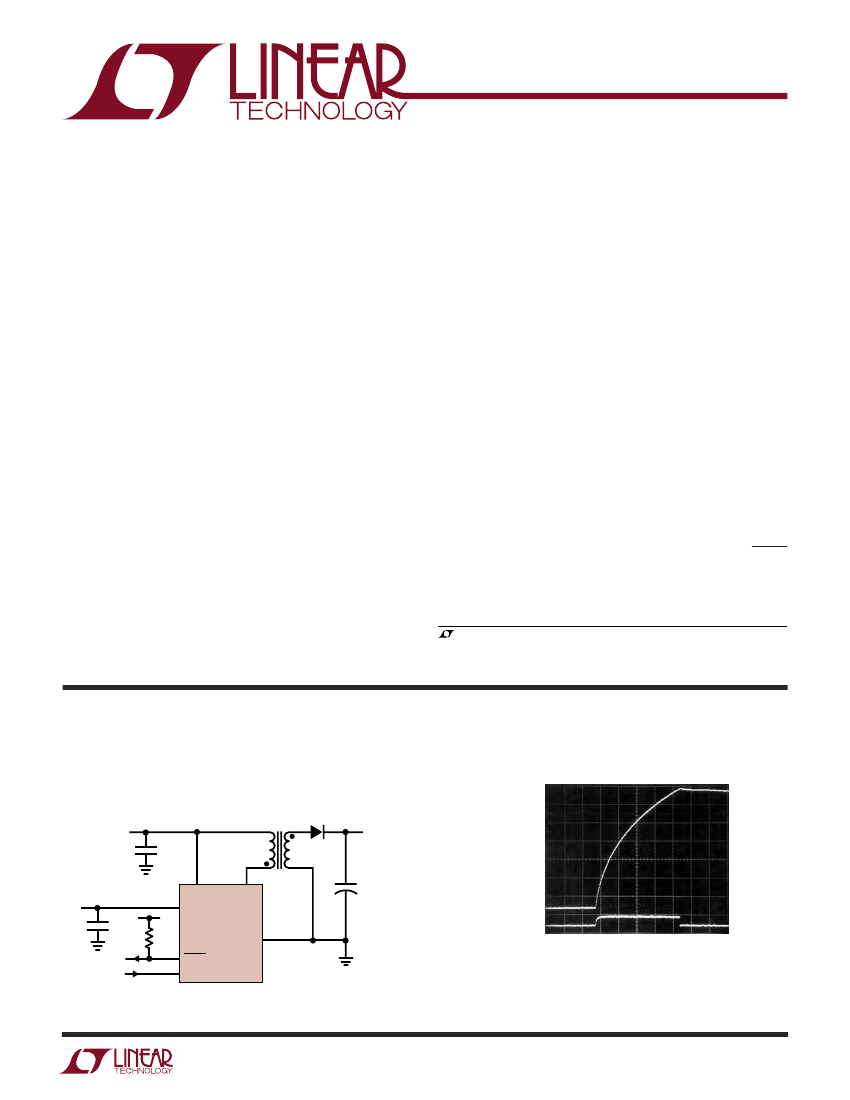

TYPICAL APPLICATIO
LT3484-0 Photoflash Charger Uses
High Efficiency 3mm Tall Transformers
DANGER HIGH VOLTAGE – OPERATION BY HIGH VOLTAGE
TRAINED PERSONNEL ONLY
V
BAT
2AA OR
1 TO 2 Li-Ion
1:10.2
1
4.7µF
2
V
BAT
V
IN
0.1µF
100k
LT3484-0
DONE
CHARGE
348412 TA01

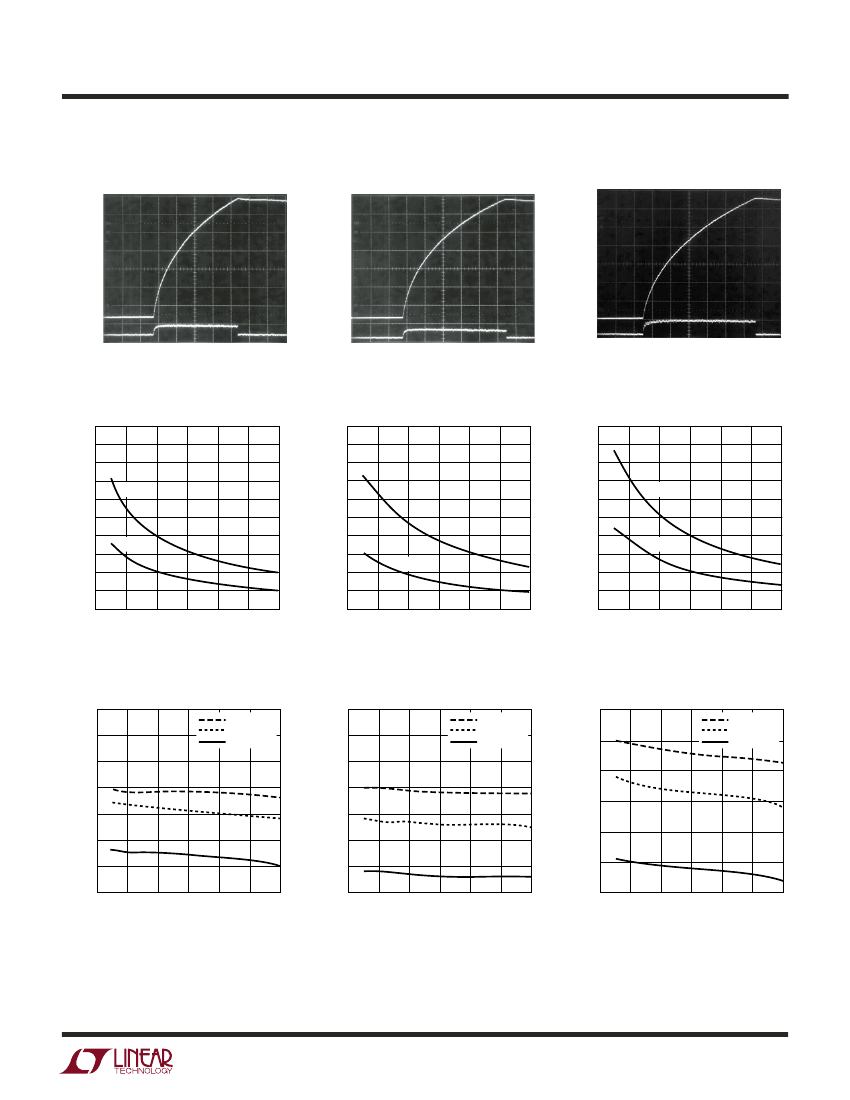

LT3484-0 Charging Waveform
V
IN
= 3.6V
C
OUT
= 100µF
4
5
320V
+
SW
V
CC
5V
150µF
PHOTOFLASH
CAPACITOR
V
OUT
50V/DIV
AVERAGE
INPUT
CURRENT
1A/DIV
GND
U
1s/DIV
3484 TA02
U
U
3484012f
1

LT3484EDCB-0 Related Products

LT3484EDCB-0 LT3484EDCB-2 LT3484EDCB-1 LT3484EDCB-0#TR LT3484EDCB-1#PBF LT3484EDCB-1#TR LT3484EDCB-2#PBF LT3484EDCB-2#TRM LT3484EDCB-2#TR
Description Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger Switching Voltage Regulators LT3484 - Photoflash Capacitor Charger Switching Regulator LT3484 - Photoflash Capacitor Charger Switching Regulator LT3484 - Photoflash Capacitor Charger Switching Regulator LT3484 - Photoflash Capacitor Charger Switching Regulator LT3484 - Photoflash Capacitor Charger
Is it Rohs certified? incompatible incompatible incompatible incompatible conform to incompatible conform to incompatible incompatible
Maker ADI ADI ADI ADI ADI ADI ADI ADI ADI
package instruction HVSON, HVSON, HVSON, HVSON, HVSON, HVSON, HVSON, VSON, HVSON,
Reach Compliance Code not_compliant not_compliant not_compliant not_compliant compliant not_compliant compliant not_compliant not_compliant
Analog Integrated Circuits - Other Types ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT ANALOG CIRCUIT
JESD-30 code R-PDSO-N6 R-PDSO-N6 R-PDSO-N6 R-PDSO-N6 R-PDSO-N6 R-PDSO-N6 R-PDSO-N6 R-PDSO-N6 R-PDSO-N6
JESD-609 code e0 e0 e0 e0 e3 e0 e3 e0 e0
length 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm 3 mm
Humidity sensitivity level 1 1 1 1 1 1 1 1 1
Number of functions 1 1 1 1 1 1 1 1 1
Number of terminals 6 6 6 6 6 6 6 6 6
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code HVSON HVSON HVSON HVSON HVSON HVSON HVSON VSON HVSON
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE SMALL OUTLINE, VERY THIN PROFILE SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Celsius) 235 235 235 235 260 235 260 235 235
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm 0.8 mm
Maximum supply voltage (Vsup) 16 V 16 V 16 V 16 V 16 V 16 V 16 V 16 V 16 V
Minimum supply voltage (Vsup) 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V 2.5 V
Nominal supply voltage (Vsup) 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V 3 V
surface mount YES YES YES YES YES YES YES YES YES
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Matte Tin (Sn) Tin/Lead (Sn/Pb) Matte Tin (Sn) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD NO LEAD NO LEAD NO LEAD NO LEAD NO LEAD NO LEAD NO LEAD NO LEAD
Terminal pitch 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm 0.5 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature 20 20 20 20 30 20 30 20 20
width 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm 2 mm
ECCN code EAR99 EAR99 EAR99 EAR99 - EAR99 - EAR99 EAR99
