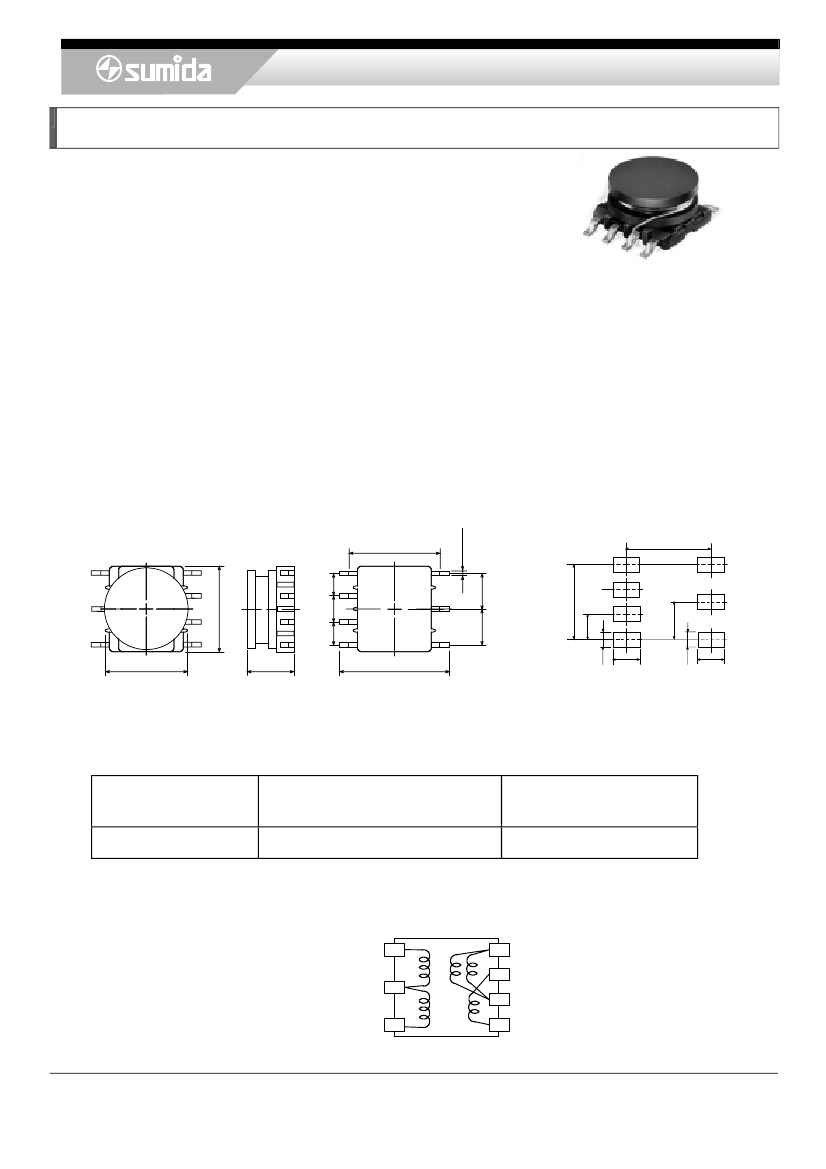

General Power Transformer <SMD Type: CMD Series>

Type: CMD-6LNL

◆

Product Description

・6.5×6.5mm

Max.(L×W), 3.5mm Max. Height.

・Inductance

range: 10μH½820μH

・Rated

current range: 0.1A½0.86A.

・7

Terminal pins’ type gives a flexible design as inductors or transformers.

・Custom

design is available.

◆

Feature

・Magnetically

unshielded construction.

・Ideally

used in portable devices such as DSC/DVC,PDA, Power supply module etc as DC-DC

Converter inductors or transformers.

・RoHS

Compliance

◆

Dimensions (mm)

0.5±0.1

±0.2

◆

Land Pattern (mm)

6.5±0.5

7.35

1.5 1.5 1.5 ±0.2

6.0±0.5

2.25

4.5

2.25

1.5

1.0

6.0±0.5

3.5 MAX.

8.2±0.5

2.0

◆

Specification (for transformers)

Sample No.

6314-T098

Inductance (1-3)

1kHz/1V

170µH ± 10%

D.C.R.

(1-3)

600mΩ Max.

※

Schematics (Bottom)

“Ｓ”is

winding start.

3

4

5

Ｓ

2

6

Ｓ

1

7

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2
