11_N-50-42-100/032_-E

Description
RF Connectors / Coaxial Connectors
CategoryThe connector    The connector
File Size114KB,1 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

11_N-50-42-100/032_-E Overview

RF Connectors / Coaxial Connectors

11_N-50-42-100/032_-E Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeRF N CONNECTOR
Data Sheet

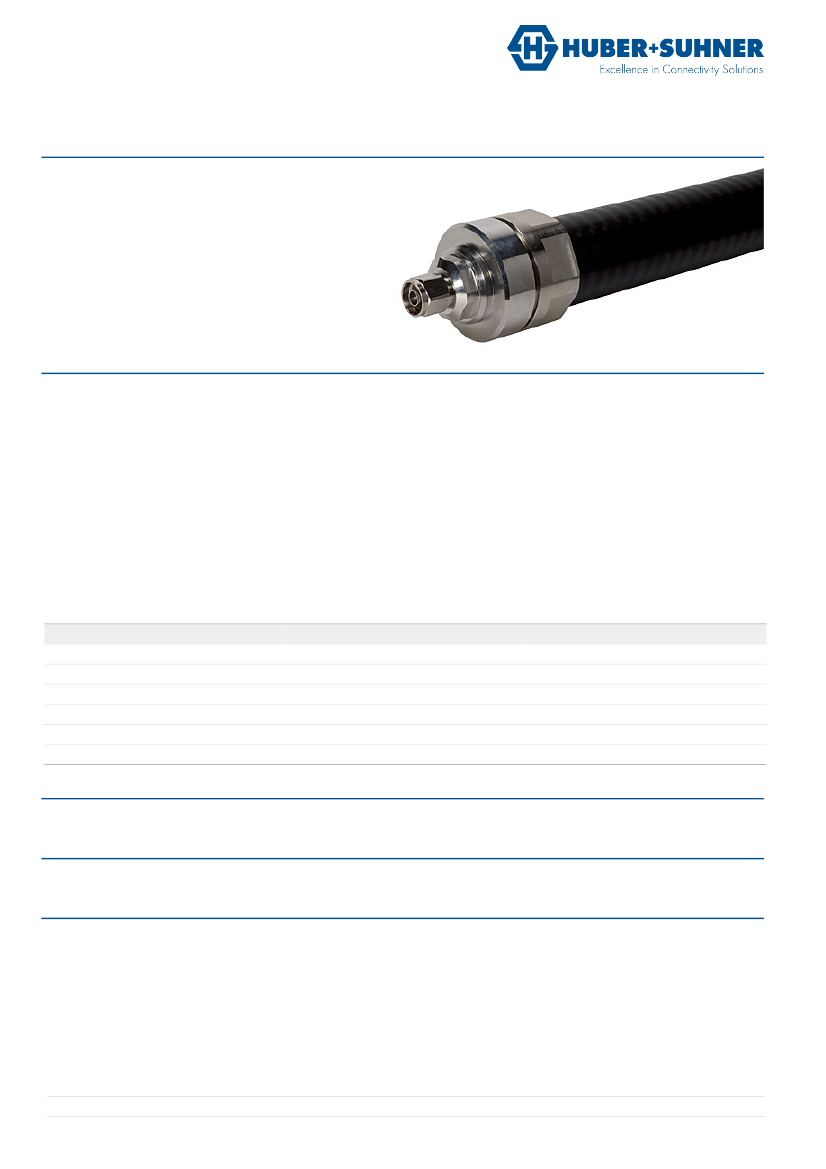

Coaxial Cable Connector
11_N-50-42-100/032_-
Description
Straight cable plug
For outdoor applications
Ingress protection according to IP67
O-ring seal on outer conductor
Technical Data
Electrical Data
Impedance
Interface frequency max.
Frequency range
Return loss
Intermodulation
50 Ω
7.5 GHz
DC to 2.5 GHz
≥ 30 dB
≤ Static -150 dBc (2 x 43 dBm carrier)
2.5 to 2.7 GHz
≥ 28 dB
Mechanical Data
Centre contact
Outer contact
plugged
clamped
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 85 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Coupling nut
Gasket
Material
Copper Beryllium / Brass
Brass
Brass
PFA / PTFE
Brass
EPDM (Ethylene propylene diene rubber)
Nickel Plating
Surface Plating
Silver Plating
SUCOPLATE (R) Plating
Nickel Plating
Related Documents
Assembly instruction
DOC-0000375031
Ordering Information
Single package
11_N-50-42-100/032_-E
Additional Information
Suitable cables
Interface standards
SUCOFEED_1_5/8, SUCOFEED_1_5/8_LA, SUCOFEED_1_5/8_LW_LA
IEC 61169-4_CECC 22190_DIN 47223_VG 95250
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, AS/EN9100, ISO/TS 16949 and IRIS.
Waiver: Fact and figures herein are for information only and do not represent any warranty of any kind.
www.hubersuhner.com
Document: DOC-0000725017 B / PDO B / date of publication: 31.08.2016 09:32:48 / uncontrolled copy
Page 1/1
