TECHNICAL DATA SHEET
ADAPTOR
N 50
JACK - JACK
53K401-K00N5

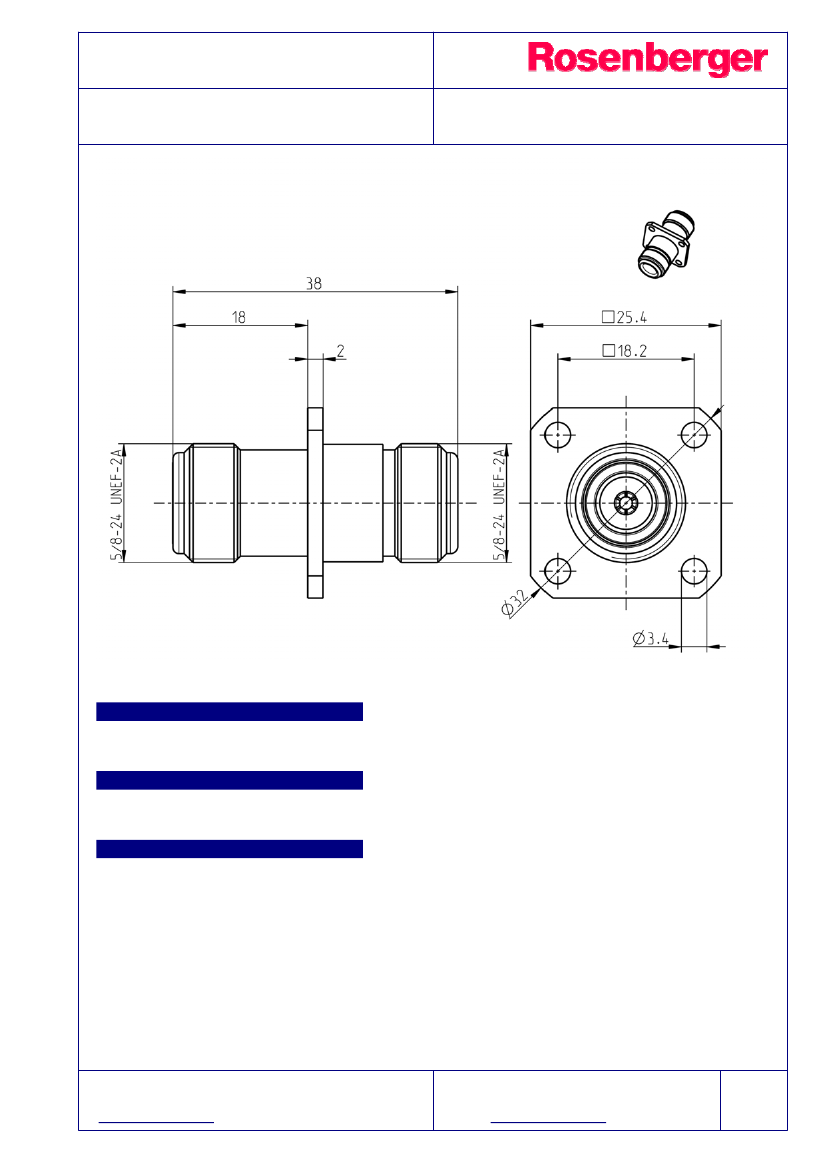

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-16, MIL-PRF-39012, CECC 22210
Documents
B 12
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Material
Spring bronze
Brass
Brass
PTFE
Plating
AuroDur, gold plated
Flash white bronze over silver(e.g. Optargen®)
Flash white bronze over silver(e.g. Optargen®)
RF_35/11.05/3.1
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
1/2
TECHNICAL DATA SHEET
ADAPTOR
N 50
JACK - JACK
Electrical data
Impedance
Frequency
Return loss
Insertion loss
Insulation resistance
Center contact resistance
Outer contact resistance
Working voltage
Power handling
(at 20 °C, sea level, VSWR 1.0)
RF-leakage
Intermodulation
50
DC to 11 GHz
32 dB, DC to 2 GHz
25 dB, 2 to 4 GHz
22 dB, 4 to 9 GHz
0.05 dB, DC to 9 GHz
5 x10
3
M
1 m
0.25 m
500 V rms
1000 W @ 1 GHz
700 W @ 2 GHz
128 dB up to 1 GHz
-115 dBm @ 2 x 20 W
53K401-K00N5
(3
rd
order)
Mechanical data
Mating cycles
Center contact captivation: axial
Coupling test torque
Recommended torque
min. 500
28 N
max. 1.7 Nm
0.7 Nm to 1.1 Nm
Environmental data
Temperature range
Thermal shock
Corrosion
Vibration
Shock
Moisture resistance
Degree of protection (mated pair)
RoHS
-45°C to +85°C
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
MIL-STD-202, Meth.
IEC 60529, IP67
compliant
107,
101,
204,
213,
106
Cond.
Cond.
Cond.
Cond.
B
B
B
I
Tooling
N/A
Suitable cables
N/A
Weight
Weight
46.6 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.
RF_35/11.05/3.1
Draft
Inge Mühlauer
Date
22/06/04
Approved
J_Gramsamer
Date
15.04.15
Rev.
h00
Engineering change number
15-0397
Name
J_Krautenb.
Date
15.04.15
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel.: +49 8684 18-0
email: info@rosenberger.de
Page
2/2
