LT1413
Single Supply, Dual
Precision Op Amp
FEATURES
Single Supply Operation:
s
Input Goes Below Ground
s
Output Swings to Ground Sinking Current
s
No Pull-Down Resistors Needed
s
Phase Reversal Protection
At 5V, 0V Low Cost Grade Specifications:
s
280µV Max Offset Voltage
s
380µV Max in S8 Package
s
0.8nA Max Offset Current
s
480µA Max Supply Current per Amplifier
s
0.5µV/°C Drift
s
1.4 Million Voltage Gain
s
950kHz Gain-Bandwidth Product
s
0.55µV
P-P
, 0.1Hz to 10Hz Noise
DESCRIPTIO
The LT1413 is a low cost, upgraded version of Linear
Technology’s industry standard LT1013 dual, single sup-
ply op amp. The LT1413 is optimized for single 5V appli-
cations, although
±15V
specifications are also provided
for completeness.
In the design of the LT1413, particular emphasis has been
placed on low cost plastic and SO-8 package performance:
60µV offset voltage, 0.1nA offset current, in excess of
10mA output current at 330µA supply current and 140dB
channel separation are some of the specifications achieved.
Other dual, single supply amplifiers are available to
complement the LT1413 family: the micropower LT1078’s
supply current is 10 times lower with a 4.5 fold speed
performance degradation compared to the LT1413. Con-
versely, the LT1211, LT1213 and LT1215 duals have 4 to
14 times higher supply current, but also 13 to 50 times
higher speed.
Protected by U.S. Patent 4,775,884.
APPLICATI
s
s
s
s
s
S
Single Supply Systems
Two and Three Op Amp Instrumentation Amplifiers
Active Filters
Battery-Powered Systems
Strain Gauge and Bridge Amplifiers
TYPICAL APPLICATI
+90V, –3V Common-Mode Range
Difference Amplifier (A
V
= 1)
30
10M
9V
25
Distribution of Input Offset Voltage
(In Plastic DIP, N8 Package)
V
S
= 5V, 0V
T
A
= 25°C
–
INPUT
–
+
8
1
OUTPUT
20mV TO 8V
PERCENT OF UNITS
10M
2
1M
1M
20
15
10
5
+
10M
1/2 LT1413
3
4
10M
OUTPUT OFFSET = 1.5mV
(INPUT REFERRED = 125µV)
INPUT RESISTANCE = 11M
BANDWIDTH = 80kHz
(THE 0.1nA TYPICAL OFFSET CURRENT
PERMITS THE USE OF 1MΩ RESISTORS)
LT1413 • TA03
0
–300 –200 –100
0
100
200
INPUT OFFSET VOLTAGE (µV)
U
300
LT1413 • TA01
UO
UO
1
LT1413
ABSOLUTE
AXI U
RATI GS
Output Short-Circuit Duration ......................... Indefinite
Operating Temperature Range ............... – 40°C to 85°C
Storage Temperature Range ................ – 65°C to 150°C
Lead Temperature (Soldering, 10 sec)................. 300°C
Note: When the input voltage exceeds the maximum ratings, the input current should be limited
to 10mA.
Supply Voltage .....................................................
±22V
Differential Input Voltage ......................................
±30V
Input Voltage ..................................................................
Equal to Positive Supply Voltage
5V Below Negative Supply Voltage
PACKAGE/ORDER I FOR ATIO
TOP VIEW
OUT A 1
–IN A 2
+IN A 3
V
–
4
B
A
8
7
6
5
V
+
OUT B
–IN B
+IN B
ORDER PART
NUMBER
LT1413ACN8
LT1413CN8
N8 PACKAGE
8-LEAD PLASTIC DIP
T
JMAX
= 100°C,
θ
JA
= 130°C/ W
ELECTRICAL CHARACTERISTICS
SYMBOL
V
OS
∆V
OS
∆Time
I
OS
I
B
e
n
PARAMETER
Input Offset Voltage
Long-Term Input Offset
Voltage Stability
Input Offset Current
Input Bias Current
Input Noise Voltage
Input Noise Voltage Density
Input Noise Current
Input Noise Current Density
Input Resistance
Differential Mode
Common Mode
Input Voltage Range
CMRR
PSRR
A
VOL
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
LT1413N8
LT1413S8
V
S
= 5V, 0V, V
CM
= 0.1V, V
O
= 1.4V, T
A
= 25°C, unless otherwise noted.
MIN
LT1413ACN8
TYP
MAX
50
0.4
0.1
9
0.55
24
23
2.8
0.07
0.02
300
3.65
0
90
102
400
300
500
3
3.8
– 0.3
101
118
1400
1000
0.7
15
1.1
38
30
150
LT1413CN8/S8
MIN
TYP
MAX
60
80
0.5
0.1
9
0.55
24
23
2.8
0.07
0.02
250
3.65
0
88
100
350
250
500
3
3.8
– 0.3
101
118
1400
1000
280
380
UNITS
µV
µV
µV/Mo
nA
nA
µV
P-P
nV/√Hz
nV/√Hz
pA
P-P
pA/√Hz
pA/√Hz
MΩ
GΩ
V
V
dB
dB
V/mV
V/mV
CONDITIONS (Note 1)
i
n
0.1Hz to 10Hz (Note 2)
f
O
= 10Hz (Note 2)
f
O
= 1000Hz (Note 2)
0.1Hz to 10Hz
f
O
= 10Hz
f
O
= 1000Hz
(Note 3)
V
CM
= 0V to 3.65V
V
S
= 3.2V to 12V
V
O
= 0.05V to 4V, No Load
V
O
= 0.05V to 3.5V, R
L
= 2k
2
U
U
W
W W
U
W
TOP VIEW
+IN A 1
V
–
2
+IN B 3
B
–IN B 4
5
OUT B
S8 PACKAGE
8-LEAD PLASTIC SOIC
NOTE: THIS PIN CONFIGURATION DIFFERS FROM
THE 8-LEAD DIP PIN LOCATIONS. INSTEAD, IT
FOLLOWS THE INDUSTRY STANDARD LT1013DS8
SO PACKAGE CONFIGURATION.
T
JMAX
= 105°C,
θ
JA
= 200°C/ W
8
A
7
6
–IN A
OUT A
V
+
ORDER PART
NUMBER
LT1413S8
S8 PART MARKING
1413
0.8
18
LT1413
ELECTRICAL CHARACTERISTICS
SYMBOL
PARAMETER
Maximum Output Voltage Swing
CONDITIONS
V
S
= 5V, 0V, V
CM
= 0.1V, V
O
= 1.4V, T
A
= 25°C, unless otherwise noted.
LT1413ACN8
MIN
TYP
MAX
15
5
220
4.4
4.0
0.3
950
330
140
2.85
25
10
350
4.1
3.4
0.2
600
450
123
3.0
LT1413CN8/S8
MIN
TYP
MAX
15
5
220
4.4
4.0
0.3
950
330
140
2.85
25
10
350
UNITS
mV
mV
mV
V
V
V/µs
kHz
µA
dB
V
SR
GBW
I
S
Slew Rate
Gain-Bandwidth Product
Supply Current per Amplifier
Channel Separation
Minimum Supply Voltage
Output Low, No Load
Output Low, 600Ω to GND
Output Low, I
SINK
= 1mA
Output High, No Load
Output High, 600Ω to GND
A
V
= 1
f
O
≤
100kHz (Note 4)
∆V
IN
= 3V, R
L
= 2k (Note 5)
(Note 6)
4.1
3.4
0.2
600
125
480
3.0
V
S
= 5V, 0V, V
CM
= 0.1V, V
O
= 1.4V, 0°C
≤
T
A
≤
70°C, unless otherwise noted.
SYMBOL
V
OS
∆V
OS
/∆T
I
OS
I
B
CMRR
PSRR
A
VOL
PARAMETER
Input Offset Voltage
Input Offset Voltage Drift
Input Offset Current
Input Bias Current
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
Maximum Output Voltage Swing
CONDITIONS (Note 1)
LT1413N8
LT1413S8
(Note 5)
q
q
q
q
q
LT1413ACN8
MIN
TYP
MAX
65
0.3
0.1
10
100
117
1100
800
18
270
4.3
3.9
350
240
2.0
1.0
20
LT1413CN8/S8
MIN
TYP
MAX
80
100
0.4
0.1
10
100
117
1100
800
18
270
4.3
3.9
350
390
490
2.5
1.2
23
UNITS
µV
µV
µV/°C
nA
nA
dB
dB
V/mV
V/mV
mV
mV
V
V
µA
V
CM
= 0V to 3.6V
V
S
= 3.45V to 12V
V
O
= 0.07V to 3.9V, No Load
V
O
= 0.07V to 3.2V, R
L
= 2k
Output Low, No Load
Output Low, I
SINK
= 1mA
Output High, No Load
Output High, 600Ω to GND
q
q
q
q
q
q
q
q
q
88
100
300
200
85
97
300
200
32
430
4.0
3.2
500
32
430
4.0
3.3
I
S
Supply Current per Amplifier
530
V
S
= 5V, 0V, V
CM
= 0.1V, V
O
= 1.4V, – 40°C
≤
T
A
≤
85°C (Note 7)
SYMBOL
V
OS
∆V
OS
/∆T
I
OS
I
B
CMRR
PSRR
A
VOL
PARAMETER
Input Offset Voltage
Input Offset Voltage Drift
Input Offset Current
Input Bias Current
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
Maximum Output Voltage Swing
CONDITIONS (Note 1)
LT1413N8
LT1413S8
LT1413ACN8
MIN
TYP
MAX
70
300
0.3
0.2
11
99
116
1000
700
20
300
4.2
3.8
360
2.2
1.4
25
LT1413CN8/S8
MIN
TYP
MAX
85
470
110
570
0.4
2.8
0.2
1.7
11
30
82
99
94
116
220
1000
150
700
20
38
300
480
3.9
4.2
3.0
3.8
360
580
UNITS
µV
µV
µV/°C
nA
nA
dB
dB
V/mV
V/mV
mV
mV
V
V
µA
q
q
q
q
q
V
CM
= 0V to 3.4V
V
S
= 3.9V to 12V
V
O
= 0.08V to 3.8V, No Load
V
O
= 0.08V to 3.0V, R
L
= 2k
Output Low, No Load
Output Low, I
SINK
= 1mA
Output High, No Load
Output High, 600Ω to GND
q
q
q
q
q
q
q
q
q
85
98
220
150
38
480
3.9
3.1
I
S
Supply Current per Amplifier
550
3
LT1413
ELECTRICAL CHARACTERISTICS
V
S
=
±15V,
T
A
= 25°C, unless otherwise noted.
SYMBOL
V
OS
I
OS
I
B
PARAMETER
Input Offset Voltage
Input Offset Current
Input Bias Current
Input Voltage Range
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Large-Signal Voltage Gain
Maximum Output Voltage Swing
Slew Rate
Supply Current per Amplifier
V
CM
= 13.5V, – 15V
V
S
=
±2V
to
±18V
V
O
=
±10V,
R
L
= 2k
R
L
= 2k
CONDITIONS (Note 1)
LT1413N8
LT1413S8
LT1413ACN8
MIN
TYP
MAX
75
0.1
8
13.5
13.8
– 15.0 – 15.3
100
117
103
120
1500 5000
±13
±14
0.2
0.4
350
280
0.7
15
LT1413CN8/S8
MIN
TYP
MAX
90
110
0.1
8
13.5
13.8
– 15.0 – 15.3
97
114
100
117
1200 4000
±12.5 ±14
0.2
0.4
350
480
580
0.8
18
UNITS
µV
µV
nA
nA
V
V
dB
dB
V/mV
V
V/µs
µA
CMRR
PSRR
A
VOL
V
OUT
SR
I
S
500
550
V
S
=
±15V,
0°C
≤
T
A
≤
70°C, unless otherwise noted.
SYMBOL
V
OS
∆V
OS
/∆T
I
OS
I
B
A
VOL
CMRR
PSRR
I
S
PARAMETER
Input Offset Voltage
Input Offset Voltage Drift
Input Offset Current
Input Bias Current
Large-Signal Voltage Gain
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Maximum Output Voltage Swing
Supply Current per Amplifier
CONDITIONS (Note 1)
LT1413N8
LT1413S8
(Note 5)
q
q
q
q
q
LT1413ACN8
MIN
TYP
MAX
95
0.4
0.1
9
4000
116
119
±13.9
360
390
2.5
1.0
20
LT1413CN8/S8
MIN
TYP
MAX
110
130
0.5
0.1
9
3000
113
116
±13.9
360
620
720
3.0
1.2
23
UNITS
µV
µV
µV/°C
nA
nA
V/mV
dB
dB
V
µA
V
O
=
±10V,
R
L
= 2k
V
CM
= 13V, – 15V
V
S
=
±2V
to
±18V
R
L
= 2k
q
q
q
q
q
1000
98
101
±12.5
700
94
97
±12.0
550
600
V
S
=
±15V,
– 40°C
≤
T
A
≤
85°C (Note 7)
SYMBOL
V
OS
∆V
OS
/∆T
I
OS
I
B
A
VOL
CMRR
PSRR
I
S
PARAMETER
Input Offset Voltage
Input Offset Voltage Drift
Input Offset Current
Input Bias Current
Large-Signal Voltage Gain
Common-Mode Rejection Ratio
Power Supply Rejection Ratio
Maximum Output Voltage Swing
Supply Current per Amplifier
CONDITIONS (Note 1)
LT1413N8
LT1413S8
q
q
q
q
q
LT1413ACN8
MIN
TYP
MAX
100
0.4
0.2
10
3000
115
118
±13.8
370
460
2.8
1.4
25
LT1413CN8/S8
MIN
TYP
MAX
120
140
0.5
0.2
10
2400
112
115
±13.8
370
700
800
3.3
1.7
30
UNITS
µV
µV
µV/°C
nA
nA
V/mV
dB
dB
V
µA
V
O
=
±10V,
R
L
= 2k
V
CM
= 13V, – 15V
V
S
±2V
to
±18V
R
L
= 2k
q
q
q
q
q
800
97
100
±12.2
500
92
95
±11.8
580
630
The
q
denotes specifications which apply over the full operating
temperature range.
Note 1:
Typical parameters are defined as the 60% yield of parameter
distributions of individual amplifiers; i.e., out of 100 LT1413s typically 120
op amps will be better than the indicated specification.
Note 2:
This parameter is tested on a sample basis only. All noise
parameters are tested with V
S
=
±2.5V,
V
O
= 0V.
Note 3:
This parameter is guaranteed by design and is not tested.
Note 4:
Gain-Bandwidth Product is not tested. It is inferred from the slew
rate measurement.
Note 5:
This parameter is not 100% tested.
Note 6:
At the minimum supply voltage, the offset voltage changes less
than 200µV compared to its value at 5V, 0V.
Note 7:
The LT1413 is not tested and is not quality-assurance sampled at
– 40°C and at 85°C. These specifications are guaranteed by design,
correlation and/or inference from 0°C, 25°C and/or 70°C tests.
4
LT1413

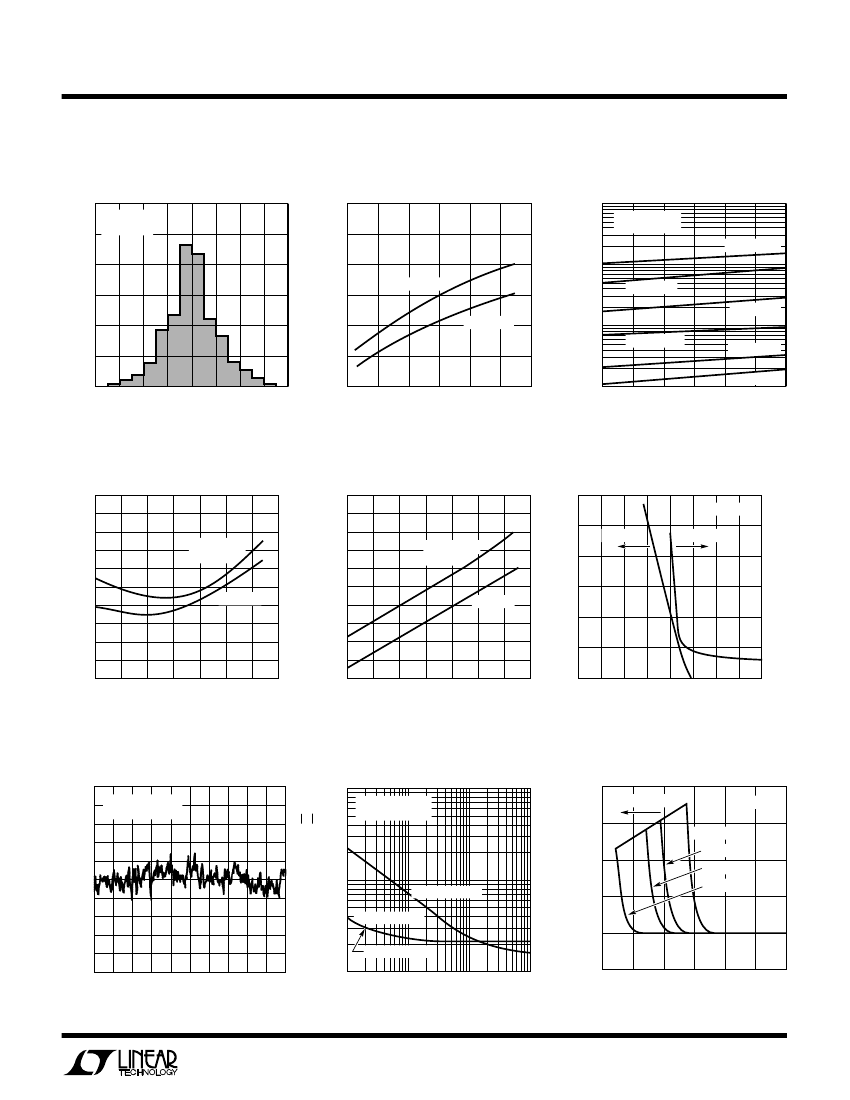

TYPICAL PERFOR A CE CHARACTERISTICS
Distribution of Input Offset Voltage
(In S8 Package)
30
SUPPLY CURRENT PER AMPLIFIER (µA)
25
V
S
= 5V, 0V
T
A
= 25°C
20
15
10
5
0
–400 –300 –200 –100 0 100 200 300 400
INPUT OFFSET VOLTAGE (µV)
LT1413 • TA02
SATURATION VOLTAGE (V)
PERCENT OF UNITS
Input Offset Current vs Temperature
250
–11
COMMON-MODE VOLTAGE (V)
INPUT OFFSET CURRENT (pA)
V
S
= 5V, 0V
V
CM
= 0.1V
150
V
S
=
±15V
INPUT BIAS CURRENT (nA)
200
100
50
0
–40
–20
40
0
20
60
TEMPERATURE (°C)
0.1Hz to 10Hz Noise
1000
VOLTAGE NOISE DENSITY (nV/√Hz)
CURRENT NOISE DENSITY (fA /√Hz)
CHANGE IN OFFSET VOLTAGE (µV)
T
A
= 25°C
V
S
=
±2V
TO
±18V
NOISE VOLTAGE (200nV/DIV)
0
2
4
6
TIME (SECONDS)
U W
80
LT1413 • TA06
Supply Current vs Temperature
10
400
Output Saturation vs Sink
Current vs Temperature
V
+
= 5V TO 30V
V
–
= 0V
I
SINK
= 10mA
1
I
SINK
= 5mA
I
SINK
= 1mA
0.1
I
SINK
= 100µA
I
SINK
= 10µA
I
SINK
= 0
–25
0
25
50
TEMPERATURE (°C)
75
100
350
V
S
=
±
15V
V
S
= 5V, 0V
300
– 50
–25
0
50
25
TEMPERATURE (°C)
75
100
0.01
–50
LT1413 • TA04
LT1413 • TA05
Input Bias Current vs Temperature
15
10
5
0
–5
–10
–15
Input Bias Current vs
Common-Mode Voltage
5
T
A
= 25°C
V
S
=
±
15V
4
V
S
= 5V, 0V
3
2
1
0
–1
– 4 – 6 – 8 –10 –12 –14 –16
INPUT BIAS CURRENT (nA)
LT1413 • TA08
COMMON-MODE VOLTAGE (V)
–10
V
S
= 5V, 0V
V
CM
= 0.1V
–9
V
S
=
±
15V
–8
–7
100
– 40
–20
40
0
20
60
TEMPERATURE (°C)
80
100
0
–2
LT1413 • TA07
Noise Spectrum
200
T
A
= 25°C
V
S
=
±2V
TO
±18V
300
Minimum Supply Voltage
NONFUNCTIONAL
T
A
= – 40°C
100
T
A
= 0°C
T
A
= 25°C
T
A
= 85°C
V
–
= 0V
100
CURRENT NOISE
VOLTAGE NOISE
30
0
1/f CORNER 2Hz
10
1
10
100
FREQUENCY (Hz)
1k
LT1413 • TA10
8
10
LT1413 • TA09
2
3
4
POSITIVE SUPPLY VOLTAGE (V)
5
LT1413 • TA11
5
京公网安备 11010802033920号
EEWORLD
