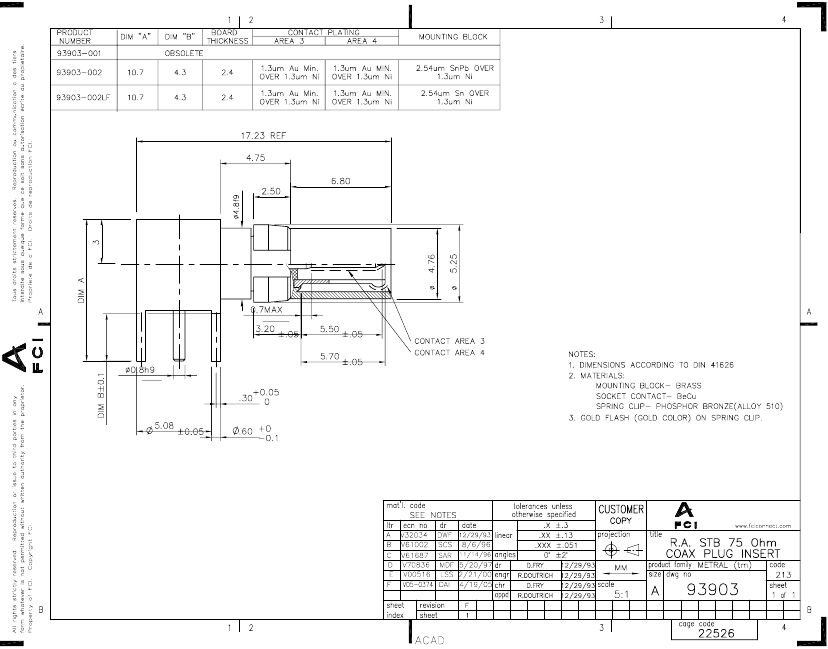

93903-001 Overview

RF Connector, Male, Board Mount, Solder Terminal, Plug

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF CONNECTOR
Contact point gender	MALE
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	93903
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER

PDM: Rev:F

STATUS:

Released

Print

	93903-001	93903-002	93903-002LF
Description	RF Connector, Male, Board Mount, Solder Terminal, Plug	RF Connector, Male, Board Mount, Solder Terminal, Plug	RF Connector, Male, Board Mount, Solder Terminal, Plug, LEAD FREE
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	unknown	compliant
Body/casing type	PLUG	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω	75 Ω
Connector type	RF CONNECTOR	RF CONNECTOR	RF CONNECTOR
Contact point gender	MALE	MALE	MALE
Coupling type	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	93903	93903	93903
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
Termination type	SOLDER	SOLDER	SOLDER
ECCN code	-	EAR99	EAR99
Contact to complete cooperation	-	GOLD (51) OVER NICKEL (51)	GOLD (51) OVER NICKEL (51)
Contact completed and terminated	-	TIN (100) OVER NICKEL (51)	TIN LEAD (100) OVER NICKEL (51)
JESD-609 code	-	e3	e0
