Ordering number : ENN8193
2SK3850
N-Channel Silicon MOSFET
2SK3850
Features
•
•
•
General-Purpose Switching Device
Applications
Best suited for motor drive.
Low ON-resistance.
Low Qg.
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Drain-to-Source Voltage
Gate-to-Source Voltage
Drain Current (DC)
Drain Current (Pulse)
Allowable Power Dissipation
Channel Temperature
Storage Temperature
Symbol
VDSS
VGSS
ID
IDP
PD
Tch
Tstg
PW≤10µs, duty cycle≤1%
Tc=25°C
Conditions
Ratings
600
±30
0.7
2.8
1.0
15
150
--55 to +150
Unit
V
V
A
A
W
W
°C
°C
Electrical Characteristics
at Ta=25°C
Parameter
Drain-to-Source Breakdown Voltage
Zero-Gate Voltage Drain Current
Gate-to-Source Leakage Current
Cutoff Voltage
Forward Transfer Admittance
Static Drain-to-Source On-State Resistance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Symbol
V(BR)DSS
IDSS
IGSS
VGS(off)
yfs
RDS(on)
Ciss
Coss
Crss
Conditions
ID=1mA, VGS=0
VDS=600V, VGS=0
VGS=±30V, VDS=0
VDS=10V, ID=1mA
VDS=10V, ID=0.35A
VGS=10V, ID=0.35A
VDS=20V, f=1MHz
VDS=20V, f=1MHz
VDS=20V, f=1MHz
Ratings
min
600
100
±100
2.5
280
560
14
96
29
16
18.5
3.5
typ
max
Unit
V
µA
nA
V
mS
Ω
pF
pF
pF
Marking :K3850
Continued on next page.
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
31005PB TS IM TA-101202 No.8193-1/4
2SK3850
Tc= --25
°
C
0.50
0.45
0.40

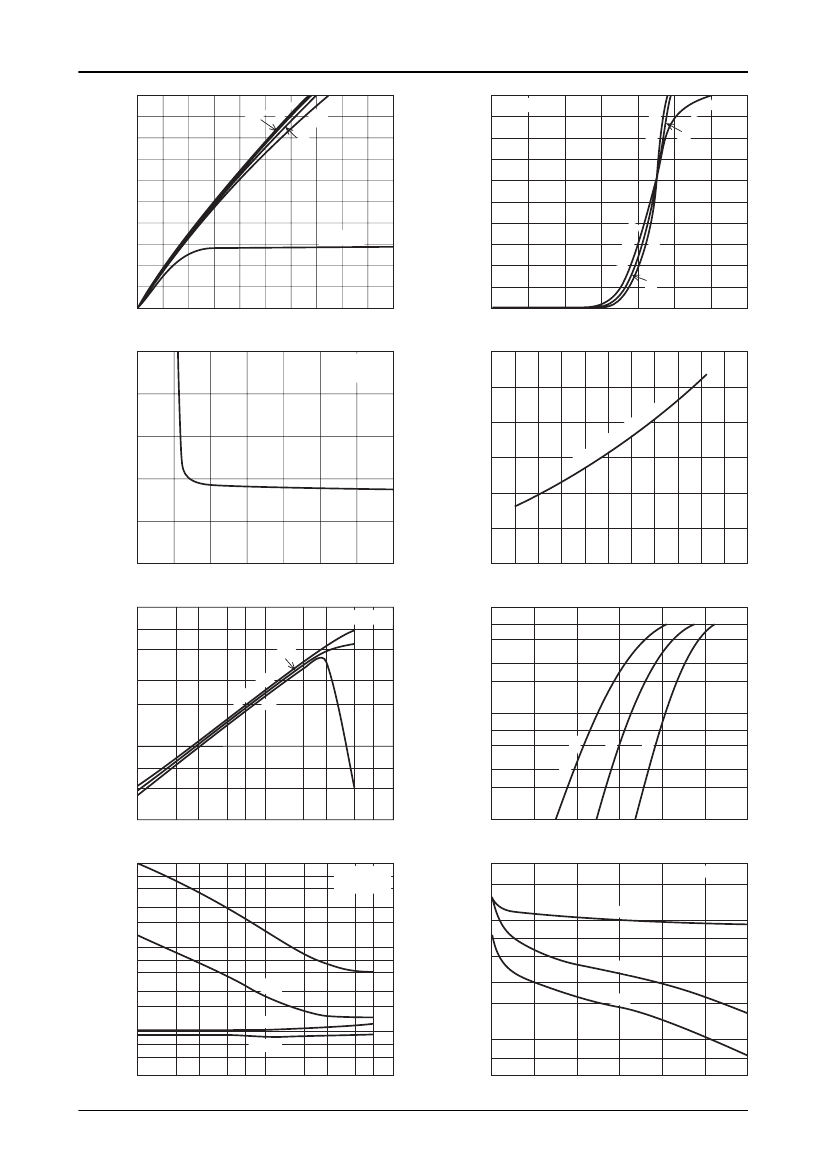

ID -- VDS
