2484-09 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 2484-09

2484-09: DescriptionKeylock Switches SW,ROT,MAST DISC,2POS,LEVER; CategoryTopical application Mechanical and electrical/engineering/automation; File Size345KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2484-09 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2484-09	-	-	View	Buy Now

2484-09 Overview

Keylock Switches SW,ROT,MAST DISC,2POS,LEVER

2484-09 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Keylock Switches
RoHS	Details
Contact Form	SPST
Switch Function	OFF - ON
Current Rating	175 A
Termination Style	Stud
Key Type	Diecast Lever
Indexing	45 deg
Number of Positions	2 Position
Housing Material	Steel
Illuminated	Non-Illuminated
Packaging	Bulk
Contact Plating	Copper
Number of Decks	1 Deck
Number of Poles per Deck	2 Pole
Factory Pack Quantity	1

Preview

Download Datasheet

View All

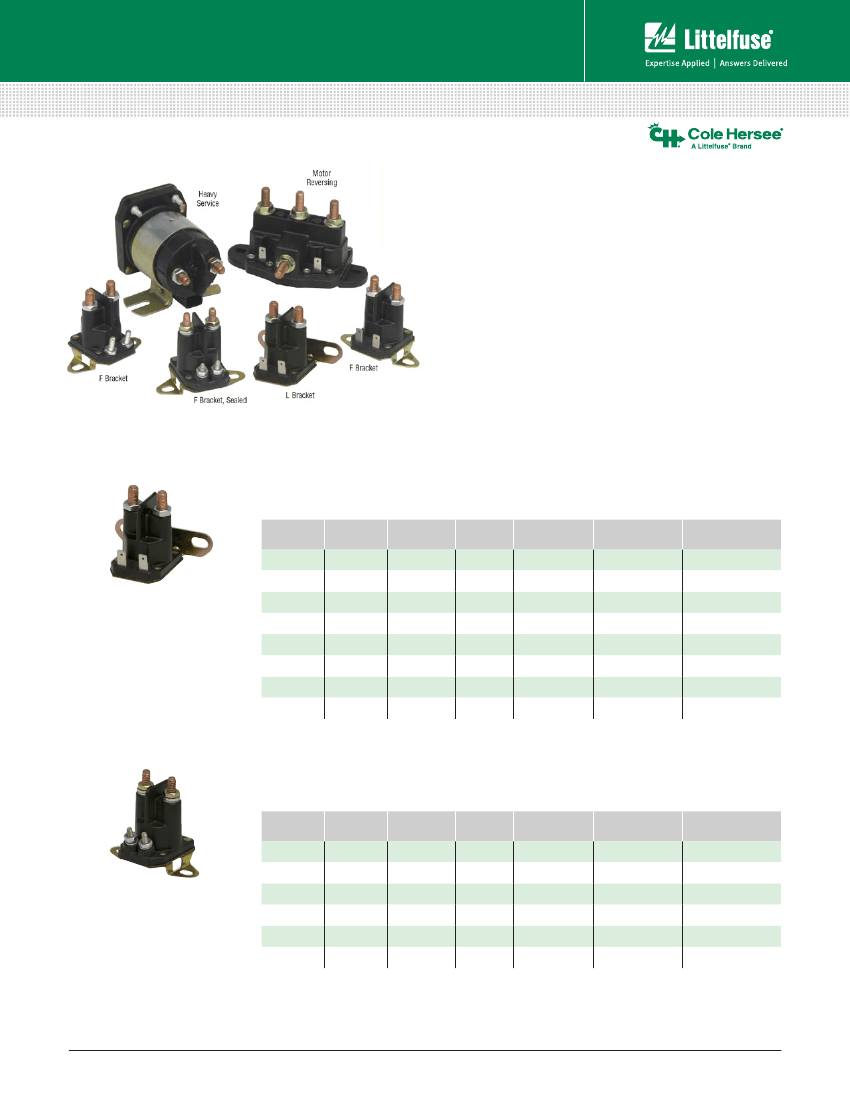

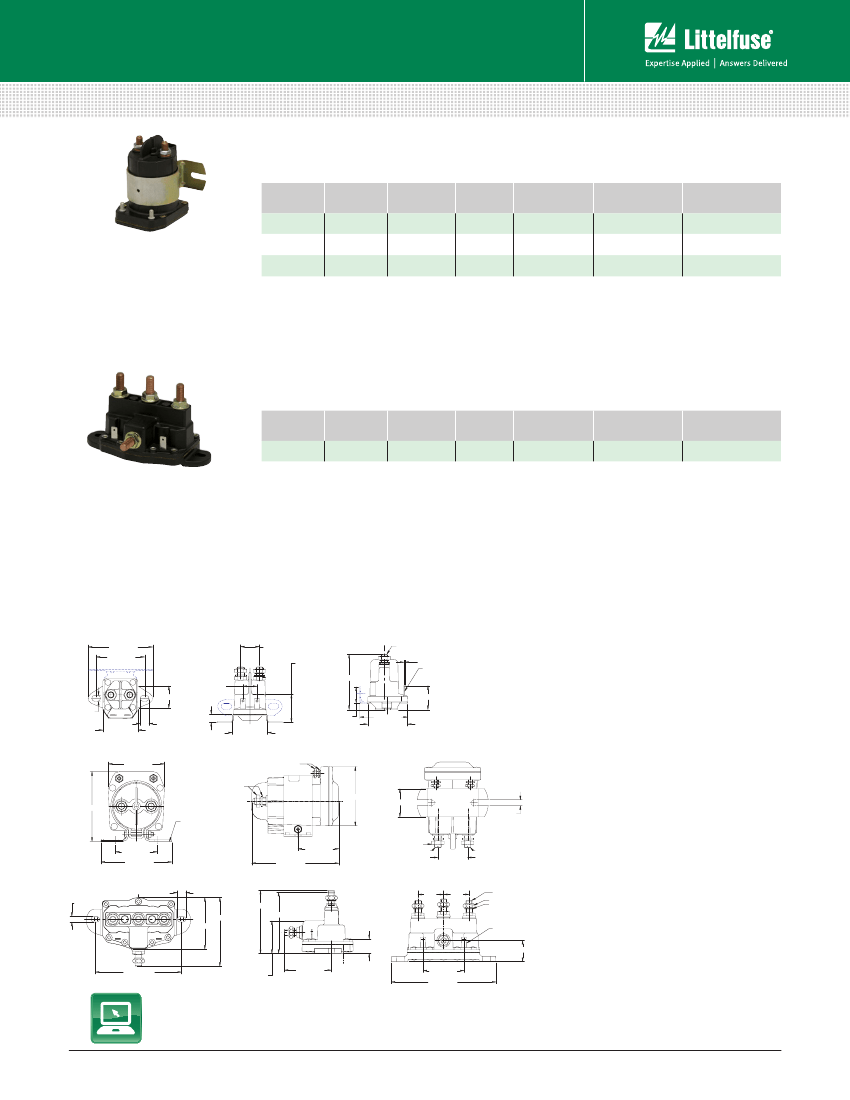

Product Datasheet

PLASTIC BODY SOLENOIDS

Description

Sealed solenoids are protected against ingress of moisture

or contaminants such as oil or gasoline. Maximum

operating voltage 14V DC. Cycle life: 10,000 min.

Features and Benefits

• Glass-filled nylon construction. Lightweight, durable

and resistant to corrosion.

• Perfect for a wide variety of applications.

• Resistant to high or low temperatures (-40° C to 60° C)

• Many configurations: multiple mountings and

terminals; sealed/unsealed; 12V – 48V.

Intermittent Duty Solenoids, 200A

Applications: For starting small engines, including lawn tractors, golf carts and sweepers.

PART

NUMBER

24512-03

24512-13

VOLTAGE

12V

CONTACT

Copper

BRACKET

LARGE STUDS COIL TERMINALS

5/16”-24

1/4”-20

2 blades

2 10-32 studs

1 10-32 stud

2 8-32 studs

1 8-32 stud

COIL TYPE

Insulated

Grounded

Insulated, sealed

Grounded, sealed

• SPST, normally Open contacts.

• 200A make and break, 5 secs On, 5 secs

Off. 300A inrush. Max On time 20 secs.

• Sealed solenoids: 200A make and break,

5 secs On, 5 secs Off. 500A inrush,

Max On time: 20 secs.

• Allow at least 40 secs cooling after max

On time.

24612-03

24612-13

24612-G13

24712-S6

24712-S7

24712-GS7

Continuous Duty Solenoids, 100A

Applications: For starting small engines, including lawn tractors, golf carts and sweepers.

PART

NUMBER

24512-10

24612

VOLTAGE

12V

24V

36V

CONTACT

Silver

BRACKET

LARGE STUDS COIL TERMINALS

5/16”-24

2 blades

2 10-32 studs

1 10-32 stud

2 10-32 studs

COIL TYPE

Insulated

Grounded

Insulated

• SPST, normally Open contacts.

• 100A make and break, 400A inrush.

24612-10

24612-G10

24624-10

24636

12V: maximum operating voltage 14V DC. Cycle life: 50,000 min.

24V: maximum operating voltage 27V DC. Cycle life: 50,000 min.

36V: maximum operating voltage 36V DC. Cycle life: 50,000 min.

Datasheet Replaces Hotfeed Number D-596

littelfuse.com

1 of 2

Rev: 120116
