ADA compliant, tactile keypad for
audible system navigation
CORPORATE
RETAIL
CIVIC
TM

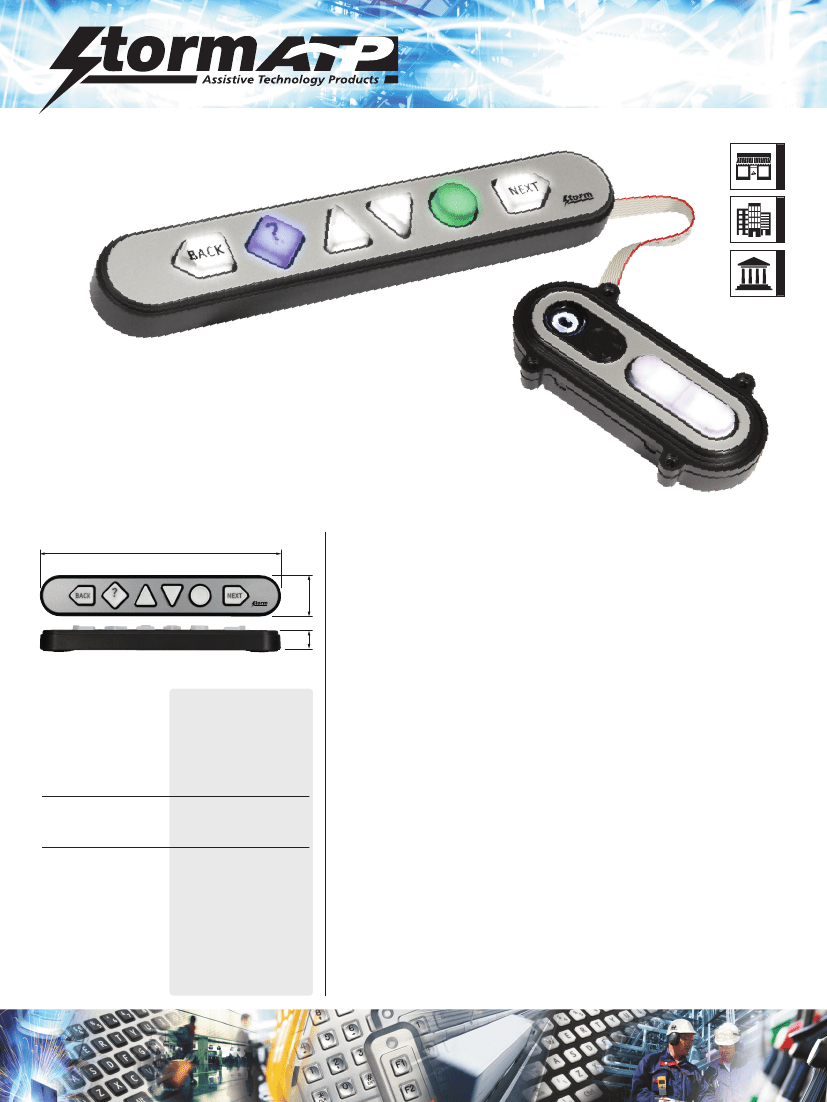

Storm Assistive Technology Products provide improved
accessibility for those with impaired vision, restricted
mobility or limited fine motor skills.
Kiosks, ATMs, ticketing machines and voting terminals usually present information about
available products and services via a visual display or touch screen. Nav-Bar
™
is a highly tactile
interface that improves accessibility, making audio navigation and selection of screen based menus
possible. An audio description of available menu options is transmitted to the user through a headset,
handset or cochlea implant. When the desired menu page or menu option is located it can be selected by
the press of a distinctive tactile button. Successful implementation of the Nav-Bar
™
requires a compliant host
application featuring synthesized or recorded human voice audio-tags.
208
Nav-Bar
™
was developed in association with the Trace Research & Development
Center with support from the University of Wisconsin. Nav-Bar
™
is a compliant
tactile interface device for use as part of an ADA audible menu navigation
system or EZ-Access
®
implementation.
37
• Space efficient horizontal format for use with contemporary
touch-screen kiosks.
• Easy to navigate and makes audio references to a key’s position and function
easier to understand. For example: The circular shaped ‘select’ key is the
second key from the right.
• Internal colour coded illumination makes location of individual keys much
easier for those with partial vision.
• The keytop’s distinctive shape and tactile symbols provide the primary means
of identifying a key’s specific function.
• The intensity of keytop illumination can be adjusted or turned off
when not in use.
•
Each keytop is illuminated by a dedicated LED light source. Each LED is
independently controllable.
• By use of the Nav-Bar
™
utility software, default illumination status and
‘wake-up’ behaviour can be selected. USB key-press codes can also be changed.
• Optional Audio-Module includes sound volume controls and an illuminated
jack plug socket for headset connection. (Audio-Module supplied separately).
• The Audio-Module can be positioned separately from the Nav-Bar
™
to optimize system ergonomics.
• Nav-Bar
™
is connected to the Audio-Module via a ribbon cable (supplied).
• Nav-Bar
™
is connected to the host system via a single USB cable
(supplied separately).
Storm, Storm ATP, Storm Interface, Nav-Bar and Audio-Module are trademarks of Keymat Technology Ltd.
All rights reserved, EZ Access
®
is a trademark of the Wisconsin Alumni Research Foundation.
16
All dimensions in mm
Performance
Vibration & Shock:
Impact Resistance:
ETSI 6M3
IK09 (10J Rating)
(when correctly installed
to a panel top surface)
IP65 (when correctly installed
to a panel top surface)
>4
million cycles per key
CE / FCC / UL
Sealing:
Operational Key Life:
Certification:
Environmental
Operational temperature:
Weather Resistance:
-20ºC to +70ºC (dry)
IP65 (when panel mounted)
Specification
Rating:
Connection:
Audio:
Ground:
USB Cable
Interconnect Cable
5V +/- 0.25V (USB 2.0)
Mini USB B Socket
3.5mm Audio Jack Socket
(Illuminated)
150mm ESD ground
wire fitted
Not included
0.75m cable (Nav-Bar to
Audio-Module) included
with Audio-Module
Nav-Bar
Nav-Bar
™

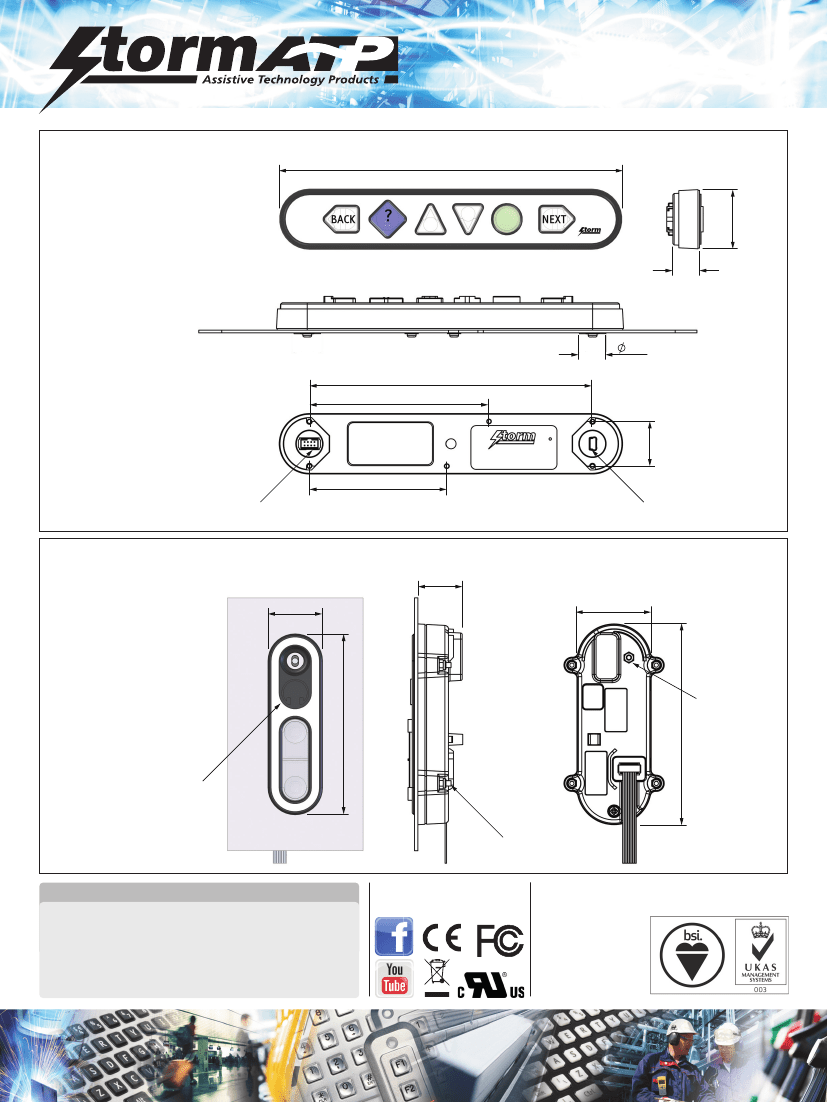

Dimensional Details
Top View
208
TM
End View
Side View
(shown with 2mm thick panel)
Fix with Qty 6,
M3 x 8 panhead screws
16
Rear View
171
108.5
16
Socket for 750mm Link Cable
(ferrite is located at Nav-Bar
™
end of cable)
83
Audio-Module
Dimensional Details
Top View
Side View
26
Rear View
44
32.5
27
Mini-B USB socket
for connection to host
Note that the raised
headphone symbol
will be rotated
90° clockwise for
horizontal version
M3 thread
ASD ground
to case
(150mm
ground
wire not
shown)
107.5
M3 x 20
weld stud
4 places
Whilst every effort is made to
ensure details are correct at time
of print, specifications are subject
to change without notice.
Part Numbers
(Vertical installation)
For more information & to order:
Nav-Bar
™
Audio-Module for Nav-Bar
™
& Interconnect Cable
Audio-Module for Nav-Bar
™
& Interconnect Cable
Spare Interconnect Cable 0.75m
USB Cable Mini-B to Type A 0.95m (not included)
EZB6-43000
EZB2-40500
EZB2-405H0
EZB2-01
4500-01
www.storm-interface.com
Storm Interface products include
technology protected by international
patents and design registration.
All rights reserved.
Storm is a trademark
of Keymat Technology Ltd
Storm Interface is a trading name
of Keymat Technology Ltd
(Horizontal installation)
Nav-Bar Dec 2016
